Hakko FX971 Compact Soldering Station
SKU: HFX971-61
FX971-61
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery

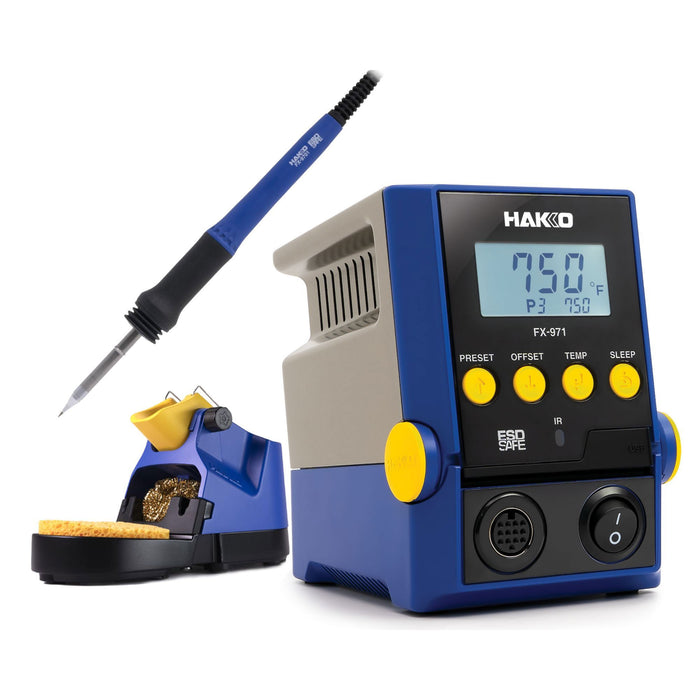

Hakko FX971 Compact Soldering Station
A compact and high power station with space-saving design.
With 100 W of power in a compact body, it performs a wide range of soldering works.
With improved sensor sensitivity and a design that smoothly transfers the heat from the heater to the tip, the tip temperature has become stable and it ensures better soldering.
The system enables soldering in a shorter time and improves work efficiency.
It shows information such as set temperature, tip's sensor temperature, and preset setting, clearly and widely. The viewing angle is wide, and the high-brightness display provides high visibility.
Various settings can be easily configured using four buttons.
Tilt mechanism for easy viewing and operation of the screen display, depending on the installation location, e.g., on or under the workbench or on the rack.
The well-selected line-up of soldering tips. Soldering that was previously impossible or time-consuming can be improved with the tips in new shapes. (note tips not included).
Automatic calibration and correction can be completed by sending the measured temperature value of the thermometer (FG-100B/FG-101B), via infrared.
By connecting the station to the PC, the tip set temperature, calibration/correction, and the temperature history of the tip during operation are recorded on the PC, enabling management with zero human error.
The built-in sensor of the tip inside makes it possible to use auto-sleep and auto-shutoff functions without connecting the station and the iron holder, and it helps to lay out the station and iron holder freely in the working space.
he newly designed iron holder allows easy and safe tip replacement with a tip removing attachment and tip insertion holder.
Soldering iron stays safe even without an iron holder base during maintenance.
NOTE: T39 TIPS NOT INCLUDED - AVAILABLE TO PURCHASE HERE
Discover the Hakko FX971 Compact Soldering Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
Station
-
Handpiece (FX-9701)
-
Iron holder (FH-215, with cleaning sponge and wire)
-
USB cable
-
Power cord
-
Instruction manual
NOTE: TIPS ARE NOT INCLUDED
| Model No. | FX-971 |
|---|---|
| Power consumption | 100 W |
| Temperature range | 50 to 450℃ |
| Temperature stability | ±3℃ (At idle temperature) |
Station
| Output voltage | AC 24 V |
|---|---|
| Dimensions | When tilted : 93 (W) × 126 (H) × 133 (D) mm When not tilted : 93 (W) × 126 (H) × 123 (D) mm |
| Weight | 1.2 kg |
Soldering Iron
| Power consumption | 95 W (24 V) |
|---|---|
| Tip to ground resistance | ＜2 Ω |
| Tip to ground potential | ＜2 mV |
| Heating element | Composite heater |
| Cord length | 1.2 m |
| Total length | 206 mm (with T39-D24 tip) |
| Weight | 31 g (with T39-D24 tip) |
* Total length and weight are measured without cord.
