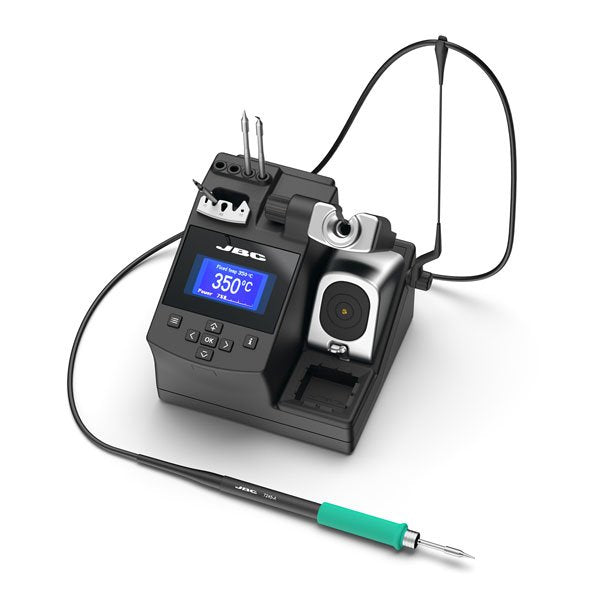

JBC Compact Soldering Station 230V (Cartridges Not Included)
SKU: JBC-CD-2BQF
CD-2BQF
DESCRIPTION
Contents
Specifications
Shipping & Delivery
JBC Compact Soldering Station 230V (Cartridges Not Included)
For general electronics application.
It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:
- JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times.
- Complete Tip Cleaning System, with exclusive fast and safe Cartridge Exchanger.
- Connectivity: Fume Extractor, Data Download, Software Updates, Traceability
Includes T245 General Purpose Handle that works with our wide range of C245 Cartridges
NOTE: CARTRIDGES NOT INCLUDED - available to purchase HERE
Discover the JBC Compact Soldering Station 230V (Cartridges Not Included) at Mektronics Australia – your trusted source for quality tools and equipment!
-
Modular System: CD with Tip Cleaning System
-
Tools: 245-A General Purpose Handle
-
Cartridges: Not included
-
Nominal power: 175W
-
Peak power (Tool): 130W
-
Selectable temperature: 90 - 450 °C / 190 - 840 °F
-
Idle temp. stability (still air): ±1.5 ºC / ±3 ºF (Meets and exceed IPC J-STD-001)
-
Temperature accuracy: ±3 % (Using reference cartridge)
-
Temp. adjustment: ±50 ºC / ±90 ºF (Through station menu setting)
-
Tip-to-ground resistance: <2 ohms
-
Tip-to-ground voltage: <2 mV RMS
-
USB-B: PC communications
-
FAE / Robot connector: Remote control or FAE Fume Extractor connection
-
Earthing fuse: F 1.25A
-
ESD safe: Meet ANSI/ESD S20.20-2021
Weight & Dimensions
-
Control Unit: 170 x 176 x 145mm / 2.74kg
-
Package: 234 x 234 x 258mm / 3.34kg
