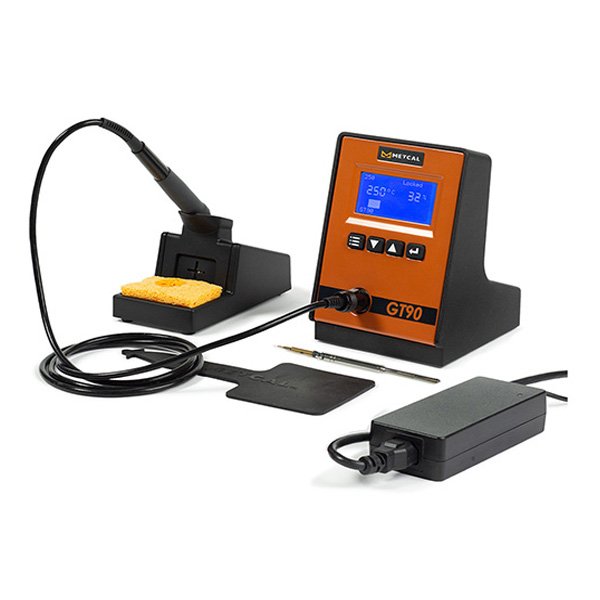

Image for Illustrative Purposes Only

Metcal 90 Watt GT Soldering System (Station, Adapter, T4 Hand-Piece & Workstand)
SKU: METGT90-HP-T4
GT90-HP-T4
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery
Metcal 90 Watt GT Soldering System (Station, Adapter, T4 Hand-Piece & Workstand)
GT90 Soldering System is an adjustable temperature station that uses inductive technology as the heating mechanism. The complete system includes a soldering station with an external Power supply, a hand-piece, and a workstand to support a variety of soldering and rework applications using the associated tips and Cartridges.
The GT adjustable temperature technology has a fast and repeatable heating mechanism and encompasses the convenience of temperature adjustment with the stability and performance of inductive heating. This gives the GT systems a significant performance advantage with much faster time to temperature, thermal recovery and temperature stability during soldering versus competitors in the same product category.
GT90 is a single port soldering station with best in class performance, 90 watts of Power, and ideal for single iron applications on the production line. The GT90 is supplied with a replaceable 90W external Power supply allowing for a more compact design to save space on the bench and improve the quality and life of the system.
Discover the Metcal 90 Watt GT Soldering System (Station, Adapter, T4 Hand-Piece & Workstand) at Mektronics Australia – your trusted source for quality tools and equipment!
-
Inductive heating systems offering best in class performance
-
Adjustable Temperature
-
Intuitive 4 button user interface
-
Wide variety of Cartridge and tip options
-
Compact to minimize the workbench footprint
-
Programmable password lock-out and temperature range limits
-
Standby and sleep settings to increase tip life
-
USB port to Power accessories and firmware updates
-
GT90 Power Station with Adapter
-
GT-HP-T4UF Hand-Piece
-
GT-HC-T4 Heater Cartridge
-
GT-WS Work Stand
Note: Tips sold separately - compatible tips available to purchase HERE
Input Line Voltage: |
100 - 240 VAC, grounded circuit |
Input Frequency: |
50/60 Hz |
Power Output: |
90 W max. |
Output Line Frequency: |
465 kHz |
Heating Method: |
Inductive Heating |
Display |
2.8" Monochrome LCD Display |
Controls: |
4 tactile buttons |
Operation: |
Single Port |
Tip-to-Ground Potential: |
< 2 mV |
Tip-to-Ground Resistance: |
< 2 Ohm |
Ground Detection: |
Permanent |
Surface Resistivity: |
105 Ω - 109 Ω, ESD-save |
Idle Temperature Stability: |
± 1.1 °C in still air |
Tip Temperature Accuracy: |
Meets or Exceeds IPC J-STD-001 |
Communications: |
1 x USB A connector |
Warranty: |
1 year |
Dimensions (w x d x h): |
110 x 125 x 160 mm (4.3" x 4.9" x 6.1") |
Weight: |
1.68 kg (3.7 lb.) |
Certiï¬cation: |
CE, TUV |
Power-Connector: |
Mini-DIN |
Ambient Operating Temperature: |
10 to 40 °C |
Maximum Enclosure Temperature: |
55 °C |
