Hakko FX-972 New Generation Dual Port Compact
SKU: HFX972-61
FX972-61
DESCRIPTION
Features
Includes
Compatible Items
Shipping & Delivery

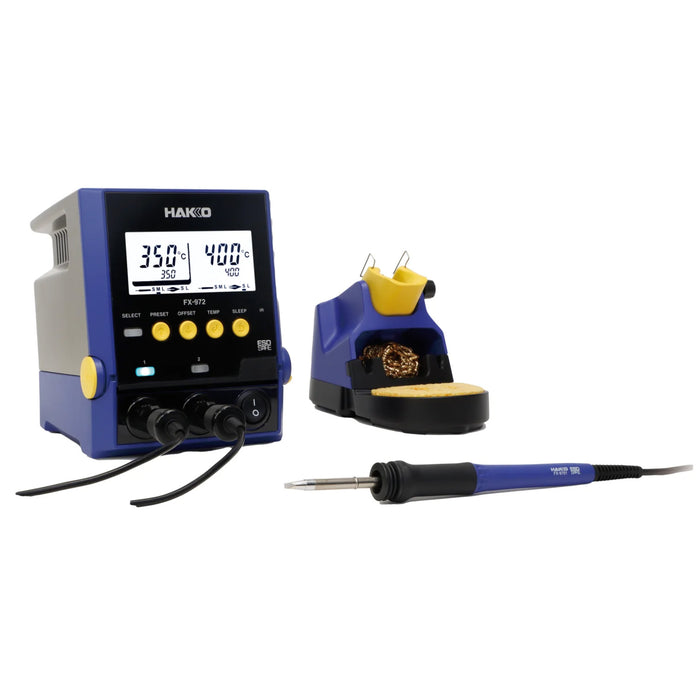

Hakko FX-972 New Generation Dual Port Compact

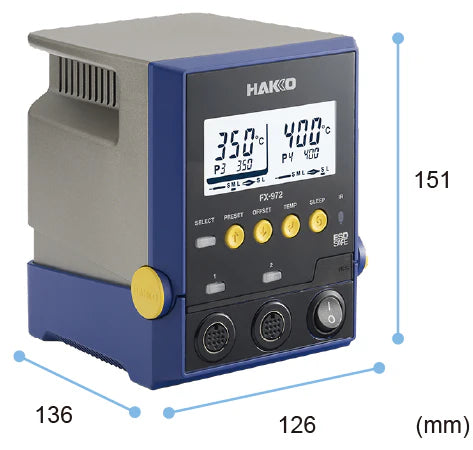

Compact and high power station with space-saving design: With 200 W of power in a compact body, it performs a wide range of soldering works.
New Composite Tip (Patented): With improved sensor sensitivity and a design that smoothly transfers the heat from the heater to the tip, the tip temperature has become stable and it ensures better soldering.
Cycle Time Reduced by Approx 40%: It enables soldering in a shorter time and improves work efficiency.
High Visible Display: It shows information such as set temperature, tip's sensor temperature, and preset setting, clearly and widely. The viewing angle is wide, and the high-brightness display provides high visibility.
Multiple Connectivity: 8 different applications can be used without specifying the connecting port.

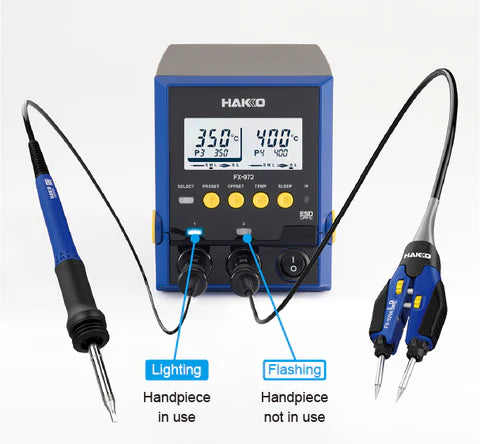

Priority channel: A built-in sensor detects the handpiece in use and automatically switches channels. The unused handpiece stands by at the set temperature.

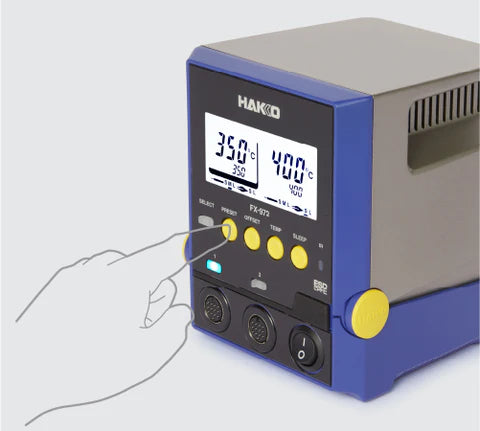

Intuitive Operation: Various settings can be easily configured using four buttons.

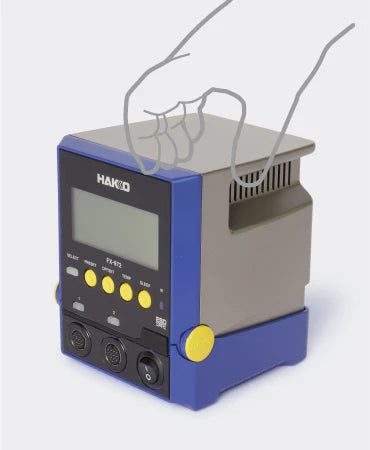

Adjustable display angle for better visibility and operation: Tilt mechanism for easy viewing and operation of the screen display, depending on the installation location, eg. on or under the workbench or on the rack.
Tips for any soldering at various scenes: The well-selected line-up of soldering tips. Soldering that was previously impossible or time-consuming can be improved with the tips in new shapes.
Infrared Communication: Automatic calibration and correction can be completed by sending the measured temperature value of the thermometer (FG-100B/FG-101B), via infrared.
Software: By connecting the station to the PC, the tip set temperature, calibration/correction, and the temperature history of the tip during operation are recorded on the PC, enabling management with zero human error.
Auto-sleep / Auto-shutoff: The built-in sensor of the tip inside makes it possible to use auto-sleep and auto-shutoff functions without connecting the station and the iron holder, and it helps to lay out the station and iron holder freely in the working space.

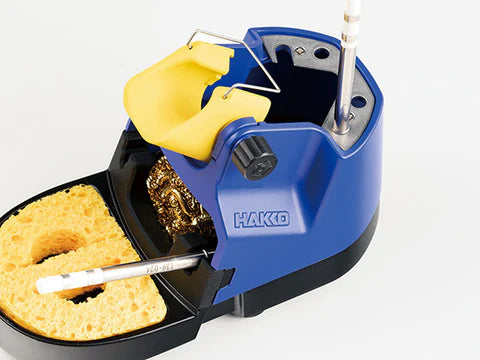

Iron Holder

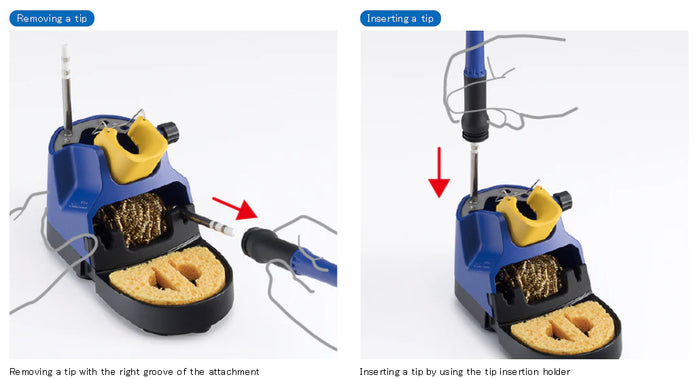

Safe Tip Replacement: The newly designed iron holder allows easy and safe tip replacement with a tip removing attachment and tip insertion holder.

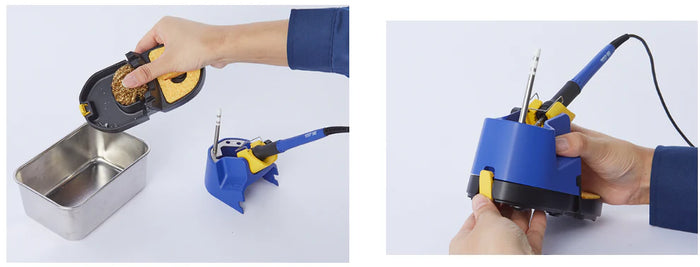

Self-standing iron holder without holder base: Soldering iron stays safe even without an iron holder base during maintenance.
NOTE: COMPATIBLE WITH HT39 SERIES CARTRIDGES - NOT INCLUDED CAN BE PURCHASED HERE
Discover the Hakko FX-972 New Generation Dual Port Compact at Mektronics Australia – your trusted source for quality tools and equipment!
-
200W dual port station
-
15° angle tilt
-
Over 60 different tip sizes and shapes
-
Built-in sensor to detect if handpieces are in use
-
Wide temperature range of 50°C to 450°C (500°C when connected to heavy duty iron)
-
Wireless IR Offset and Control Software
NOTE: TIPS NOT INCLUDED CAN BE PURCHASED HERE
-
Station
-
Handpiece (FX-9701)
-
Iron holder (FH-215, with cleaning sponge and wire)
-
Colour band [qty 2]
-
USB cable
-
Power cord
-
Instruction manual
NOTE: COMPATIBLE WITH HT39 SERIES CARTRIDGES - NOT INCLUDED CAN BE PURCHASED HERE
FX-972 accepts the following applications.
-
Soldering iron FX-9701 (included in FX-972)
-
N2 Soldering Iron FX-9702
-
Micro soldering iron FX-9703
-
Micro N2 soldering iron FX-9704
-
Hot tweezer FX-9705
-
Micro hot tweezers FX-9706
-
Heavy-duty soldering iron FX-9707
-
Heavy-duty N2 soldering iron FX-9708
- HT39 Cartridge Series
