Metcal MFR Dual Port (2) Tip Handpiece System MFR-2222
SKU: METMFR-2222
MFR-2222
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery

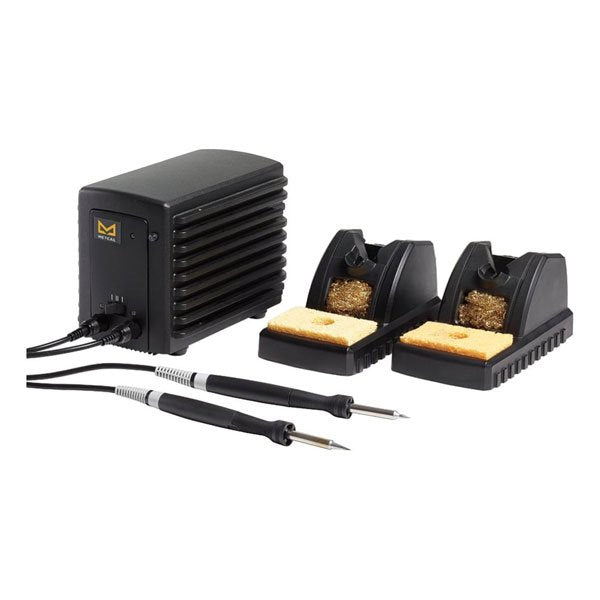

Metcal MFR Dual Port (2) Tip Handpiece System MFR-2222
The MFR-2200 Dual Output Series is designed to minimize your training investment, maximize application solutions, and increase productivity. This series is compact and versatile and can be used with either one or two soldering tips, cartridges, or tweezer handpieces. A shop air desoldering option is also available as an upgrade kit.
Discover the Metcal MFR Dual Port (2) Tip Handpiece System MFR-2222 at Mektronics Australia – your trusted source for quality tools and equipment!
-
SmartHeat® Technology provides exceptional power for high thermal demand applications
-
Single or Dual simultaneous outputs allow for single/dual hand-piece use
-
Five hand-pieces available for increased application solutions for soldering
-
Desoldering (upgrade kit MX-UK5) and rework on one system
-
Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility
-
Ergonomic handpieces for operator safety and comfort
- MFR-PS2200 (2) MFR-H2-ST2 Hand-Piece (2) WS1 Workstand
| Input Line Voltage: | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption: | 130 W max. |
| Output Power: | Variable, 2 x 60 W max.* |
| Output Frequency: | 450 KHz |
| Heating Method: | Induction, smartHeatR |
| Connections: | Dual Port |
| Power Supply Dim. W x D x H: | 120 x 200 x 152.5 mm (4.7" x 7.9" x 6") |
| Power Supply Weight: | 2.97 kg (6.55 lb) |
| Certification / Marking: | cTUVus, CE |
| Tip-to- Ground Potential: | < 2 mV |
| Tip-to-Ground Resistance: | < 2 Ohm |
| Ground Detection: | Permanent |
| Surface Resistivity: | 105 - 109 Ohm |
| Idle Temperature Stability: | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy: | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 1 year |
| Ambient Operating Temp: | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp: | 55 °C (131 °F) |
| Solder-Pen Specification | Solder-Pen |
| Hand-Piece Cable Length: | 122 cm (48”), burn proof, ESD-safe |
| Hand-Piece - RF Connector: | 8-pin circular DIN |
