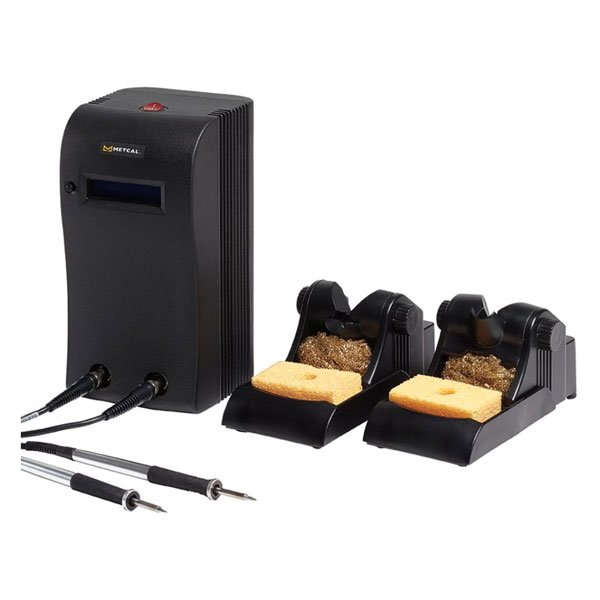

Metcal MX-5211 Soldering & Rework System with 2 Hand Pieces
SKU: METMX-5211
MX-5211
DESCRIPTION
Features & Benefits
Contents
Specifications
Resources
Shipping & Delivery
Metcal MX-5211 Soldering & Rework System with 2 Hand Pieces
The MX-5200 Soldering, Desoldering, and Rework Series has increased power and process control, with dual-simultaneous ports for two users or a single user with dual applications.
The MX-5200 can be operated with two handpieces dynamically sharing the 80-watt output power based on demand, adding even more application flexibility and speed.
FAST TIME-TO-RECOVERY:
Delivers increased production rates and throughput no matter the application. The MX-5200 super-charged power supply seamlessly tackles the challenges of high-mass components, multilayered boards, and lead-free solders.
SMARTHEAT® PROCESS CONTROL:
The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.
Discover the Metcal MX-5211 Soldering & Rework System with 2 Hand Pieces at Mektronics Australia – your trusted source for quality tools and equipment!
-
A built-in Net Power Meter displays a graphical and numerical representation of the power applied to the cartridge.
-
User Programmable Power Save Mode: the time to enter Power Save Mode is adjustable from 10 to 120 minutes.
-
Ground Fault Interrupt: AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system.
-
Universal Power Supply: automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance.
-
Full compatibility with existing and previous MX upgrade kits, tip-cartridges, handpieces, and accessories.
-
MX-PS5200 Power Supply
-
2 x MX-H1-AV Advanced Handpiece for MX Systems
-
2 x MX-W1AV Tip Saver Workstand for Advanced Handpiece
-
2 x MX-CP1 Cartridge Removal Pad
-
Tips/Cartridges sold separately
| Input Line Voltage: | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption: | 125 W max. |
| Output Power: | 80 Watts max. per channel at 22 °C ambient temperature |
| Output Frequency: | 13.56 MHz |
| Heating Method: | Induction, SmartHeat® |
| Connections: | Dual Port, switchable |
| Power Supply Dim. W x D x H: | 12.1 cm (4.8") x 13.0 cm (5.1") x 23.5 cm (9.3") |
| Power Supply Weight: | 7.4 lbs (3.35 kg) |
| Certification / Marking: | cTUVus, CE |
| Tip-to- Ground Potential: | < 2 mV |
| Tip-to-Ground Resistance: | < 2 Ohm |
| Idle Temperature Stability: | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy: | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 5 years |
| Ambient Operating Temp: | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp: | 55 °C (131 °F) |
| Hand-piece Cable Length | L=122 cm (48"), burn proof, ESD safe |
| Hand-piece Connector | F connector |
| Wordstand Dimensions W x D x H | 8.6 cm (3.4") x 19.1 cm (7.5") x 8.3 cm (3.3") |
| Weight of the workstand | 1.05 lbs (.476 kg) |
