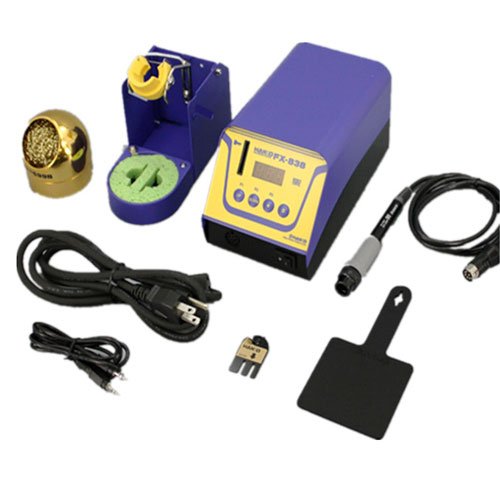

Hakko FX-838 Heavy Duty Soldering Station
SKU: HFX838-21
FX838-21
Features
Includes
Specifications
Resources
Shipping & Delivery
High Power 150W Soldering Station enjoys the various applications from large to fine components.
- Great thermal recovery improves the soldering environment
- It allows soldering at lower set temperatures.
- It can shorten the soldering working time, which minimize concern about the influence of heat on components and tip life.
- It is suitable not only for high-power required working condition such as soldering multilayer boards or shield cases but for microsoldering.
- Operate at Maximum Temperature of 500 Degrees.
- It enables soldering power-supply boards easily because high power 150W hand piece can provide great thermal recovery.
- High Power but Safety design of low voltage.
- This unit has not only high power but also low output voltage (27V) , which is lower than the world safety output voltage of 30V.
- Easy to replace tips.
- Cartridge style Integrated heater makes thermal conductivity improve.
- Available 20 different shape as replacement, some of which are suitable for fine components.
- Temperature preset mode saves time and effort.
- It allows you to input three frequently-used temperatures in advance and recall them with one push of a button.
- It saves the troublesome setting condition, tailored to the tip-shape, component and work.
Discover the Hakko FX-838 Heavy Duty Soldering Station at Mektronics Australia – your trusted source for quality tools and equipment!
- Soldering station (HAKKO FX-838)
- Soldering iron (HAKKO FX-8301)
- Control card
- Power cord
- Iron holder (With cleaning sponge and 599B)
- Connecting cable
- Heat resistant pad
- Instruction Manual
N.B. A soldering tip is not included with this product. The tips (T20 series) of desired shape can be purchased separately.
|
|
|
|---|---|
| Power consumption | 158W |
| Temperature range | 200 to 500ºC |
| Temperature stability | ±5ºC at idle temperature |
| Station | |
| Output voltage | AC 27V |
| Dimensions | 110(W) × 110(H) × 205(D) mm |
| Weight | 3.2kg |
| Soldering Iron | |
| Power consumption | 150W (27V) |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Ceramic heater |
| Cord length | 1.2m |
| Total length | 175mm (with 2.4D tip) |
| Weight | 31g (with 2.4D tip) |
* Total length and weight (w/o cord)
