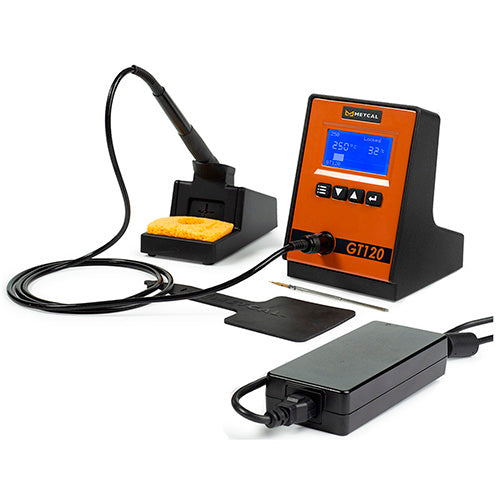

Image for Illustrative Purposes Only
Metcal 120W GT Soldering System (Station, Adapter, T6 Hand-Piece & Workstand) GT120-HP-T6
SKU: METGT120-HP-T6
GT120-HP-T6
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery
Metcal 120W GT Soldering System (Station, Adapter, T6 Hand-Piece & Workstand) GT120-HP-T6
The GT120 Soldering System is an adjustable temperature station that uses inductive technology as the heating mechanism. The complete system includes a soldering station with an external power supply, a handpiece, and a work stand to support a variety of soldering and rework applications using the associated tips and cartridges.
The GT adjustable temperature technology has a fast and repeatable heating mechanism and encompasses the convenience of temperature adjustment with the stability and performance of inductive heating. This gives the GT systems a significant performance advantage with much faster time to temperature, thermal recovery, and temperature stability during soldering versus competitors in the same product category.
GT120 is a single port soldering station with best-in-class performance, 120 watts of power, and is ideal for single-iron applications on the production line. The GT120 is supplied with a replaceable 120W external power supply, allowing for a more compact design to save space on the bench and improve the quality and life of the system.
Discover the Metcal 120W GT Soldering System (Station, Adapter, T6 Hand-Piece & Workstand) GT120-HP-T6 at Mektronics Australia – your trusted source for quality tools and equipment!
-
Inductive heating systems offering best-in-class performance
-
Adjustable temperature
-
Intuitive 4 button user-interface
-
Wide variety of cartridge and tip options
-
Compact to minimize the workbench footprint
-
Programmable password lock-out and temperature range limits
-
Standby and sleep settings to increase tip life
-
USB port to power accessories and enable firmware updates
-
GT120 Power Station
-
Power Adapter
-
GT-HP-T6C Handpiece
-
GT-HC-T6 Heater Cartridge
-
GT-WS Workstand
| Input Line Voltage | 100 – 240 VAC, grounded circuit |
| Input Frequency | 50/60 Hz |
| Power Output | 120 W max. |
| Output Line Frequency: | 465 kHz |
| Heating Method | Inductive Heating |
| Display | 2.8” Monochrome LCD Display |
| Controls | 4 tactile buttons |
| Operation | Single Port |
| Tip-to-Ground Potential | < 2 mV |
| Tip-to-Ground Resistance | < 2 Ohm |
| Ground Detection | Permanent |
| Surface Resistivity | 105 Ω - 109 Ω, ESD-safe |
| Idle Temperature Stability | ± 1.1 °C in still air |
| Tip Temperature Accuracy | Meets or Exceeds IPC J-STD-001 |
| Communications | 1 x USB A connector |
| Warranty | 2 years |
| Dimensions (W x D x H) | 110 x 125 x 160 mm (4.3” x 4.9” x 6.1”) |
| Weight: | 1.68 kg (3.7 lb.) |
| Certification | CE, TUV |
| Power-Connector | Mini-DIN |
| Ambient Operating Temperature | 10 to 40 °C |
| Maximum Enclosure Temperature | 55° C |
| Handpiece | GT-HP-T6C Handpiece |
| Handpiece Connector | 8-pin circular DIN |
| Handpiece Cable | 1.5 m length, burn proof, ESD-safe |
