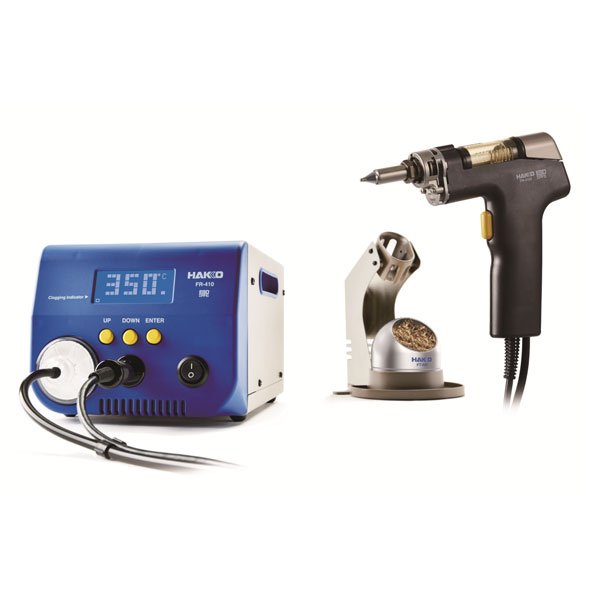

Hakko FR-410 Desoldering Station

SKU: HFR410-93

FR410-93

$1,749.00

EX. GST
Regular price $2,129.95
$1,923.90 including GST
Only 3 left in stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

Please contact us for lead time

own it from $10 a week with Group 2 Copy Created with Sketch.

Overview
Features
Includes
Specifications
Shipping & Delivery
  • Desoldering tool with built-in vacuum pump

  • 140 W high power enables perfect desoldering on multi-layer PWB

  • New type nozzle can fit onto micro land patterns and narrow space

  • New functions allow the improvement of maintainability and reliable desoldering

  • 140 W high powers enable perfect desoldering for the components on multi-layer PWB: Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.

  • A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works: Applicable to even micro lands, components in a narrow space or flat type terminals on the PWB of downsized devices like mobile phone.

  • Secure desoldering, valve function that suctions with high pressure: Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.

  • Reduction of solder clogging: Improvement in heating core: Heating ability for backside of heating core is increased to ensure suctioned solder be carried to filter pipe and avoid solder clogging. Featuring ACF (Anti Clogging Function): ACF (Anti Clogging Function) ensures suctioned solder be carried to filter pipe by keeping the pump running for a certain period of time (1 to 5 seconds) automatically after releasing trigger.

  • Easy nozzle replacement: The dedicated wrench allows safe, easy and smooth nozzle replacement.

  • Easy heater replacement: Easy heater replacement by removing 3 screws on the part of heating core.

  • Larger filer and more transparency: Filter size has been increased to protect the pump from contaminants, and transparent filter cover allows quick visual check of the filter condition.

  • Tool box: FR-410 comes with a tool box that contains of maintenance tools to keep nozzles and heater in a good condition.

  • Featuring a large LCD display: Very easy to see temperature on the large LCD display. Vacuum indicator to check clogging

  • Station

  • Desoldering tool (FR-4103)

  • Power cord

  • Iron holder (with cleaning wire)

  • Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4])

  • Instruction manual

  • Featuring a large LCD display: Very easy to see temperature on the large LCD display. Vacuum indicator to check clogging

Model No.

FR-410(Desoldering tool: FR-4103)

Power consumption

190W

Temperature range

330 to 450 ºC

Temperature stability

±5 ºC at idle temperature

・Station

Output voltage

AC 24V

Vacuum generator

Vacuum pump, double cylinder type

Vacuum pressure

Max. 80kPa (600mmHg)

Suction flow

15L/min.

Dimensions

165(W)×137(H)×244(D)mm

Weight

4.8kg

・Desoldering Tool

Power consumption

140W (24V)

Nozzle to ground resistance

<2Ω

Nozzle to ground potential

<2mV

Heating element

Composite heater

Standard nozzle

Φ1.0mm S type (No.N61-05)

Cord length

1.2m

Total length

168mm (with Φ1.0mm S type nozzle)

Weight

190g (with Φ1.0mm S type nozzle)
