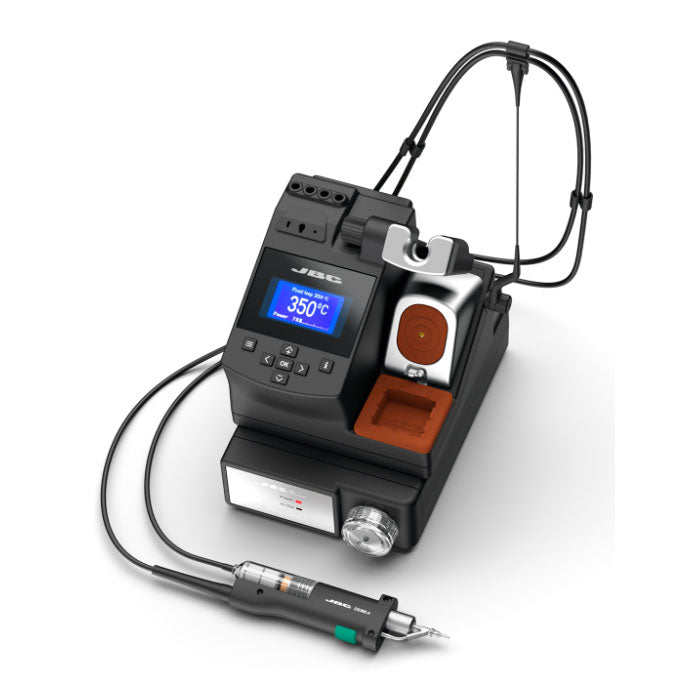

JBC CS-2F Micro Desolder Station With Electric Pump
SKU: JBC-CS-2F
CS-2F
DESCRIPTION
Includes
Specifications
Shipping & Delivery
JBC CS-2F Micro Desolder Station With Electric Pump
Ideal for desoldering small THT components and SMD pad cleaning.
It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:
JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times.
Complete Cleaning System, with exclusive fast and safe Cartridge exchanger.
Connectivity:
- Fume Extractor
- Datas Download
- Software Updates
- Traceability
Includes MS Electric Desoldering Module and DS360 Micro Desoldering Iron that works with our wide range of C360 Tips.
Additional C360 range of tips available to purchase HERE
Supercedes CS-2B, CS-2C, CS-2D, CS-2E
Discover the JBC CS-2F Micro Desolder Station With Electric Pump at Mektronics Australia – your trusted source for quality tools and equipment!
-
CS Control Unit
-
MS-A Electric Desoldering Module
-
DS360 Micro Desoldering Iron - (C360004 already inserted)
-
5 C360002 Through-hole Desoldering Tip Ø 0.8
-
5 C360004 Through-hole Desoldering Tip Ø 1.2
-
Selectable Temperature: 180 to 450 ºC / 360 to 840 ºF
-
Vacuum: 75% / 570 mmHg / 22.4 inHg
-
Flow rate: 9 SLPM
-
USB-B: Software PC / Firmware update
-
Equipotential bonding: Optional connection to EPA
-
FAE Connector: Smart Fume Extractor Cntrol
-
Earthing Fuse: F 1.25A
-
ESD safe
-
Tip to ground vol./resistance: Meets and exceed, ANSI/ESD S20.20-2014 IPC J-STD-001F
-
Peak power: 40 W - 23,5 V
-
Operating Temp Range: 10 to 50 ºC / 50 to 120 ºF
-
Compact Stations: 170 x 176 x 145mm / 4.0kg
- Package: 495 x 295 x 255mm / 5.47kg
