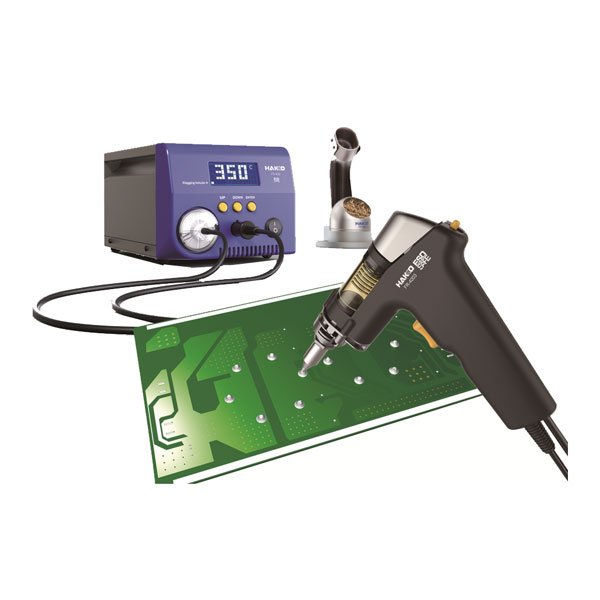

Image for Illustrative Purposes Only
Hakko FR-400 Desoldering Station
SKU: HFR400-93
HFR400-93
Great Alternatives
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery
Hakko FR-400 Desoldering Station
-
Heavy-duty Desoldering Tool with built-in vacuum pump
-
Quick and secure desoldering even on high heat capacity and high heat dissipation PWB with super power
-
Secure desoldering with valve function
-
Solder clogging was reduced featuring Anti Clogging Function
Discover the Hakko FR-400 Desoldering Station at Mektronics Australia – your trusted source for quality tools and equipment!
300 W tremendous power makes incredible heating.
Secure desoldering, valve function that suctions with high pressure: Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.
Reduction of solder clogging
-
Improvement in heating core: Heating ability for backside of heating core is increased to ensure suctioned solder be carried to filter pipe and avoid solder clogging.
-
Featuring ACF (Anti Clogging Function): ACF ensures suctioned solder be carried to filter pipe by keeping pump running for a second after releasing trigger.
Improvement in Maintainability
-
Featuring new filter pipe 3 times larger than the previous model: The new filter pipe is 3 times larger than the previous model and applicable to operation on large components. This is not disposal type and for repeatable use.
-
Easy heater replacement: Easy heater replacement by removing 3 screws on the part of heating core.
-
Tool box for maintenance kit: A tool box that contains of maintenance tools such as cleaning pins for nozzle and heating core is provided for standard. The box can be set on the top of the unit for the convenience of use.
-
Larger filer and more transparency: When desoldering, flux is also suctioned. Flux can cause degradation of suction performance if it enters inside the pump. To avoid the degradation, filter is attached on the front panel. The new filter is larger than the previous type to enhance greater adsorption property. Also the transparent filter cover makes it easy to check filter condition.
Large LCD Display: Very easy to see temperature on the large LCD display. Vacuum indicator to check clogging
Lineup of nozzles for large components: Nozzles applicable to shapes like 2 mm or larger diameter lead or flat termination are lined up.
-
Station, Desoldering tool（FR-4003）
-
Power cord
-
Iron holder (with cleaning wire)
-
Tool box (Cleaning pin for ø1.0 mm
-
Cleaning pin for heater
-
Cleaning drill for ø1.0 mm
-
Nozzle wrench, Filter [qty 2]
-
Ceramic paper filter [qty 4])
-
Instruction manual
|
Model No. |
FR-400(Desoldering tool: FR-4003) |
|---|---|
|
Power consumption |
320W |
|
Temperature range |
350 to 500 ºC |
|
Temperature stability |
±5 ºC at idle temperature |
・Station
|
Output voltage |
AC 29V |
|---|---|
|
Vacuum generator |
Vacuum pump, double cylinder type |
|
Vacuum pressure |
Max. 80kPa (600mmHg) |
|
Suction flow |
15L/min. |
|
Dimensions |
166(W)×137(H)×264(D)mm |
|
Weight |
5.7kg |
・Desoldering Tool
|
Power consumption |
300W (29V) |
|---|---|
|
Nozzle to ground resistance |
<2Ω |
|
Nozzle to ground potential |
<2mV |
|
Heating element |
Composite heater |
|
Standard nozzle |
Φ1.0mm type (No.N60-02) |
|
Cord length |
1.2m |
|
Total length |
183mm (with Φ1.0mm nozzle) |
|
Weight |
270g (with Φ1.0mm nozzle) |
* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)
