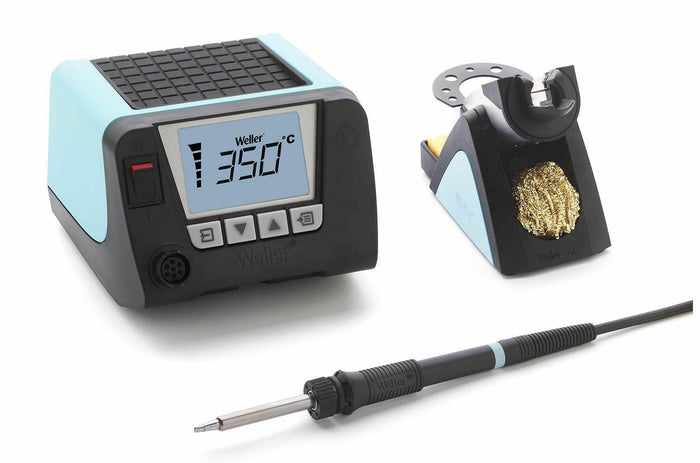

Weller WT 1014 1 Channel Soldering Station WT1/WSP80ROB/WSR201
SKU: WELT0053442599
T0053442599
DESCRIPTION
Features
Specifications
Shipping & Delivery
Weller WT 1014 1 Channel Soldering Station WT1/WSP80ROB/WSR201
Weller 1-Channel Soldering Station Set, 95 W with soldering iron WSP 80 Robust T0053442599.
Discover the Weller WT 1014 1 Channel Soldering Station WT1/WSP80ROB/WSR201 at Mektronics Australia – your trusted source for quality tools and equipment!
-
Power unit WT 1, 1 channel with soldering iron WSP 80 Robust and safety rest WSR 201
-
WSP 80 Robust soldering iron (80 W) with power response tips for all standard applications, robust version. Tip family LT
-
High productivity (Power unit with 1 channel, 95 W)
-
Intuitive use thanks to clear menu structure
-
Reduced footprint thanks to stackability
-
Graphical backlit LC-Display
-
High performance and functionality - many connectable tools
-
Housing cover useable as storage
-
OFF time, Process window, Lock function, Offset
| Height | 101mm |
| Length | 149mm |
| Dimensions L x W x H | 149.0 x 138.0 x 101.0mm |
| Equipotential Bonding | Yes |
| Equipotential Bonding Socket | Via 3.5mm Pawl Socket on Front of Device |
| ESD Safe | Yes |
| Fuse | 0,5A |
| Interface | One Switching Output |
| Number of Channels | 1 |
| Power | 95 W |
| Temperature Accuracy °C | ± 9 °C |
| Temperature Accuracy °F | ±17 °F |
| Temperature Range (Depends on Tool) | Adjustable from 50°C - 450°C (150°F - 850°F) Adjustable temperature range varies among tools |
| Temperature Range °C | 50 - 450 °C |
| Temperature Range °F | 150 - 850 °F |
| Temperature Stability °C | ±2 °C |
| Temperature Stability °F | ±4 °F |
| UPC | 4003019439591 |
| Voltage | 230 V, 50/60 Hz |
| Weight (Catalog) | 1.90 kg |
| Product Family | WT Line Soldering Stations |
