1-channel power unit, digital, 70 W
Discover the Weller WE1010 Digital Soldering Station at Mektronics Australia – your trusted source for quality tools and equipment!

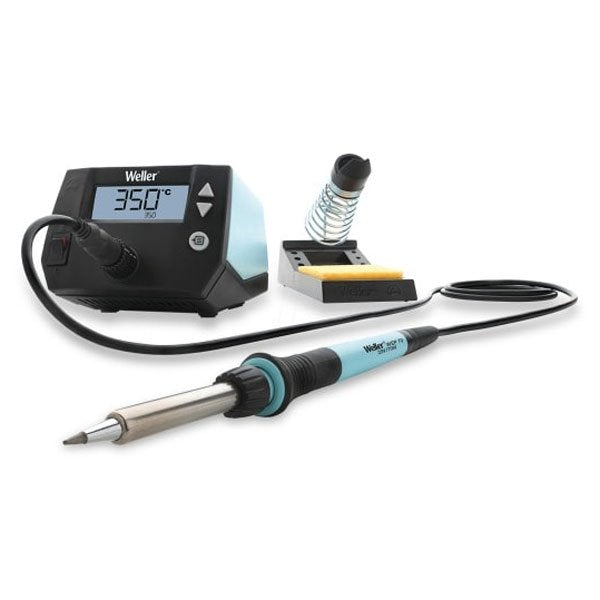

Power unit, 1 channel with soldering iron WEP 70 and safety rest PH 70
70W solder iron with ergonomic handle and providing toolless tip change
ESD safe station, iron and heat-resistant silicon cable for safe handling
Using ET soldering tips
Standby mode and car setback conserves energy, protects equipment
Password-protected to preserve settings
Change hot tips out by hand by twisting the plastic knurled nut on the soldering pencil without an additional tool.
Advantages
Digital 70W soldering station, 40% more powerful than existing 50 W stations in the same category. This job is done in a fast recovery time - gets the job done quicker with more efficiency and precision
State-of-the-art housing with front panel power switch for easy access
Easy to read LCD screen with 3 push buttons providing easy temperature control, a front switch for easy on/off and intuitive navigation through SW features
ESD Safe
Iron has been designed in a light weight pencil style with a co-molded grip
Change hot tips out by hand by twisting the plastic knurled nut on the soldering pencil without an additional tool
The soldering set and the genuine Weller ET series tips provide the best performance and an extraordinary lifetime
Temperature lock stabilizes heat levels to protect and produce reliable and repeatable soldering results
Station automatically powers down to a given temperature when not in use
All settings can be secured with a password
Sets temperature back automatically when in use to save energy and increase tip lifetime
Technical Data
Dimensions L x W x H (mm): 150 x 120 x 98
Dimensions L x W x H (inches): 5.91 x 4.72 x 3.86
Weight (approx.) In kg: 1.4
Display: Digital LC Display
Temperature range: Adjustable from 100 ° C - 450 ° C (200 ° F - 850 ° F)
Voltage: 230V
Channels: 1
Temperature range (depends on tool) ° C: 100 - 450
Temperature range (depends on tool) ° F: 200 - 850
Temperature accuracy ° C: Average tip temperature can be offset to +/- 5 ° C at idle with no load
Temperature accuracy ° F: Average tip temperature can be offset to +/- 9 ° F at idle with no load
Temperature stability ° C: ± 6
Temperature stability ° F: ± 10
Equipotential bonding
USB port
Heating time (approx.) In seconds (50-350 ° C / 120-660 ° F): 28 sec.
Power: 85W
Power cable: EMEA
ESD-safe: on
Replacement TipsETA Soldering Tip - Screwdriver 1.6mm
ETB Soldering Tip - Screwdriver 2.4mm
ETC Soldering Tip - Screwdriver 3.2mm
ETCC Soldering Tip - Single Flat 3.2mm
ETD Soldering Tip - Screwdriver 4.7mm
ETH Soldering Tip - Screwdriver 0.8mm
ETJ Soldering Tip - Screwdriver Long 0.8mm
ETK Soldering Tip - Screwdriver Long 1.2mm
ETKN Soldering Tip - Knife 4.57mm
ETL Soldering Tip - Screwdriver Long 2.0mm
ETM Soldering Tip - Screwdriver Long 3.2mm
ETO Soldering Tip - Conical Long 0.8mm
ETP Soldering Tip - Conical 0.8mm
ETR Soldering Tip - Screwdriver Narrow 1.6mm
