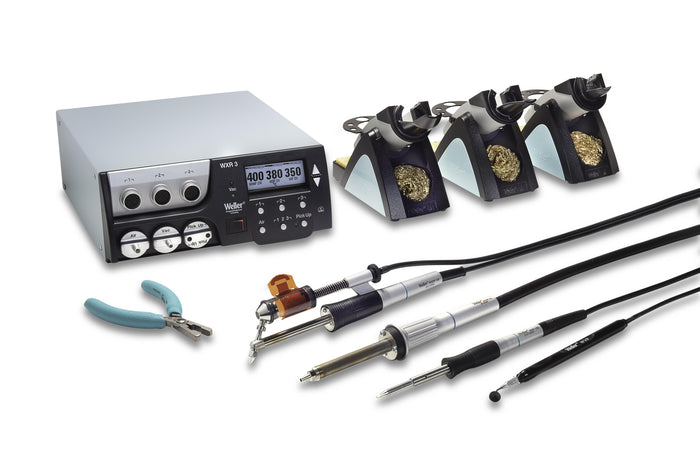

Weller 3-Channel Rework Station WXR3031

SKU: WELT0053502699N

T0053502699N

$6,012.36

EX. GST
$6,613.60 including GST
Please contact us for lead time

own it from $10 a week with Group 2 Copy Created with Sketch.

Overview
Specifications
Shipping & Delivery

Power unit WXR 3, 3 channels with WXHAP 200 Hot air iron, WXDP 120 Desoldering iron and WXP 120 Soldering iron

USB

USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types

Power Cable

EMEA

Dimensions L x W x H (mm)

273 X 235 X 102

Voltage

230V (50/60 Hz)

Max. vacuum

0,7 bar

Max. hot air flow rate l/min (depends on tool)

15

Capacity l/min

18

Power

420 W (600 W)

Dimensions L x W x H (inches)

10.75 x 9.25 x 4.02

Weight (approx.) in kg

6.7kg

Built-in pump

Periodic duty 30/30 s

Channels

3

Temperature stability °C

±2

Temperature stability °F

±4

Temperature range (depends on tool) °C

100-450 (550)

Temperature range (depends on tool) °F

200-850 (999)

USB Port

on

Display

255 x 128 dots / backlighting

Overcurrent release

2,0 A

Temperature accuracy °C

±9

Temperature accuracy °F

±17

IPC-complaint

I

Fuse

n.a

WX compatible

on

ESD-Safe

on
