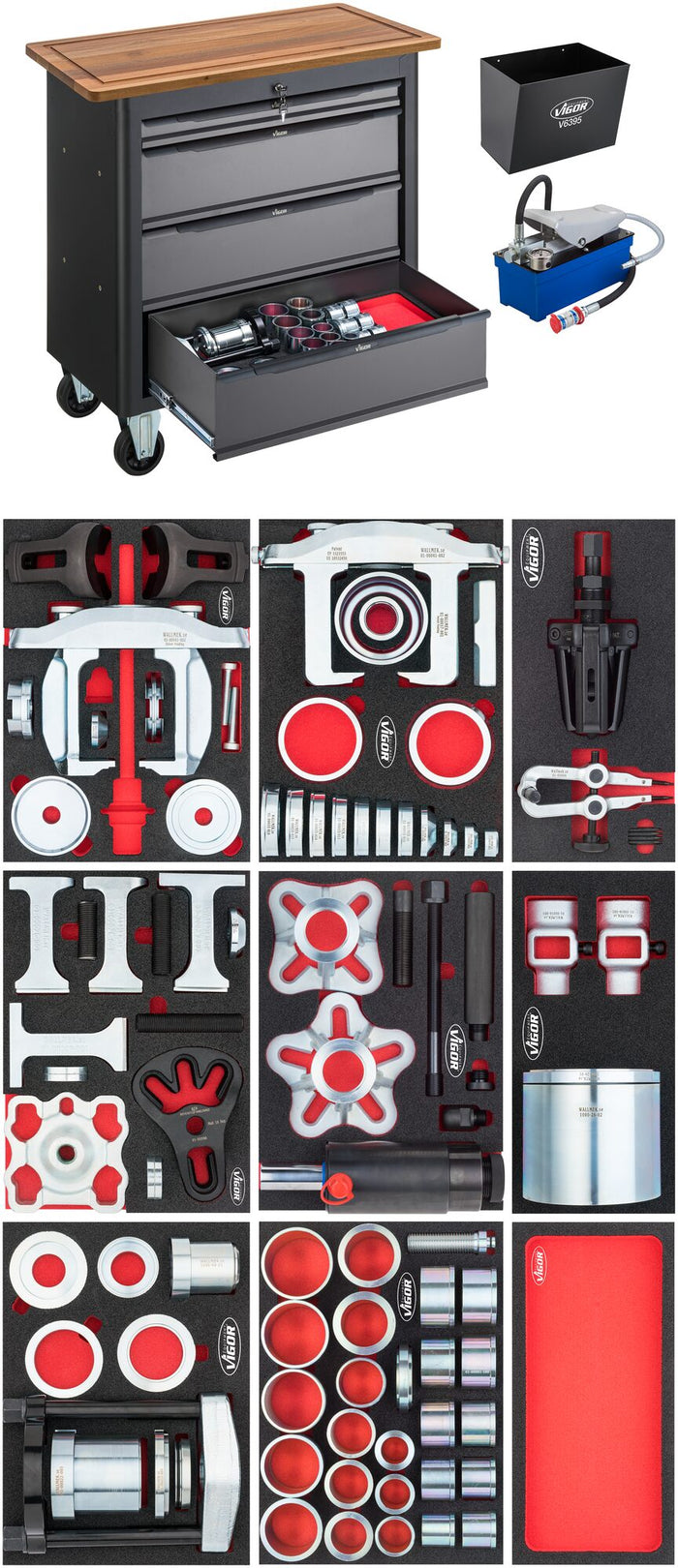

Vigor 121 Piece Mobile Work Bench Series XL With Specialty Tool Assortment V7026-2

Hydraulic pump ∙ pneumatic V2846
Hydraulic hose V3120
(CEJN-) quick coupling V3141
Pressure gauge V4255

Tension and compression sleeve set V5066
Press sleeve V2947 V2948 V2949 V2950 V2961 V2962 V2963 V2964 V2965 V2966 Press
pipe V2967 V2968
Press pipe A ∅ 44.7mm V2969
Press pipe V2971 V2972 V2973 V2974 V2975 V2976 V2977 V2978 V2979 V2980 V2981

2-component soft foam insert ∙ with empty compartment V5009

Multibox V4700-XL ∙ for FORD ∙ MAZDA ∙ Volvo – longitudinal strut and wishbone bushing V5741N
Multibox-XL V4700-XL
screw M16 x 40mm V3056
rear axle bushing set V5902
bushing set longitudinal strut ∙ FORD ∙ Volvo V3649
plate with thread V3053

universal wheel hub/wheel bearing dismantling and assembly set V4906
pressure pipe length 78mm for V4598 ∙ V4599 V4598-30
Bearing shell ∅ 93mm for V4598 V4598-22
Bearing shell ∅ 75.5mm for V4598 V4598-21
Bearing shell ∅ 93mm for V4598 V4598-20
Bearing disk ∅ 61.8 - 62.8mm inner hole ∅ 20.25mm suitable for spindle M20 V4598-10
Bearing disk ∅ 63.8 - 64.8mm inner hole ∅ 20.25mm suitable for spindle M20 V4598-11
Bearing disk ∅ 65.8 - 66.8mm inner hole ∅ 20.25mm suitable for spindle M20 V4598-12
Bearing disk ∅ 68.8 - 70.8mm inner hole ∅ 20.25mm suitable for spindle M20 V4598-13
Bearing disk ∅ 72.5 - 74.5mm inner hole ∅ 20.25mm suitable for spindle M20 V4598-14
Bearing disk ∅ 76.5 - 78.5mm inner hole ∅ 20.25mm suitable for spindle M20 V4598-15
bearing disc ∅ 80.8 - 82.8mm inner hole ∅ 20.25mm suitable for spindle M20 V4598-16
hub disc ∅ conical ∅ 38.8mm for V4598 V4598-2 hub
disc ∅ conical ∅ 43.8mm for V4598 ∅ V4599 V4598-3 hub disc ∅ conical ∅ 59.8mm ∙ for V4598 V4598-4
Counterholder V3060
Hub disc ∙ conical ∙ ∅ 33.8mm for V4598 V4614
Fixing screw ∙ M14 V3873
Screw ∙ M12 V3874
Cross member for various pressure feet V3871
Pressure foot set for V4629 V4629-1

Bearing hub shell set including wheel bearing fixation V4908
Bearing and hub shell V2845
Pressure foot set for V4594 V4594-1

Drive shaft pressing device set including 22;ton pressure and pull hydraulic cylinder in soft foam insert V4904
Drive shaft 4-hole bolt circle 92 - 120mm V3147
Drive shaft 5-hole bolt circle 98 - 131mm V3148
(CEJN-) nipple hydraulic V3128
Hydraulic cylinder 22 tonnes V3199
Protection ring for thread 1.¹ ⁄ ₂″ V3125
Pull rod  M18 M22 ∙ 250mm V3127
Collar nut  M18 V3126
Push rod∙ adjustable M 24 V3124
Pressure axis M24 x 3mm V3134
Pressure foot M 24 x 3mm V3123
Impact body M22 x 2.5mm V3018
Pressure piece adjustable M 24 V3130

Multibox V4700-L with extension kit for compact wheel bearings/hub V5549-1
Wheel hub puller V5027
Pressure foot set (dismantling) for bolted wheel bearing units V3758 V3753
Hub disc conical  ∅ 59.8mm ∙ for V4598 V4598-4
Wheel bearing puller for bolted wheel bearings V5903
Multibox-L V4700-L

Bearing inner ring puller including circlip tool V4921
Bearing inner ring puller V4636
Circlip tool V2867

Compact wheel bearing disassembly/assembly kit ∙ universal V4678
Soft foam insert ∙ empty V4676

Mobile workbench 1000 XL ∙ empty V4814

• EAN: 4047728070478

• Number of flat drawers: 1

• Drawers total: 4

• Work surface: Wood multiplex, with circumferential collecting groove

• Number of high drawers: 3

• Insert measurement/drawer size: XL (750 x 393 mm)

• Number of pieces: 121

• Width: 481mm

• Length: 907mm

• Height: 990mm

• Loading capacity (static): 1000 kg
