Image for Illustrative Purposes Only
Vigor 12 Pce Set of Devices for the Removal of Drive Shafts V5168
SKU: VIGV5168
V5168
DESCRIPTION
Contents
Shipping & Delivery

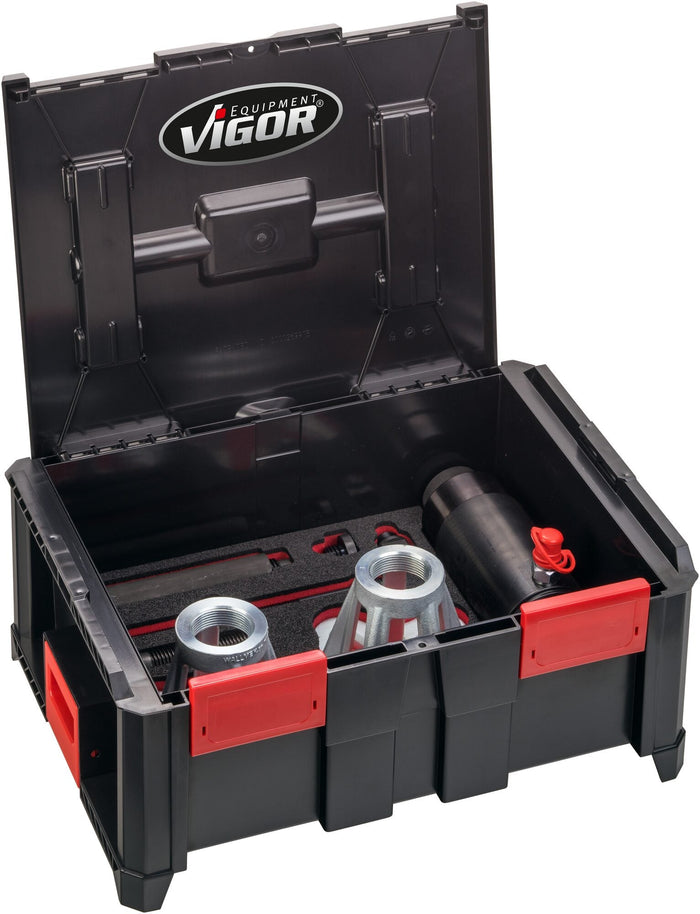

Vigor 12 Pce Set of Devices for the Removal of Drive Shafts V5168
-
More mobility in the fields of trade, industry and service
-
For removing rusted and stuck drive shafts directly on the vehicle
-
Working time approx. minutes only
-
For all passenger cars with 4- and 5-hole wheel hubs due to oval holes for wheel bolts
-
Prevents heating of or damage to the drive shaft or damage to other parts
-

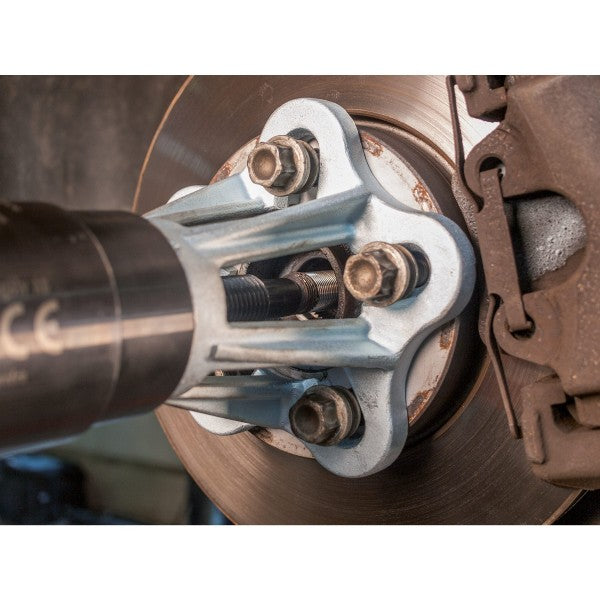

Application: screwing the wheel hub on with the vehicle wheel nuts, removing the drive shaft with 1tonne or 2tonne hydraulic cylinder (the installation of the impact body enables additional force by using hammer), removal of the wheel hub with sliding hammer V2922 and adapter V2872
-
Including multibox
-
Lightweight plastic box
-
Maximum loading capacity: 9kg
Design of the drive shaft
The drive shaft is used to transport the applied torque of the motor and the gearbox via the wheel Bearings to the wheels. This action should be uniform and without speed fluctuations. drive shaft can be identified by the two bellows at the ends. One leads to the wheel centre, the other to the differential output
Out with it:
causes of damage and reasons for removal
-
Age-related wear, which usually manifests as cracking noises when cornering. Defective axle boots cause water and dirt to damage the hinge
-
Improper installation
-
Associated work, for repairs to clutch or gearbox
-
In the case of front-wheel drive vehicles, "quick starts" damage the drive shaft when making turn
-
Quick and easy removal of rusted drive shafts
-
Quick and easy removal of stuck drive shafts
-
Corrosion caused by salt requires high forces during removal
-

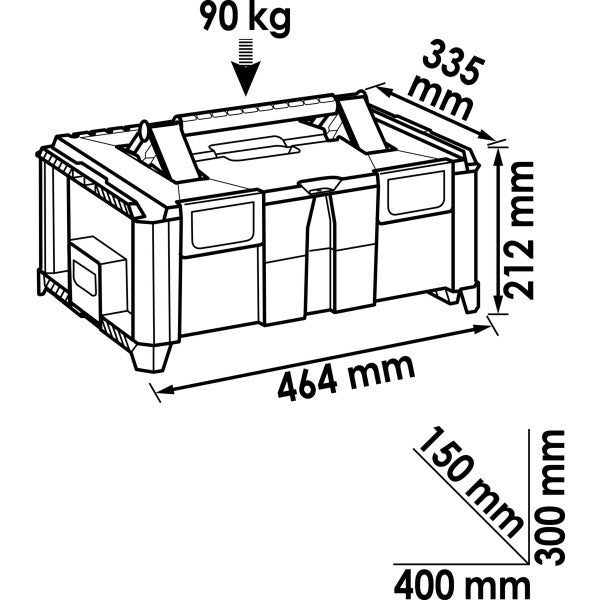

Insert measurement drawer size: (282 393 mm)
Discover the Vigor 12 Pce Set of Devices for the Removal of Drive Shafts V5168 at Mektronics Australia – your trusted source for quality tools and equipment!
Device for the removal of drive shafts 4 and holes V2849
-
Axle drive shaft holes bolt circle 92-120mm V3147
-
Axle drive shaft holes bolt circle 98-131mm V3148
-
(CEJN) fitting, hydraulic 1/4" V3128
-
Hydraulic cylinder 2tonnes V3199
-
Protection ring for thread 1.1/2 V3125
-
Drawbar M18 M22 maximum 2t V3127
-
Flange nut M18 x 2.5 V3126
-
Thrust rod adjustable 24 V3124
-
Pressure shaft M24 x 3mm V3134
-
Pressure foot M24 x 3mm V3123
-
Impact body M22 x 2.5mm V3018
-
Thrust block adjustable M24 V3130
