Vigor Longitudinal Strut & Wishbone Bushing Set Ford Volvo Mazda V5741N

Vigor Longitudinal Strut & Wishbone Bushing Set Ford Volvo Mazda V5741N

• More mobility in the fields of trade, industry and service

• Wishbone bushing set, for rear axle bushings

• Changing the bushing (front longitudinal strut in the rear area) and the rear axle bushing

• For e.g.:

  • FORD Focus ∙ Focus Turnier, model years 1999 , C-Max model years 2003, Kuga model years 2008, Galaxy model years 2006 - 2015, Mondeo model years 2007 - 2015, S-Max model years 2006 - 2014

  • Volvo V50, S40, C30, model year 2004 - C70, model year 2006, S40, model year 2002 - 2012, S60, S80, model year 2010 - V50, model year 2005 - 2012, V60, model year 2010 - V70, model year 2007 - 2015, XC60, model year 2008, XC70, model year 2002 - 2007

  • MAZDA 3, model year 2003 - 2009 - 5, model year 2005 - 2010

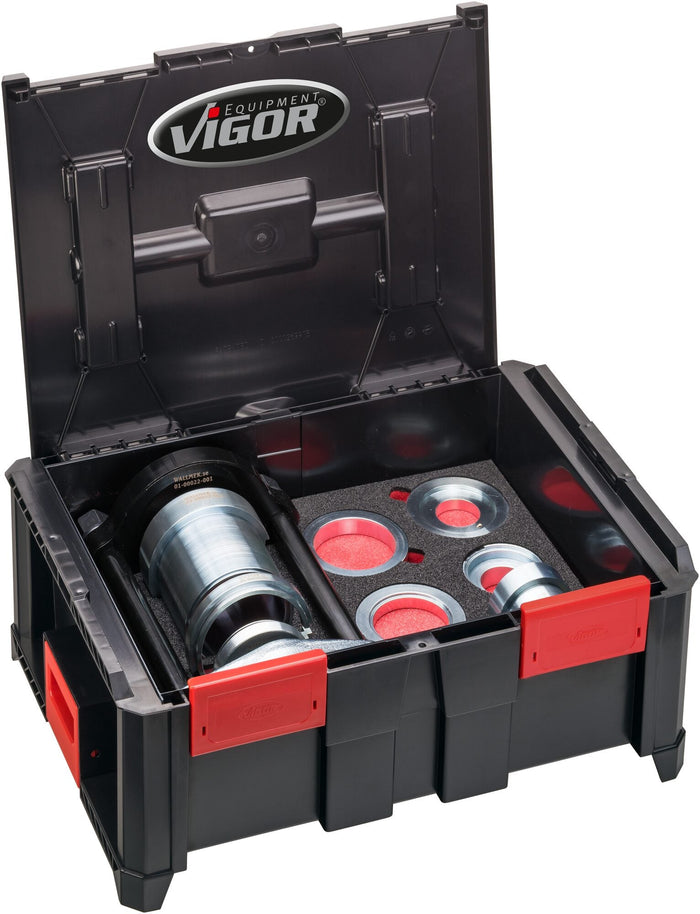

• Including multibox

• Lightweight plastic box

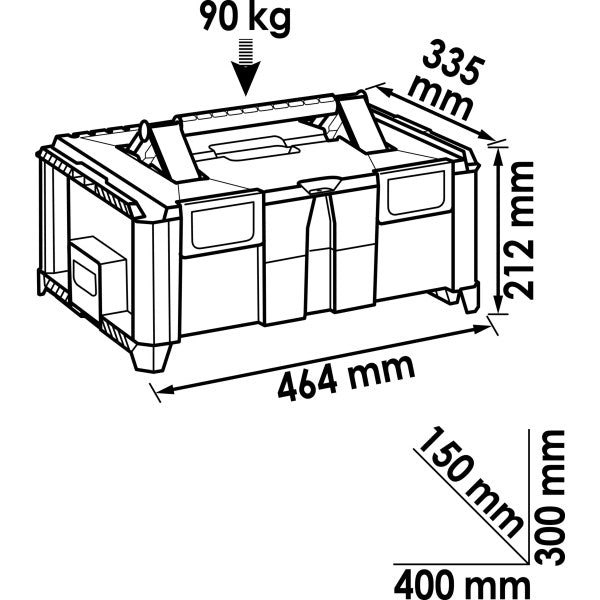

• Maximum loading capacity: 90 kg

Flying changeover – For FORD ∙ MAZDA ∙ Volvo –  longitudinal struts and wishbone bushings

Wishbone/rear axle removal

Wishbones are handlebars arranged transverse to the direction of travel, which guide the wheel carrier in a vertical direction and transfer the forces between the wheel and the vehicle body. The upward and downward movements of the wheels are largely compensated for by the springs and shock absorbers. The wishbones have a similar task during lateral movements. The positions of the wheels are also influenced by the wishbone.
It is essential to change the bearing professionally in order to continue to ensure safety when driving

Step by step – from removal to installation

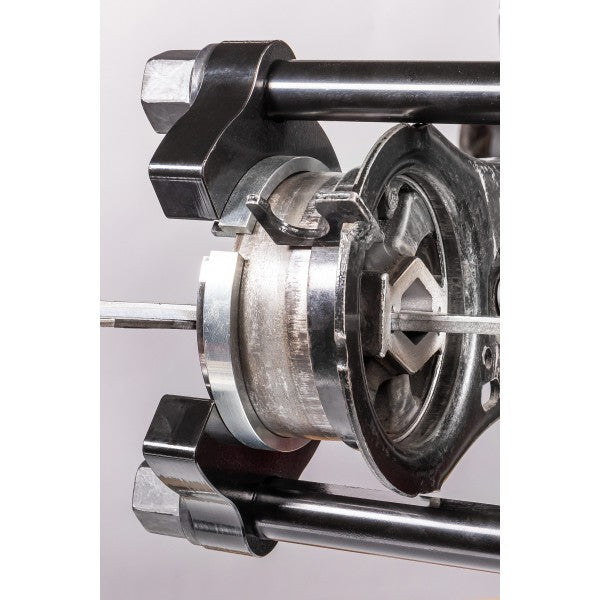

1. The press frame is supported on the longitudinal strut to form the necessary contact surface

2. Then the matching pressure sleeve is positioned. It must fit precisely on the steel element of the bearing, not on the rubber element

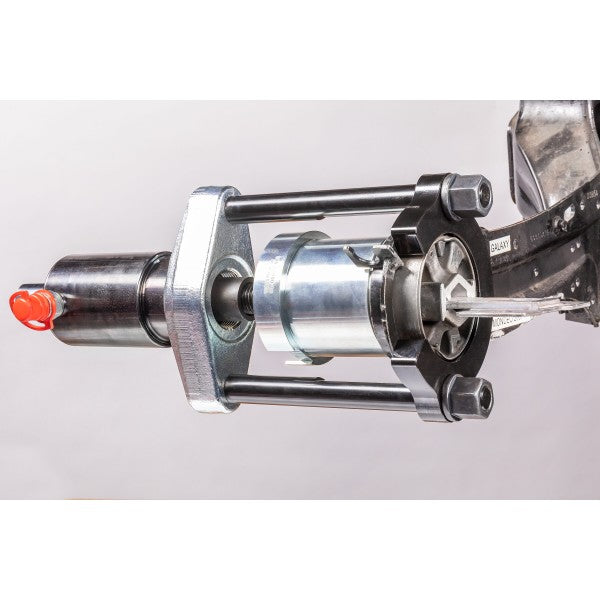

3. The bushing is pressed out of the carrier using the pressure side of a hydraulic cylinder

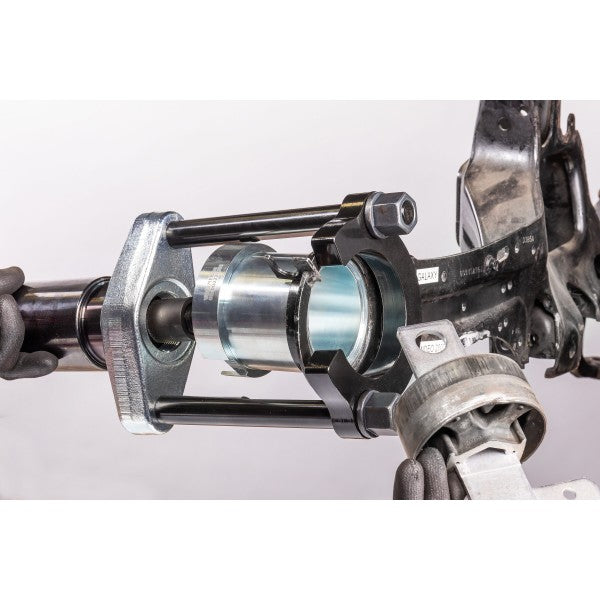

4. In order to professionally install the new bearing, the appropriate receiving adapter for pressure sleeves is placed on the steel element of the new bearing. Then the press frame is supported on the bearing and the appropriate pressure sleeve is inserted. The new bearing can then be effortlessly pressed in

• Insert measurement / drawer size: M (282 x 393 mm)
