Unior 680/2 Puller with Two Adjustable Arms (2 x 230 x 190)
SKU: UNR601763
601763
DESCRIPTION
Features
Specifications
Shipping & Delivery

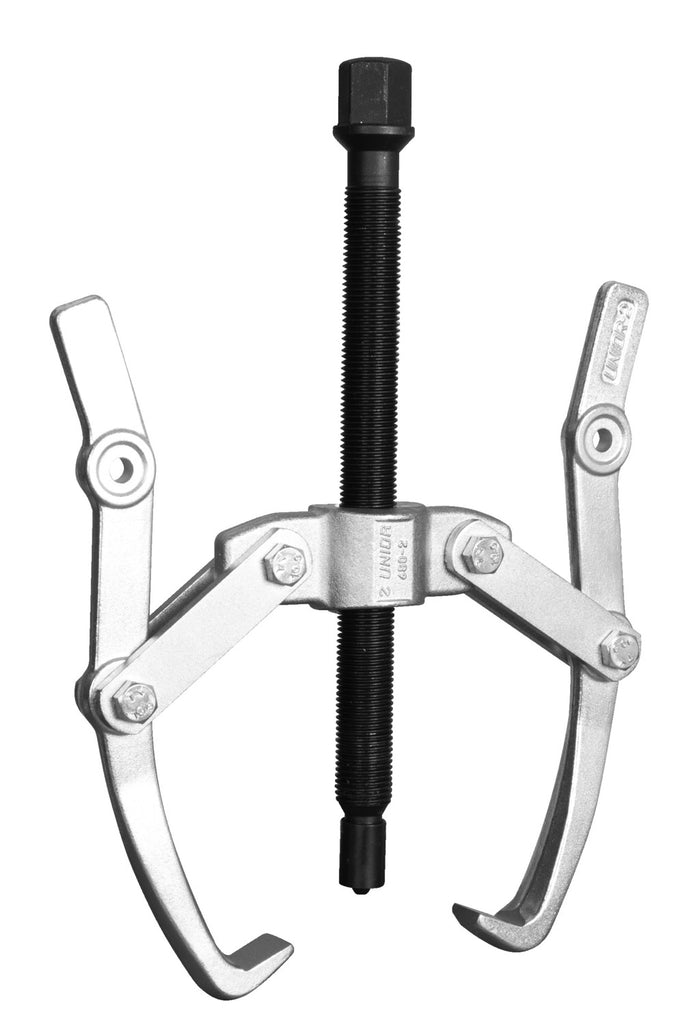

Unior 680/2 Puller with Two Adjustable Arms (2 x 230 x 190)
Unior pullers are made of carbon tool steel. The special forging process guarantees their extra durability.

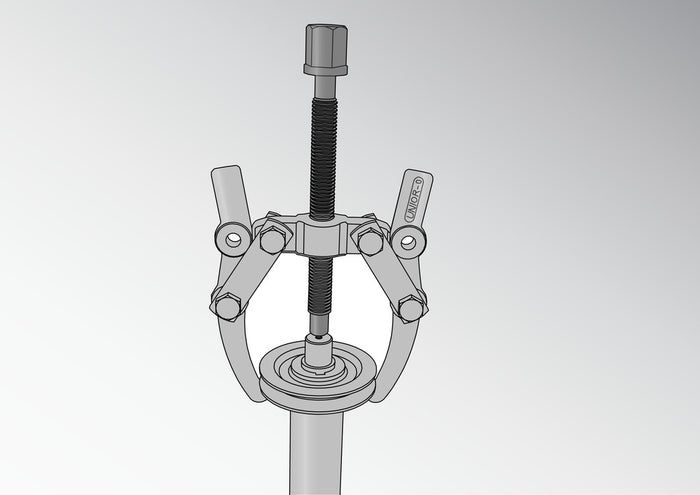

Unior pulling systems enable safe and effective removal of bearings, bushings and sprockets. All pullers are easy to use, flexible and extremely long-wearing.
Discover the Unior 680/2 Puller with Two Adjustable Arms (2 x 230 x 190) at Mektronics Australia – your trusted source for quality tools and equipment!
- material: body from premium flex plus carbon steel, arm from premium chrome vanadium steel
- drop forged, entirely hardened and tempered
- surface finish: chrome plated according to ISO 1456:2009, screw blackened
- arms adjustable in two positions
- lever action claws fit closely under the part to be removed
| Part Number | No. | L (Max Length) | D (Max Diameter) | Max Puller Load Capacity (kN) | Max Puller Load Capacity (Tonnes) | M (Thread) |
M (Wrench Size) |
Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 612603 | 0 | 90 | 90 | 20 | 2 | M 10 x 1 | 13 | 405 | |
| 601762 | 1 | 130 | 160 | 30 | 3 | M 14 x 1,5 | 17 | 915 | |
| 601763 | 2 | 190 | 230 | 40 | 4 | M20 x 2 | 22 | 2078 | |
| 601764 | 3 | 250 | 300 | 60 | 6 | M 22 x 2 | 24 | 4075 |
* Images of products are symbolic. All dimensions are in mm, and weight in grams. All listed dimensions may vary in tolerance.
