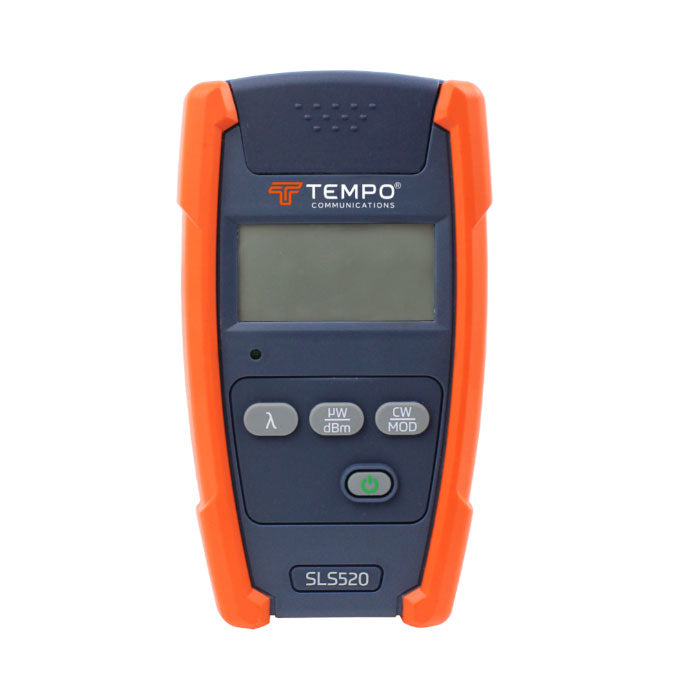

Tempo SLS520 Stabilized Laser Sources
SKU: TEMSLS520
SLS520
DESCRIPTION
Features
Specifications
Resources
Shipping & Delivery
Tempo SLS520 Stabilized Laser Sources
Tempo Communications rugged, adaptable and stable fiber optic sources (SLS520, SLS525, SLS530, SLS535, SLS536) are available in dual and triple wavelength lasers and a dual wavelength LED. Accurate insertion loss measurements are possible when used in conjunction with the Tempo Communications optical power meters. When placing tones on the fiber the Tempo Communications optical power meter will quickly identify the fiber.
The ruggedized IP54 compliant package provides test confidence when testing singlemode and multimode networks. See Models tab for options as well as Adapters and Accessories.
Discover the Tempo SLS520 Stabilized Laser Sources at Mektronics Australia – your trusted source for quality tools and equipment!
-
Dual and Triple Wavelength Laser Sources at 1310, 1490, 1550, 1625 & 1650nm
-
Dual Wavelength LED Source at 850nm & 1300nm
-
Accurate Insertion Loss Measurements
-
Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
-
SC, LC, FC and ST Interchangeable Bulkheads
-
Ruggedized Package, IP54 compliant
-
Compatible with Singlemode and Multimode Networks
-
Auto Off or Continuous On Operation
-
Battery or 120/240VAC Operation
| Wavelength | SLS520 (1310/1550); SLS525 (850/1300); SLS530 (1310/1490/1550); SLS535 (1310/1550/1625); SLS536 (1310/1550/1650) |
| Range of Use | Singlemode (SLS520, 530, 535, 536); Multimode (SLS525) |
| Emitter Type | SLS520, 530, 535, 536 (FP); SLS525 (LED) |
| Spectral Width | SLS520, 530, 535, 536: =/less than 5nm; SLS525: +/-40nm |
| Output Power | SLS520, 530, 535, 536: =/greater than 0dBm/-1dBm; SLS525: -20dBm/-21dBm |
| Output Stability | SLS520, 530, 535, 536: ±0.05 dB/15min; ±0.10dB/8hr; SLS525: ±0.05 dB/15min ±0.15dB/8hr |
| MOD Frequency | 270, 1kHz, 2kHz |
| Display | LCD |
| Battery Life | 60 Hours |
| Connector Type | SC/PC (Interchangeable LC,ST, FC) |
| Power Supply | 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter |
| Operating Temperature | -10ºC to 50ºC |
| Storage Temperature | -20ºC to 70ºC |
| Relative Humidity | 0 to 95% (non-condensing) |
| Weight | 0.71 lbs (300g) |
| Dimensions | 6.1 × 3.5 × 1.3” (155 × 89 × 33mm) |
| IP Rating | IP54 |
| Vibration | 5Hz to 150Hz, Amplitude = 0.15mm |
| Shock | Peak acceleration 25g at a pulse duration of 6ms |
| Compliance | CE, FCC, 21 CFR 1040.10 (Laser) |
