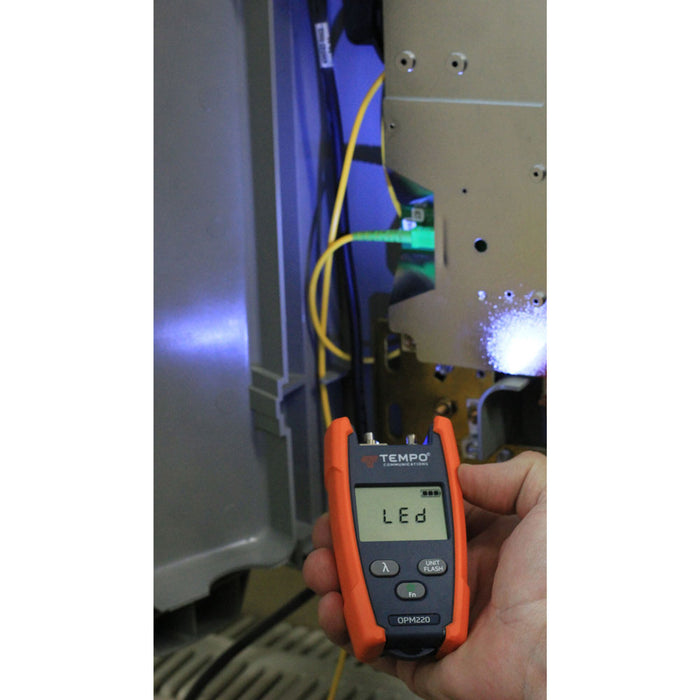

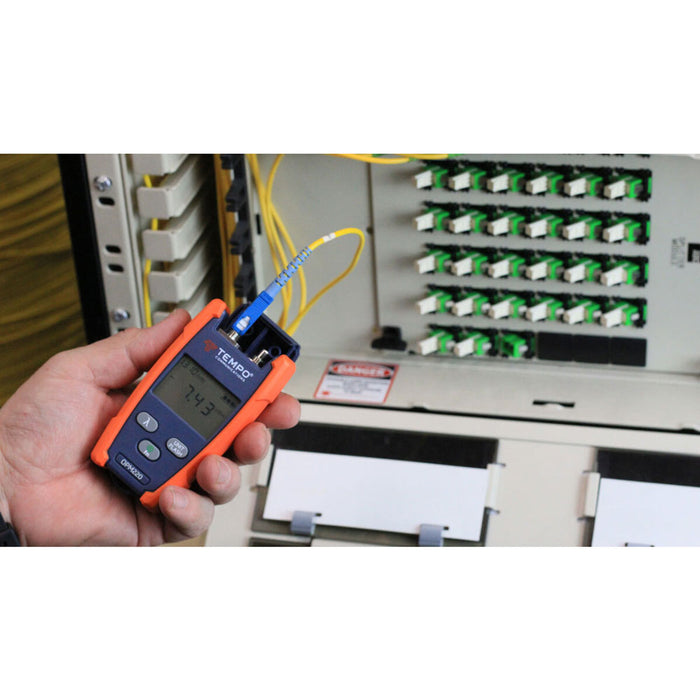

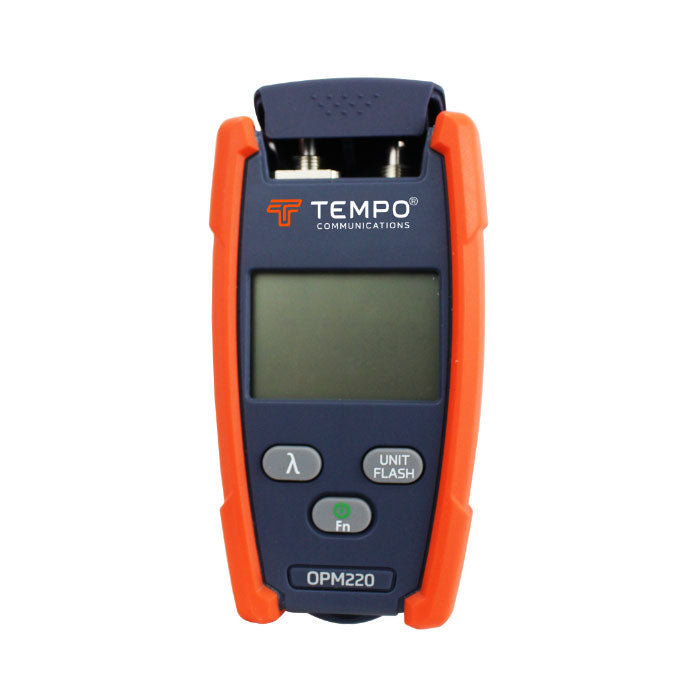

Tempo OPM210 Micro Optical Power Meter
SKU: TEMOPM210
OPM210
DESCRIPTION
Features
Specifications
Resources
Shipping & Delivery
Tempo OPM210 Micro Optical Power Meter
The Tempo Communications Micro Optical Power Meters (OPM210 and OPM220) are available in standard and high-power versions for the Telco and MSO markets. Absolute and referenced power measurements ensure fast and accurate loss budget and insertion loss measurements. When placing tones on the fiber using a Tempo Communications source provides the optical power meter will definitively identify fiber optic cables.
Discover the Tempo OPM210 Micro Optical Power Meter at Mektronics Australia – your trusted source for quality tools and equipment!
-
Standard and High Power Optical Power Meters
-
Measure Optical Power (dB, dBm & mW)
-
Accurate Insertion Loss Measurements
-
Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
-
Absolute or Referenced Optical Power Measurements
-

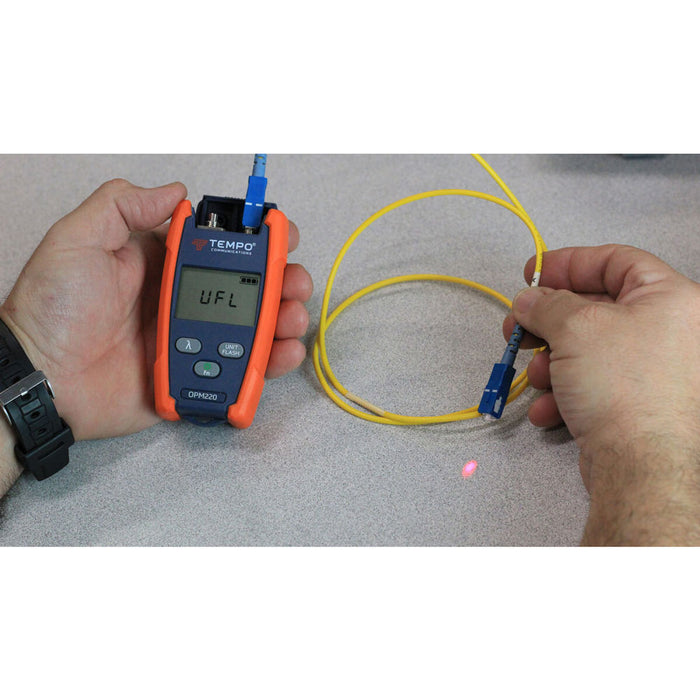

Integrated Visual Fault Locator
-
Integrated Flash Light
-
InGaAs detector for Maximum Sensitivity
-
Calibrated Wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm
-
Universal Bulkheads
-
Compatible with Singlemode and Multimode Networks
-
Auto Off or Continuous On Operation
-
AA Battery Operation
| Measuring Range | OPM210: -70 to + 10dBm (1310/1490/1550/1625); -60 to +10dBm (850/1300) |
| Measuring Range | OPM220: -50 to +26dBm (1310/1490/1550/1625); -40 to +26dBm (850/1300) |
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550, 1625nm |
| Display Resolution | 0.01dB |
| Connector | Universal 2.5mm |
| Accuracy | +/-0.25dB |
| Linearity | OPM210: +/-0.5dB (+10 to -3dBm); +/-0.1dB (-3 to -50dBm); +/-0.5dB (-50 to -70dBm) / OPM220: +/-0.5dB +26 to -3dBm; +/-0.1dB -3 to -50dBm |
| Wavelength Response | 700 - 1700nm |
| Detector Type | InGaAs |
| Power Supply | AAA x 2 Alkaline |
| Battery Life | >60 Hours (OPM mode) |
| Operating Temperature | -10 to +50°C (<90% Relative Humidity) |
| Storage Temperature | -20 to +60°C (<90% Relative Humidity) |
| VFL Wavelength | 650nm +/-20nm |
| VFL Output | Less than or equal to 1mW/ 2Hz |
| VFL Range | 4km |
| Size | 106 x 58 x 28mm (4.17 x 2.28 x 1.10”) |
| Weight | 106g (0.23lbs) |
| Automatic Shut-Off | 10 minutes of no activity |
| Certifications | CE, RoHS, CDRH, WEEE |
