Tempo FI-100 Fiber Identifier Kit

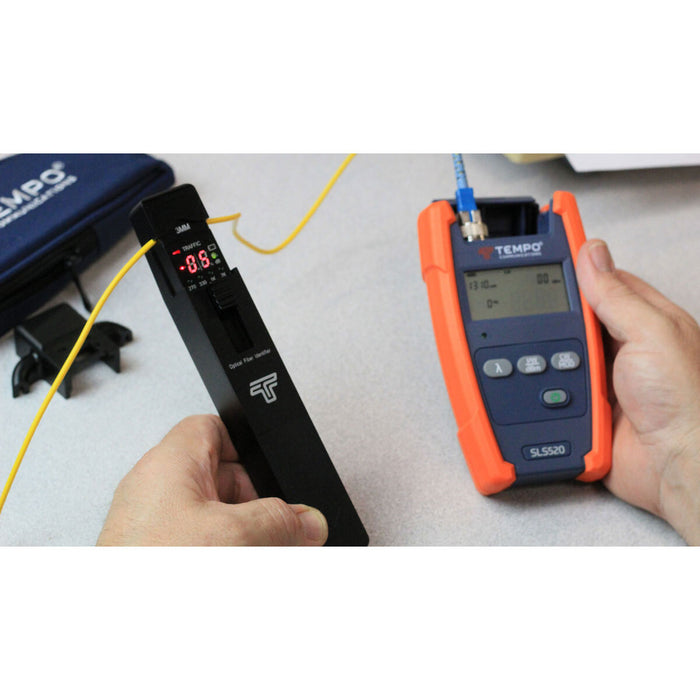

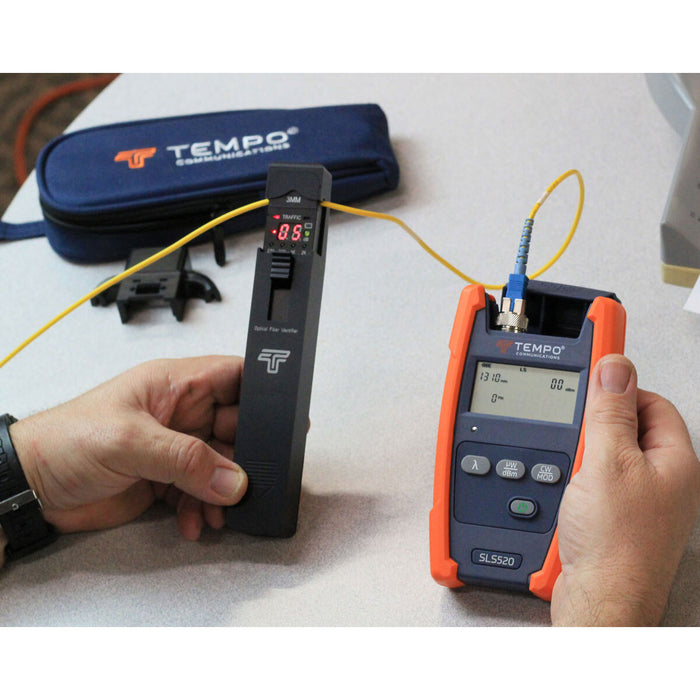

An important tool for all fiber technicians, the FI-100 Fiber Identifier detects the presence of signals on optical fibers. With the FI-100, technicians are able to trace fibers from end to end, verifying that live fibers are not disconnected. This also allows the technician to quickly determine the approximate core power and signal direction in a fiber optic cable without disconnecting the fiber.

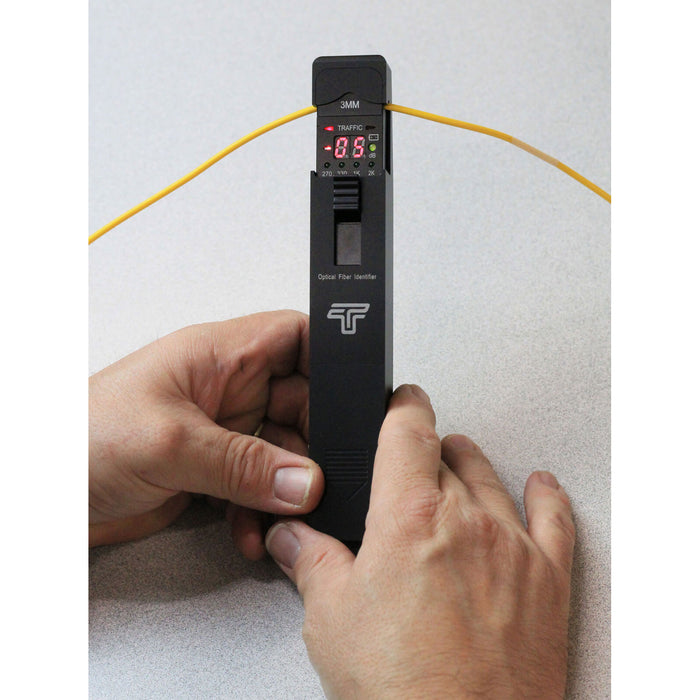

The fiber identifier creates a non-intrusive macro bend so that only a small insertion loss is created, thus the technician can probe fibers without causing an alarm condition. The FI-100 uses tone detect technology so that the technician can trace signals without disconnecting fibers with potentially critical services.

Discover the Tempo FI-100 Fiber Identifier Kit at Mektronics Australia – your trusted source for quality tools and equipment!

Measure approximate core power and direction of signal transmission
Fast and easy fiber identification using tone detect
Prevents the technician from disconnecting critical services during troubleshooting and identification processes
Low induced insertion loss
Able to sense the presence of light in bend insensitive fiber
Supports all common fibers including ribbon cables
Tone detect
Determines direction of light travel
Rugged and easy to use

Attribute Name	Attribute Value

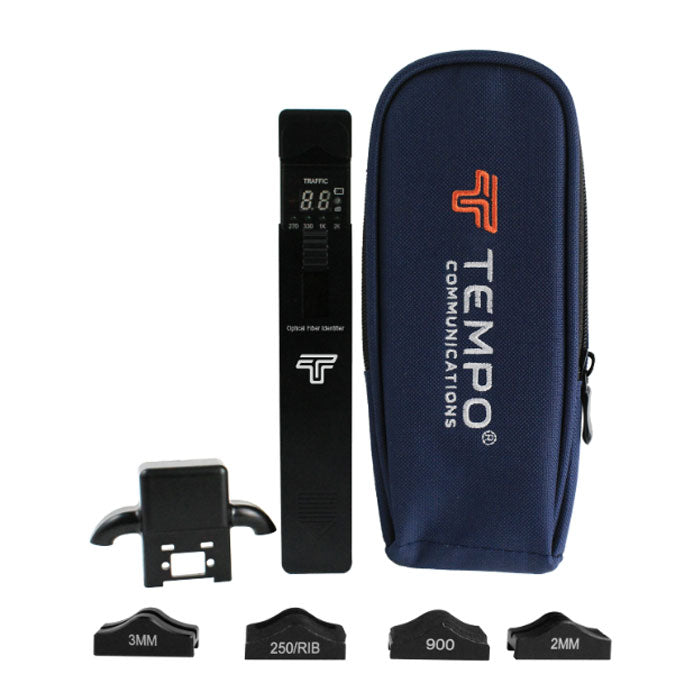

Adapter Size	250 micron / Ribbon, 900 micron, 2mm, 3mm
Battery	AAA (2) Alkaline
Certifications	WEEE, CE, FCC
Detector Type	InGaAs
Dimensions	196 X 30.5 X 27mm
Identified Signal Type	270Hz, 1kHz, 2kHz, 330Hz
Identified Wave LengthRange	800-1700nm
Insertion Loss Maximum	0.8dB (1310nm) 2.5dB (1550nm)
Insertion Loss Typical	0.3dB (1310nm) 1.5dB (1550nm)
Operating Temperature	-10 to +60°C

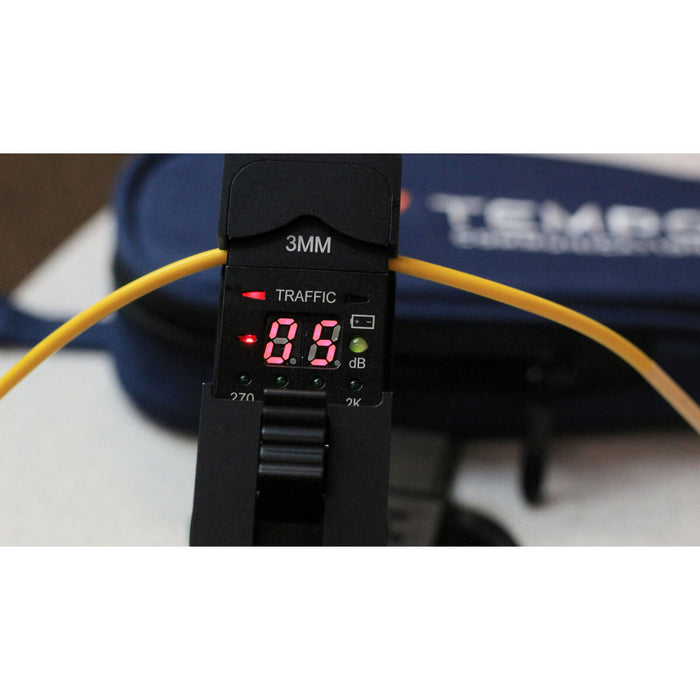

Signal Direction	LEFT AND RIGHT LED INDICATORS
Signal Direction Test Range	-46 TO +10dBm (1310nm)
Signal Power Test Range	-50 TO +10dBm (1550nm)
Storage Temperature	-25 to +70°C
Weight	195g
