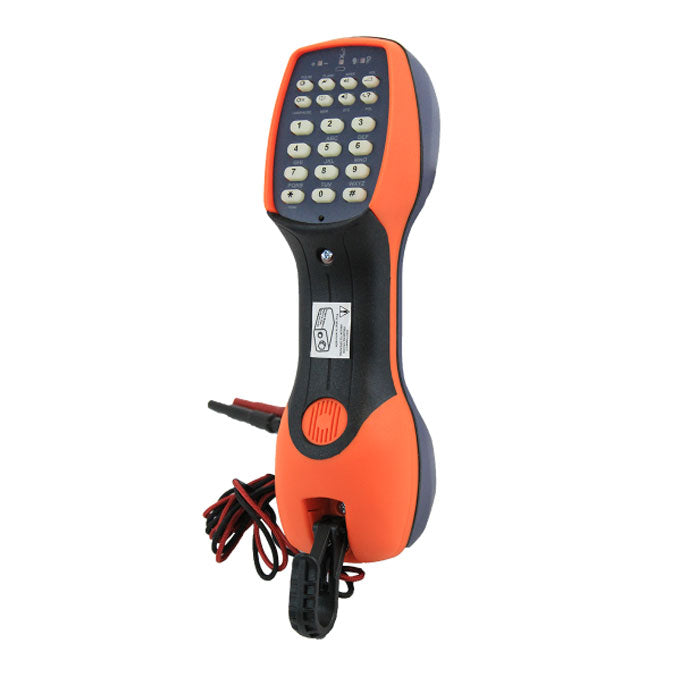

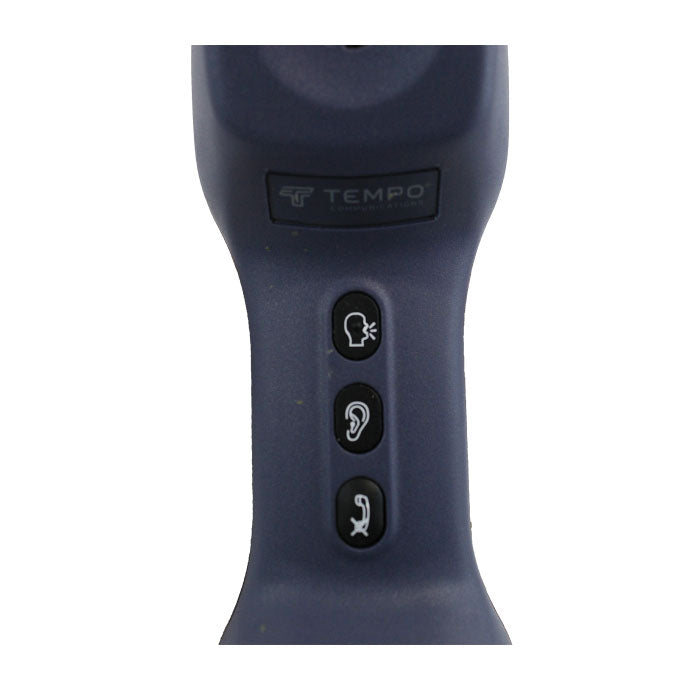

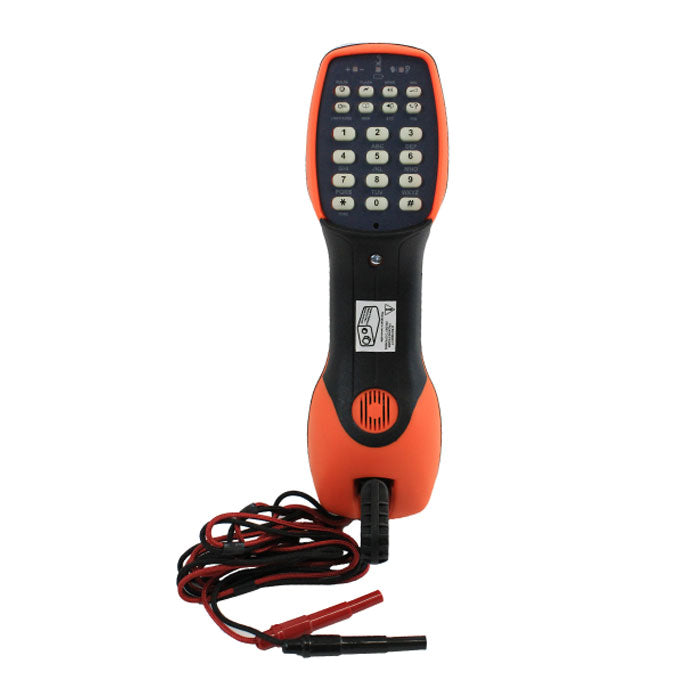

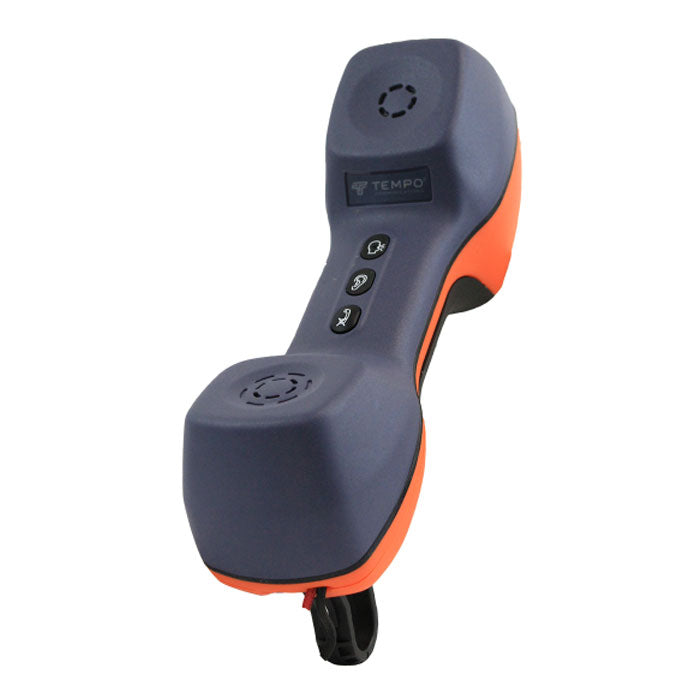

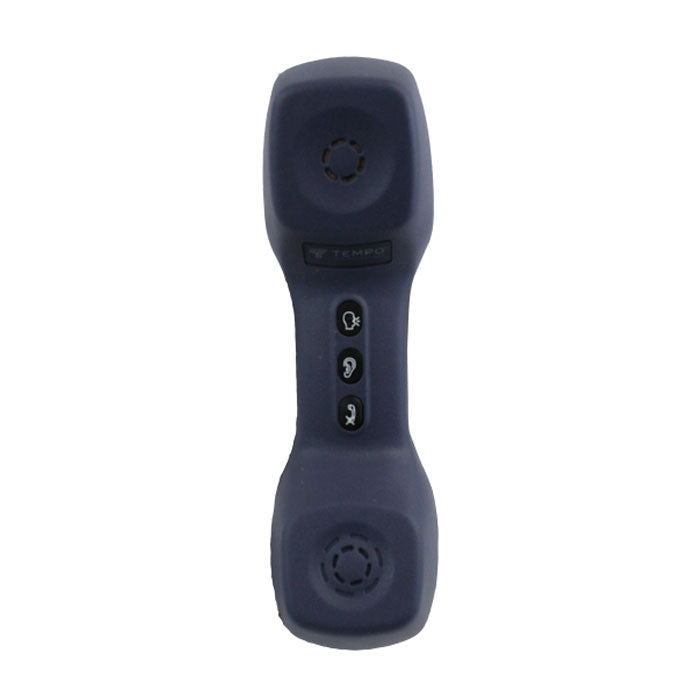

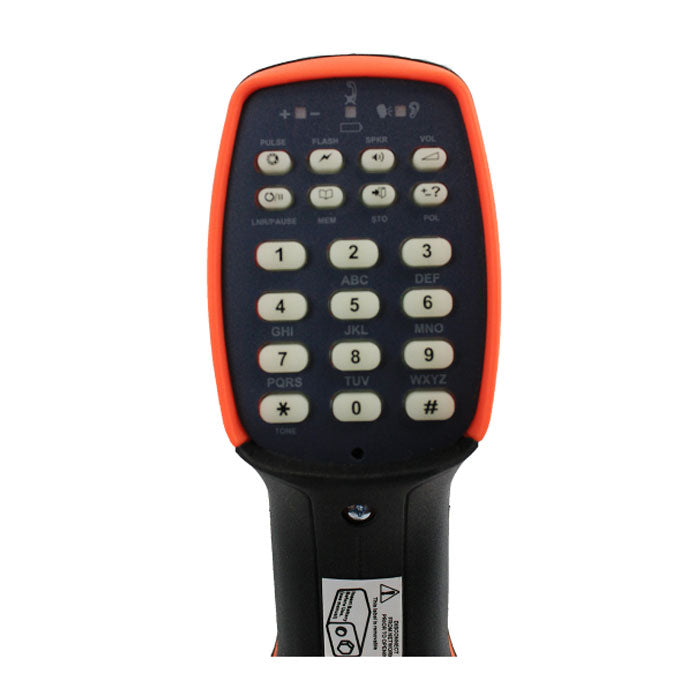

The DigAlert™ 361 (D361) models of the Nautilus test telephone range offer the same essential features that every telephone technician needs as the D350 models; super high impedance monitoring of the line so as to pose as little risk as possible to parallel data services plus protection and warning of conditions such as high voltage and excess current. Plus you have DigAlert that will warn of the presence of “out-of-band” signals such as digital services such as ADSL right through to the current VDSL2 services. Add to that “loudspeaker listening” capability and you have our most popular and versatile model of telephone buttset. Plus the D361 models include “full hands-free” loud-speaking telephony.
There are also two specialist models: One which has an additional circuit to detect metering pulses at 12 kHz that are still in limited use in some markets. The other includes a DigAlert detector circuit with wider bandwidth that is required for some customers who operate VDSL with a starting frequency somewhat higher than standard (> 150 kHz). Includes 3-year warranty.
Tempo's Nautilus range of extremely tough and weatherproof test telephones has been trusted by major global telephone companies since 1999. Built to withstand years of use literally "in the field", constructed from a super-tough polymer alloy and sealed with resilient and long life silicone seals. The range are available with Bell (north American) and ETSI (European and associated markets) settings. Various models are available within each telephony settings region with and without loud-speaking or full-hands-free and with and without DigAlert advanced "Digital Services Protection" lockout features. All models are equipped with overvoltage and overcurrent warning and lockout and all require a 9V battery for operation.
Digital Services Protection – In the “on hook” mode, on connection to a circuit, the Test Telephone sounds an alarm to alert the user to the presence of voltages above 75V to 80V DC. Such voltages are normally present on circuits carrying digital services. If the circuit is active, the user can select the high impedance MONITOR mode and listen to the sound to determine if the circuit is carrying digital services without disrupting the traffic. This is present in all models and can be overridden if the extended voltage is expected. If the unit detects a voltage above 120 V DC, this sounds a different alarm and cannot be overridden as this is definitely not a POTS line.
The DigAlert™ Digital Services Detection and Lockout feature present in D350 and D361 models adds another layer of protection for digital services carried on telephony twisted pairs. Detecting "out-of-band" signals and preventing immediate "off-hook" this helps ensure that users of digital services are disrupted as little as possible during maintenance works. Effectively preventing the old practice of "tag running" and helping to ensure technicians only go "off-hook" when they need to. The high impedance monitor and polarity test, plus built-in xDSL blocking filter help to minimize in service errors that may occur to the DSL service.
Discover the Tempo DigiAlert 361 Telephone Test Set at Mektronics Australia – your trusted source for quality tools and equipment!
Detection and Lockout of Data Services: T-1, E1, ISDN (BRI xDSL Filters and PRI), SW56, ADSL, HDSL, VDSL
Digital circuit safety
Voltage alarm and Lock-out
Loudspeaker listening
Volume control
Microphone mute
Talk/Monitor status LED
Battery low audible tone
Tone/ pulse dialing
Redial (10x24 digit memories)
Super Hi Impedance polarity
Super Hi Impedance monitor
High monitor level
Selectable ringer tones
High impact resistance
High chemical resistance
Replaceable premium cordset
Easy shoulder placement
Unique glass reinforced nylon quick release belt clip
Three-year warranty
Attribute Name | Attribute Value |
---|---|
ELECTRICAL: | |
Loop Limit | 5kΩ |
Minimum Loop Current | 10mA |
Max. Off-Hook DC Resistance | 300Ω |
Min. DC Resistance in: Idle Monitor and Lockout | 10MΩ @ 300VDC |
Min. AC Impedance in Monitor | 400kΩ @ 1kHz |
Span Power Lockout Range min: | 120VDC |
Span Power Lockout Range max: | 450VDC |
PULSE (ROTARY) DIAL: | |
Pulse rate | 10pps +/- 0.1pps |
Break / Make | 60/40% +/- 1% |
Interdigit Interval | 800 +/- 50mS |
DTMF OUTPUT: | |
Tone Level | -6dBm |
Tone Frequency error | ± 1% max |
Tone Twist | 2dB ±1dB |
Flash Duration | 100mS nominal |
MEMORY DIALING: | |
Stored Number Capacity | 10 plus LNR |
Stored Number Length | 32 digit/stored number |
PBX Pause | 4 seconds |
POWER SOURCE: | |
Battery | 1 x 9V Alkaline |
Battery Life: Nominal: | 3 months |
Continuous loudspeaking: | 30 hours |
Low Battery | Visual and audible indication |
Auto Shut-off | 5 minutes with no line DC, 20 with |
ENVIRONMENT: | |
Operating Temperature | -34°C - +60°C |
Storage Temperature | -50°C - +75°C |
Water Resistance | IP: 67 per IEC 60529 |
Physical Shock | 6m onto concrete |
PHYSICAL: | |
Length | 248mm |
Width | 70mm |
Height | 86mm |
Weight | 0.6kg |
WARRANTY: | |
Length: | 3 years |
