Image for Illustrative Purposes Only
Tagarno ZAP Flex Arm Advanced 690650
SKU: TAG690650
690650
DESCRIPTION
Features
Inclusions
Features
Specifications
Shipping & Delivery

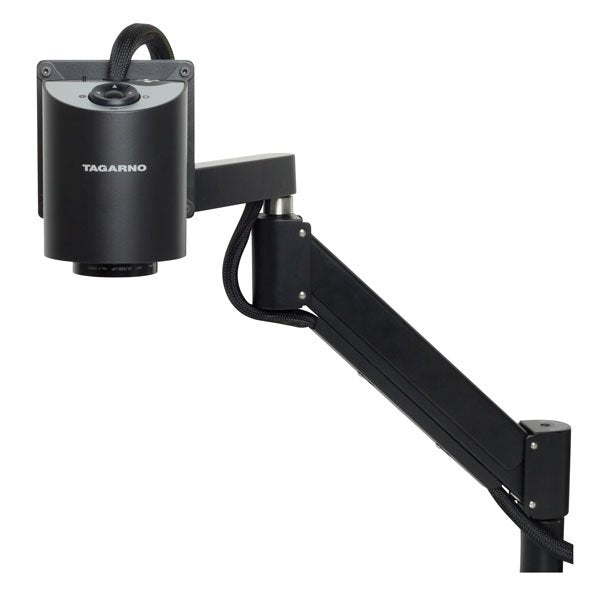

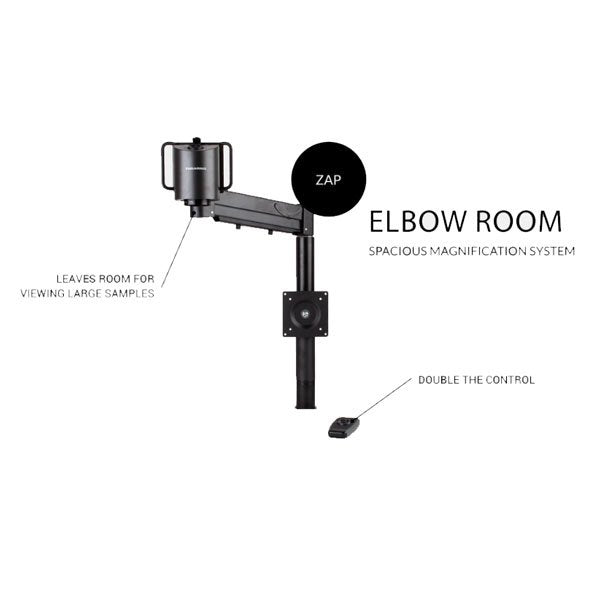

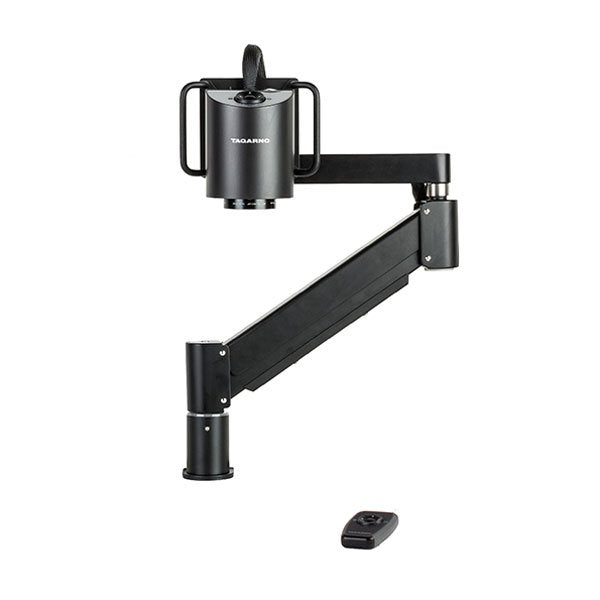

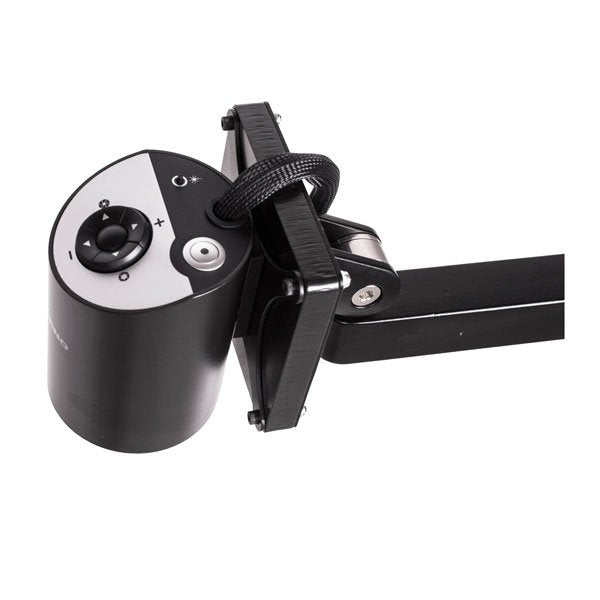

Tagarno ZAP Flex Arm Advanced 690650
TAGARNO FHD ZAP digital camera microscope from TAGARNO can be positioned over conveyors or larger inspection areas and be your alternative to a traditional compound microscope. TAGARNO FHD ZAP is born with a laser pointer, which enhances precision and accuracy when using this magnification system from TAGARNO. The laser also enables you to easily see where on the object the microscope is currently focusing.
Discover the Tagarno ZAP Flex Arm Advanced 690650 at Mektronics Australia – your trusted source for quality tools and equipment!
-
Magnification levels 0.8x - 128.8x on a 24" monitor
-
30 x optical zoom
-
60fps equals ultra-high frame rates
-
FULL HD / 1080p image quality
-
Capture images directly to the computer
-
Auto & Manual focus
-
Field of view: Min: 8.0mm/0.31" / max 600.0mm/23.62"
-
Lens to object distance: Min. 100mm/3.94" / max 500mm/19.67''
-
Working height: Adjustable
-
Working depth: Adjustable
-
TAGARNO FHD ZAP
-
XKEY control box
-
+4 Lens
-
Flex arm advanced
|
Image capture, Stand alone via USB |
No |
|
Image capture PC (via third-party software) |
Yes |
|
Auto & manual iris, gain & exposure time |
Yes |
|
Auto & manual focus |
Yes |
|
Snapshot |
No |
|
Presets |
Yes |
|
White balance calibration |
Yes |
|
Turn light on/off |
No |
|
Picture flip |
Yes |
|
Start and lock magnification |
No |
|
Closeup Lenses |
Yes |
|
Date and time |
Yes |
|
Ruler on/off and choose ruler color |
No |
|
Monitor width or Monitor Readback |
Yes |
|
Focus stackingNo |
No |
|
Measurement Application (TMA ) |
No |
|
Image format |
No |
|
Auto capture mode and interval |
No |
|
Choose system units |
Yes |
|
Laser pointer (on/off) |
Yes |
|
Control included |
Yes |
|
Lens |
Magnification on 24" monitor |
Field of view (Min / Max zoom) |
Lens to object distance |
|
+2 |
0.8x- 26.2x |
600.0mm/23.62" / 21.0mm/0.83" |
500mm/19.67'' |
|
+3 |
1.3x - 40.1x |
409.0mm/16.10" / 13.4mm/0.53" |
333mm/13.22" |
|
+4 |
1.7x - 52.7x |
290mm/11.42" / 11mm/0.41" |
250mm/9.84" |
|
+5 |
2.3x - 66.1x |
245mm/9,65" / 8.0mm/0.32 |
200mm/7.87" |
|
+10 (Achromatic) |
4.2x - 128.8x |
125mm/4.93" / 4.10mm/0.16" |
100mm/3.94" |
|
+10 (Plan - 1x) |
4.3x - 133x |
87 mm / 3.42'' / 4 mm / 0.16'' |
78 mm/3.07" |
|
Lens options |
+3, +4, +5, +10 |
|
Camera resolution |
FHD 1080p, 1920x1080@ 60/50/30/25Hz |
|
Zoom |
30x optical |
|
Included lens |
+4 (58mm) |
|
Working height |
Min: 78mm/3.07'' Max: 645mm/25.39'' (depends on flexarm) |
|
Working depth |
Adjustable |
|
Dimensions |
H: 121mm/4.76" R: 100mm/3.94" |
|
Weight |
1,5 kg/3.31 lbs |
|
Cable types included |
HDMI, USB 3.0 & ESD |
|
Output format |
HDMI & USB 3.0 (fixed cables) |
|
Aspect ratio |
16:9 |
