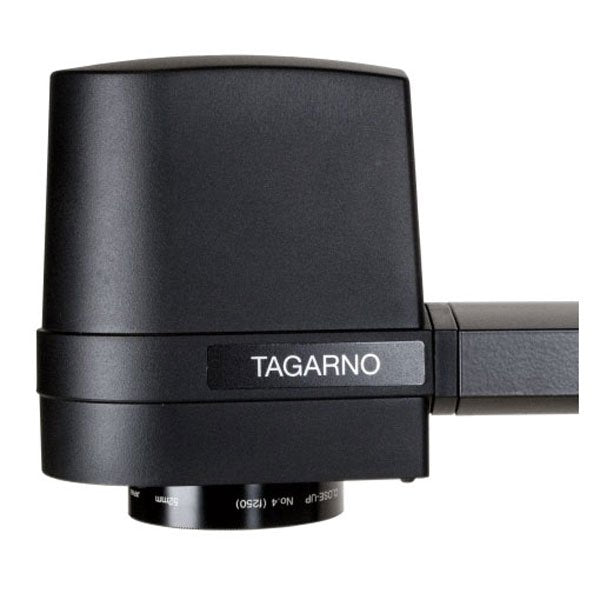

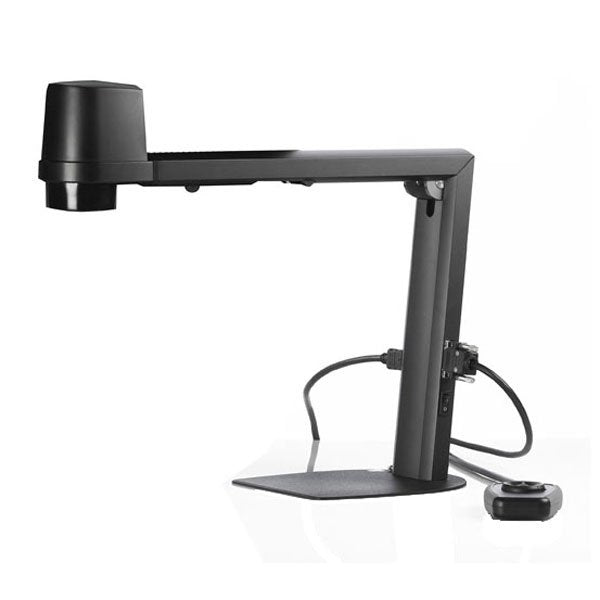

Tagarno FHD ZIP Digital Microscope System
Tagarno FHD ZIP Digital Microscope System
Tagarno FHD ZIP Digital Microscope System
Image for Illustrative Purposes Only
Tagarno Logo

Tagarno FHD ZIP Digital Microscope System

SKU: TAG600600

600600

$4,800.00

EX. GST
Regular price $6,477.78
$5,280.00
INC GST
Regular price $6,477.78
In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Specifications
Features
Shipping & Delivery

Tagarno FHD ZIP Digital Microscope System

With FULL HD in a digital microscope system you get an extremely sharp image with unsurpassed colour rendition. What you see on the monitor is exactly what is under the camera - no distortion, delay or interference.The built-in autofocus ensures a sharp image regardless of magnification size on the digital microscope system. The sensor in FULL HD microscope systems is 5 times more sensitive to light than previous versions. This provide you with ultra sharp images and excellent depth of field in a FULL HD digital microscope.

Includes: XKEY control box & +4 lens



Discover the Tagarno FHD ZIP Digital Microscope System at Mektronics Australia – your trusted source for quality tools and equipment!

  • Magnification levels 1.7x - 52,7x on a 24" monitor

  • 30 x optical zoom

  • 60fps equals ultra-high frame rates

  • FULL HD / 1080p image quality

  • Capture images directly to the computer

  • Auto & Manual focus

  • Field of view: Min: 11mm/0.43" / max 290mm/11.42"

  • Lens to object distance: 250mm/9.84"

  • Working height: 250mm/9.84"

  • Working depth: 280mm/11.02"

Further Information

DIGITAL MICROSCOPE WITH MAGNIFICATION UP TO 53X

With FULL HD 30x optical zoom the depth of field is significantly improved and the user has an improved overview at minimum zoom compared to other digital microscopes on the market. 30x optical zoom also enables higher magnification at maximum zoom on the digital microscope.

USB 3.0 DIGITAL MICROSCOPE

With the USB 3.0 requirements and PC options completes the digital microscope TAGARNO FHD ZIP. USB 3.0 makes it possible to stream and store uncompressed live video in FULL HD 1080p on PC with 60fps for further editing or distribution. USB 3.0 solutions also open the possibility of combining TAGARNO digital microscope solutions with 3rd party software such as Windows 8/10 Camera App



SMALL AND COMPACT DIGITAL MICROSCOPE

The digital microscope solution TAGARNO FHD ZIP is space-saving and easy to fold together and put away when it is not used.

SOFTWARE FOR FULL HD DIGITAL MICROSCOPE

To use the full potential of TAGARNO FHD ZIP, TAGARNO recommend using 3rd party software Windows 8 Camera App for saving and sharing imaging and live video recording when using respectively Windows 7 and 8 Operating Systems combined with the digital microscope system.

Lens

Magnification on 24" monitor

Field of view (Min / Max zoom)

Lens to object distance

+4

1.7x - 52.7x

290mm/11.42" / 11mm/0.43"

250mm/9.84"

Lens options

+4

Camera resolution

FHD 1080p, 1920x1080@ 60/50/30/25Hz

Zoom

30x optical

Included lens

+4 (58mm)

Working height

Min: 245mm/9.65'''

Working depth

280mm/11.02"

Dimensions

H: 350mm/13.78" W: 155mm/6.10" D: 386mm/15.20"

Weight

2,0 kg/4.4 lbs

Cable types included

Mini-HDMI - HDMI & Micro-USB - USB 3.0

Output format

Mini-HDMI & Micro-USB 3.0

Aspect ratio

16:9

Image capture, Stand alone via USB

No

Image capture PC (via third-party software)

Yes

Auto & manual iris, gain & exposure time

Yes

Auto & manual focus

Yes

Snapshot

No

Presets

Yes

White balance calibration

Yes

Turn light on/off

No

Picture flip

Yes

Start and lock magnification

No

Closeup Lenses

Yes

Date and time

Yes

Ruler on/off and choose ruler color

No

Monitor width or Monitor Readback

Yes

Focus stackingNo

No

Measurement Application (TMA )

No

Image format

No

Auto capture mode and interval

No

Choose system units

Yes

Laser pointer (on/off)

Yes

Control included

Yes
