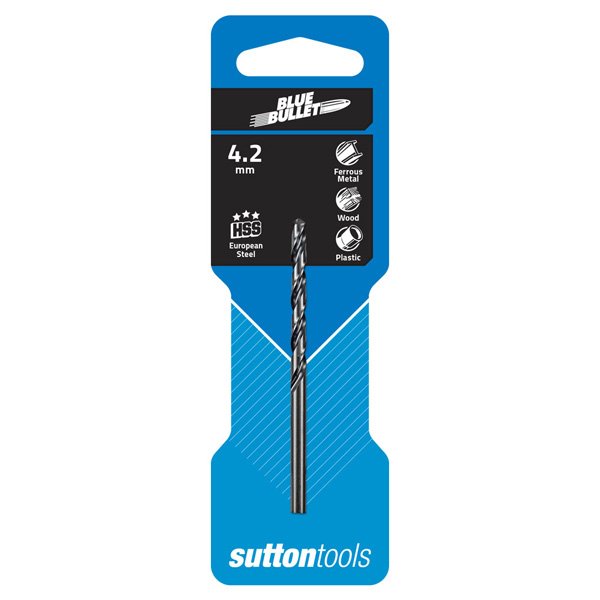

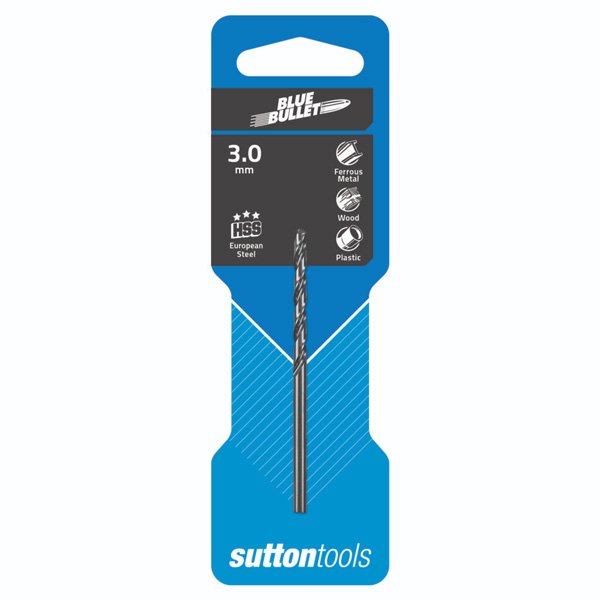

Sutton D129 Jobber Blue Bullet Drill Bit HSS - Metric
Sutton Tools Blue Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling ferrous metals. The blue finish reduces chip build up on the cutting edge and is a better choice when drilling ferrous materials.
Discover the Sutton D129 Jobber Blue Bullet Drill Bit HSS - Metric at Mektronics Australia – your trusted source for quality tools and equipment!
-
118 ° web thinned point reduces the amount of thrust required
-
Precision engineered parallel shank for accurate hole size
-
Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
-
Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels
-
Designation: N
-
Material: HSS
-
Finish: Blu
-
Max Cut Depth: 5xD
-
Shank Form: A
-
Helix Angle: R30
-
x: als
-
Point Tolerance: h8
-
Point Angle: 118 °
-
Point Form: Form A
-
Cutting Edges: ul
-
Standard: ANSI B94-11 / DIN338
-
D1290100 - 1mm
-
D1290150 - 1.5mm
-
D1290250 - 2.5mm
-
D1290330 - 3.3mm
-
D1290450 - 4.5mm
-
D1290500 - 5mm
-

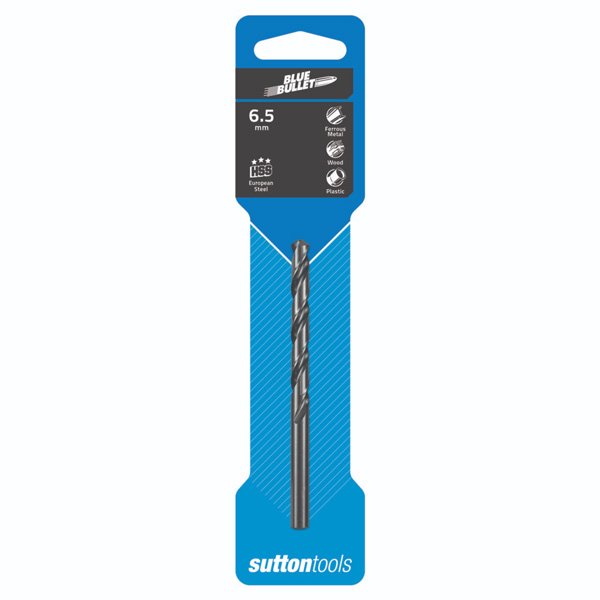

D1290650 - 6.5mm
-

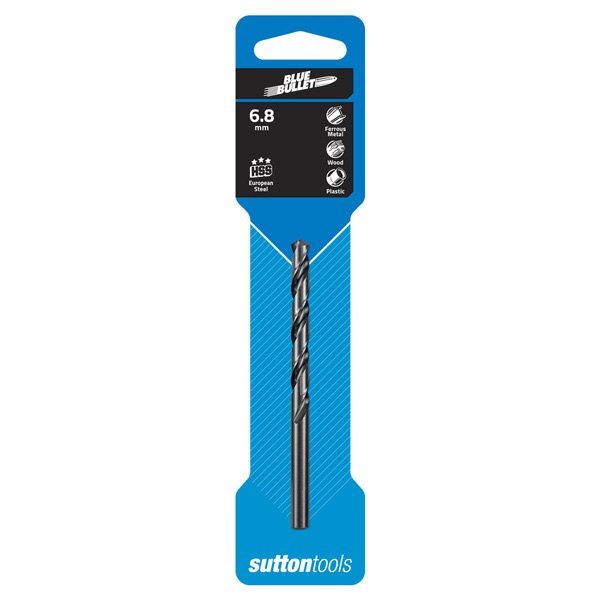

D1290680 - 6.8mm
-
D1290700 - 7mm
-
D1290750 - 7.5mm
-
D1290950 - 9.5mm
-
D1291000 - 10mm
-
D1291020 - 10.2mm
-
D1291050 - 10.5mm
-
D1291100 - 11mm
-
D1291150 - 11.5mm
-

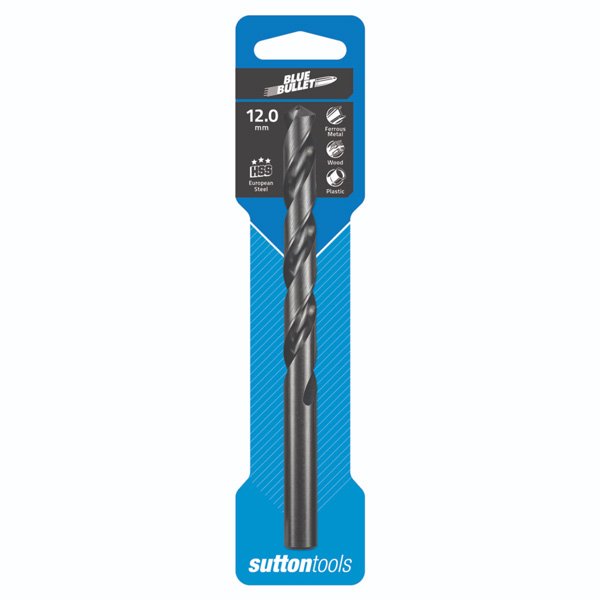

D1291200 - 12mm
-

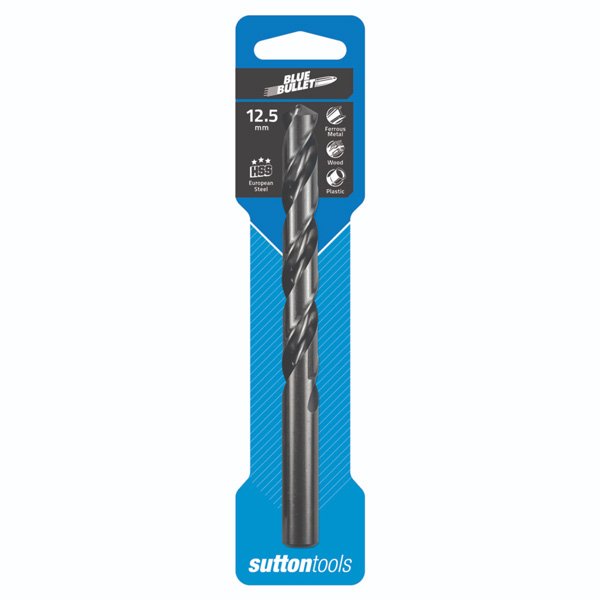

D1291250 - 12.5mm
-
D1291300 - 13mm
