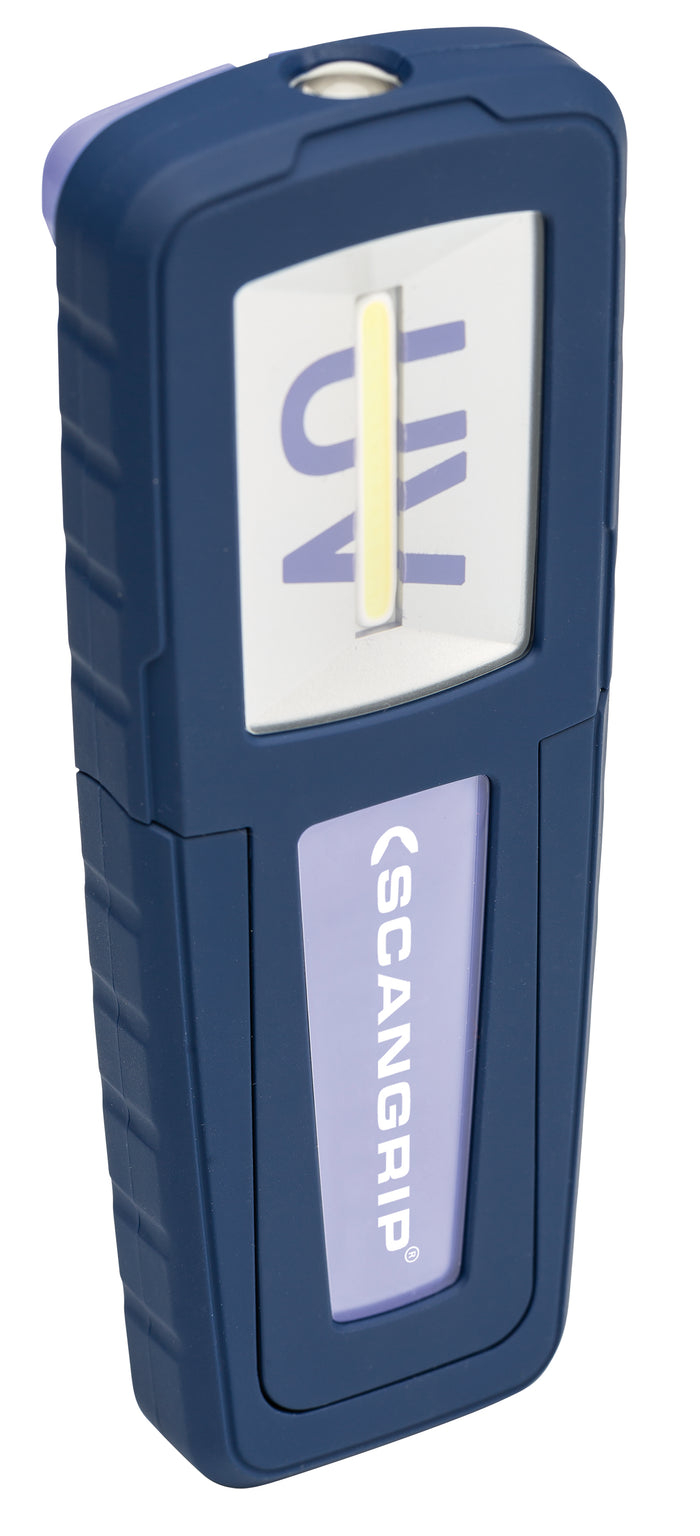

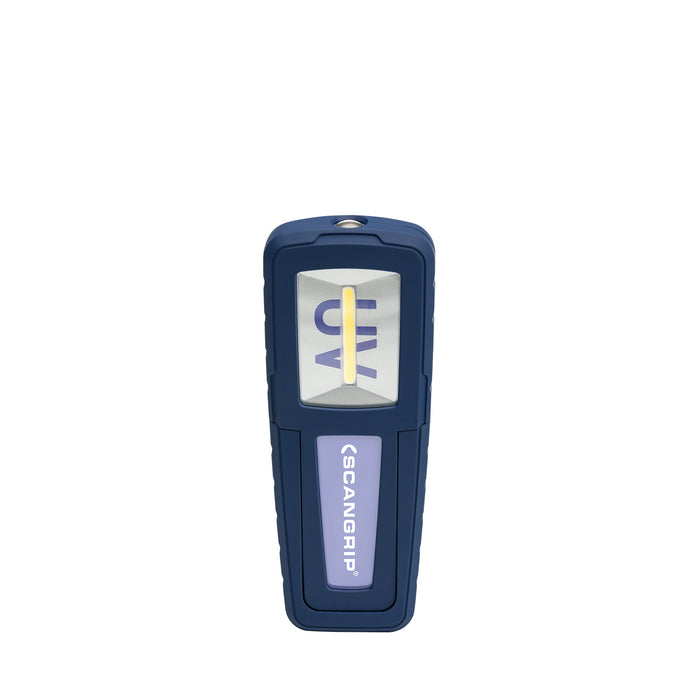

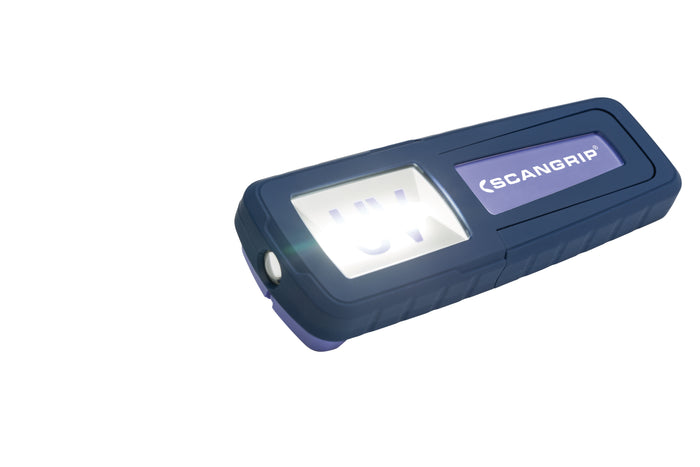

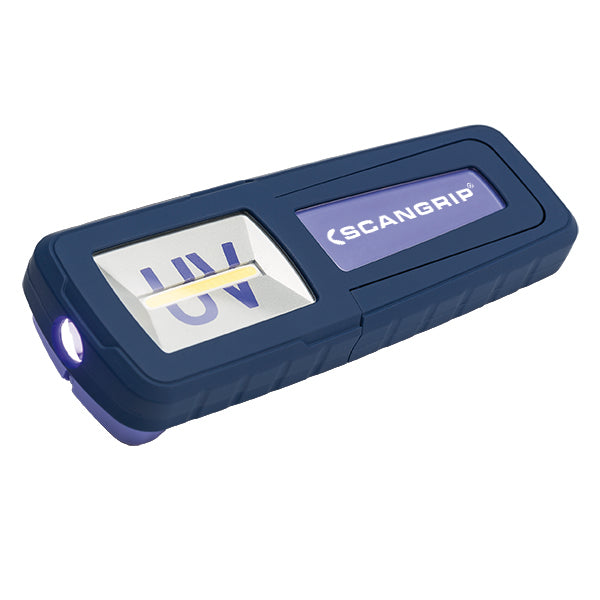

Scangrip UV-FORM Rechargeable LED Work Light with UV-Light on Top
SKU: HEL03.5408XX
03.5408XX
Overview
Contents
Specifications
Shipping & Delivery

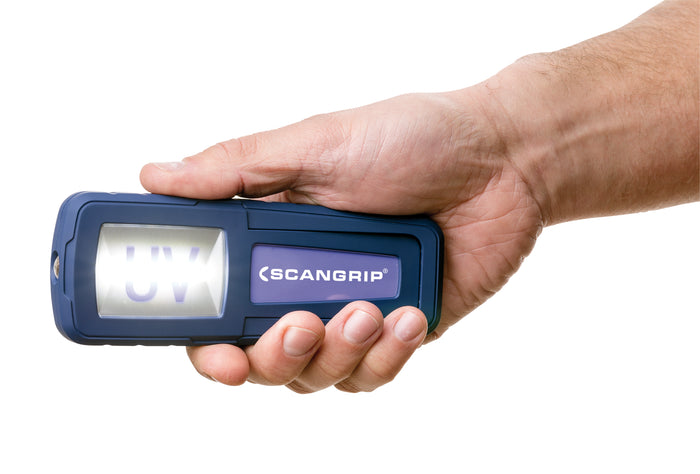

UV-FORM is a rechargeable LED hand lamp with powerful 1.5W UV-light on the top.
The rechargeable inspection lamp is fitted with the new COB LED strip light providing a unique powerful and completely uniform illumination. Basically, you get a universal indispensable handheld LED light and UV detection in one, and at the same time it replaces special UV detection lights.
The ultraviolet light is intended for leak detection in air-conditioning systems by means of trace elements. Also useful for leak detection of larger, complex refrigeration/freezing appliances, process-cooling systems, heat pump systems etc.

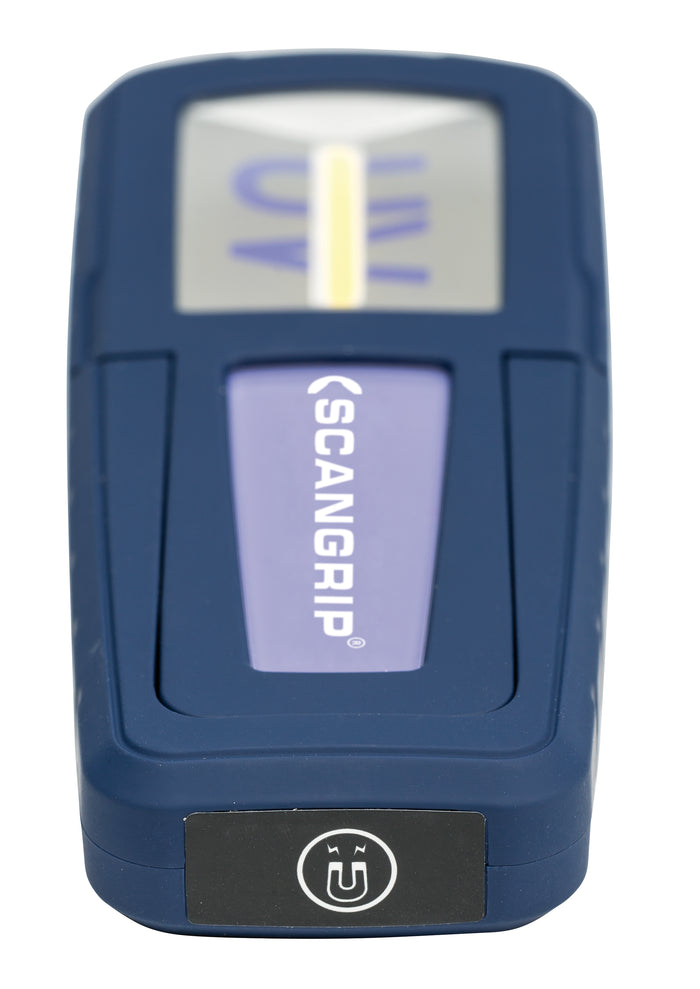

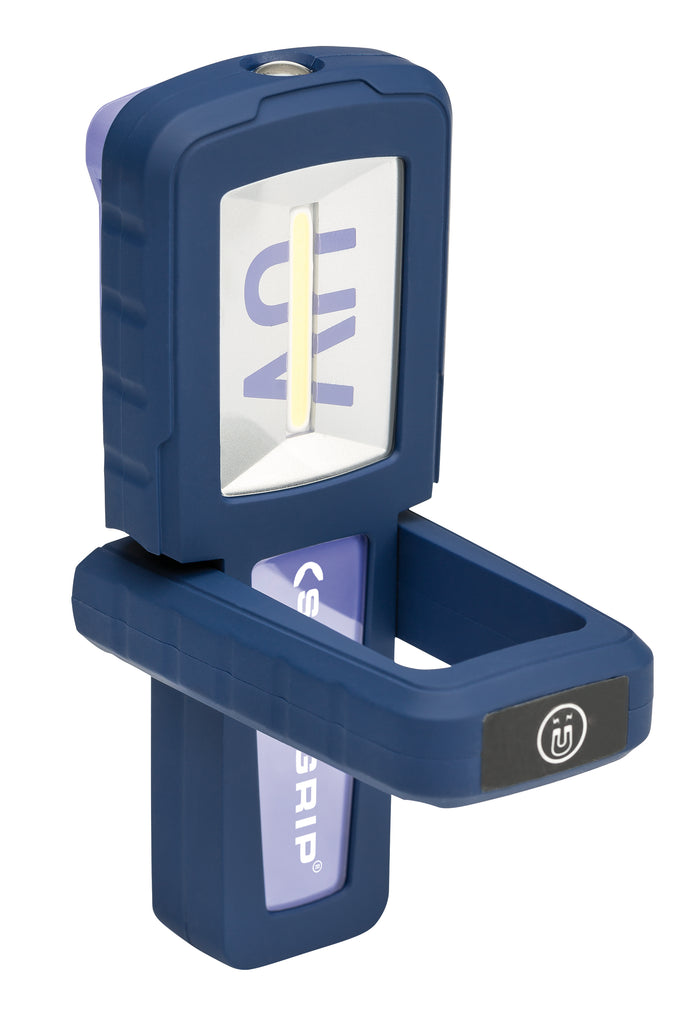

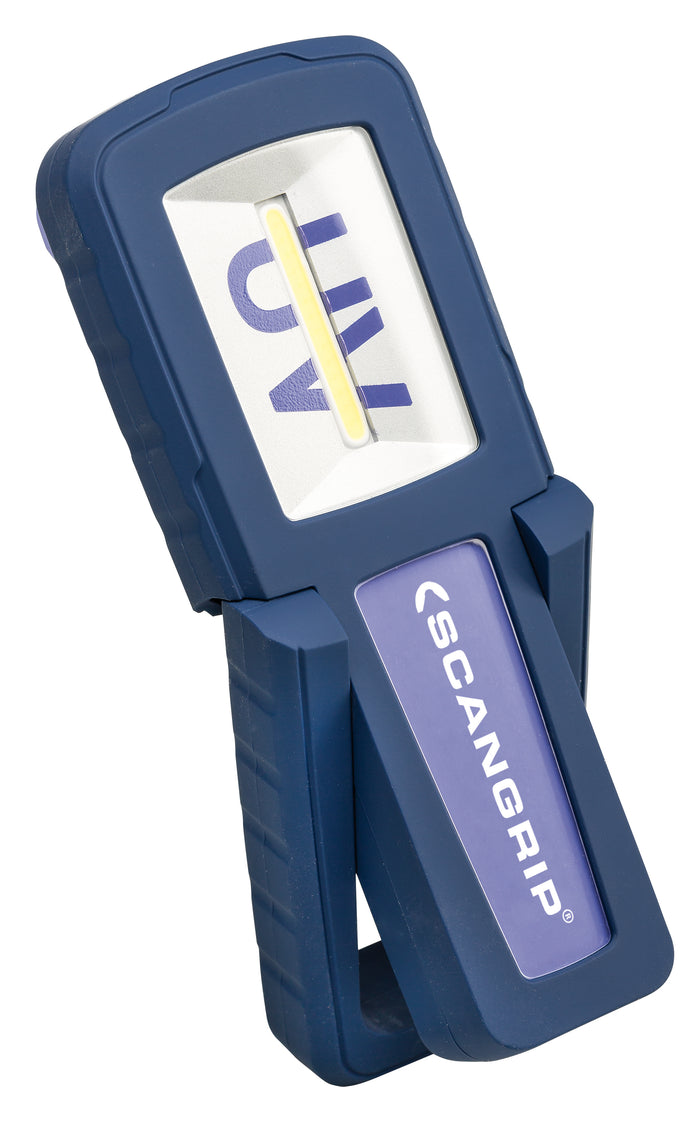

UV-FORM’s flexible lamp head tilts up to 180 degrees. UV-FORM is supplied with a strong built-in magnet for easy positioning in the workspace and a turnable sturdy hook designed to fit the work belt.
Why choose UV-FORM?
-
Universal work light and UV detection in one
-
Perfect for leak detection
-

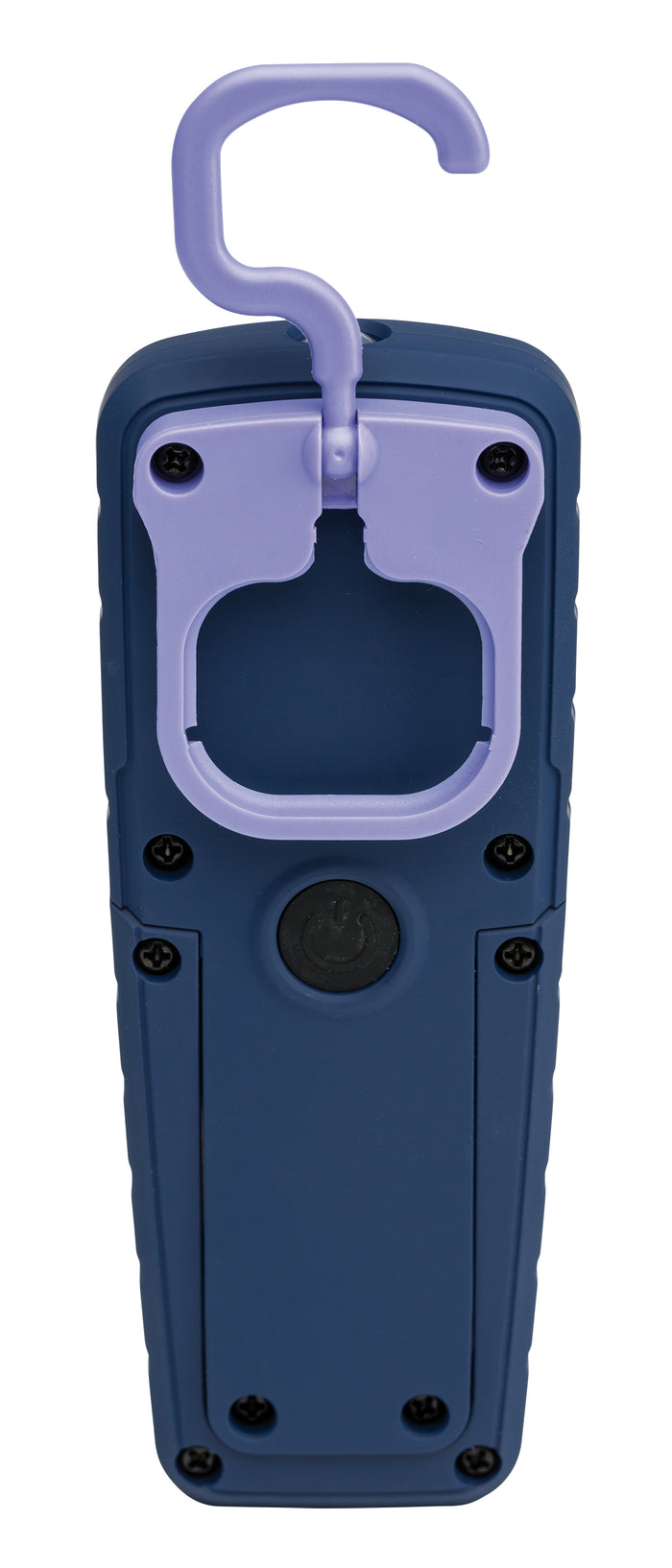

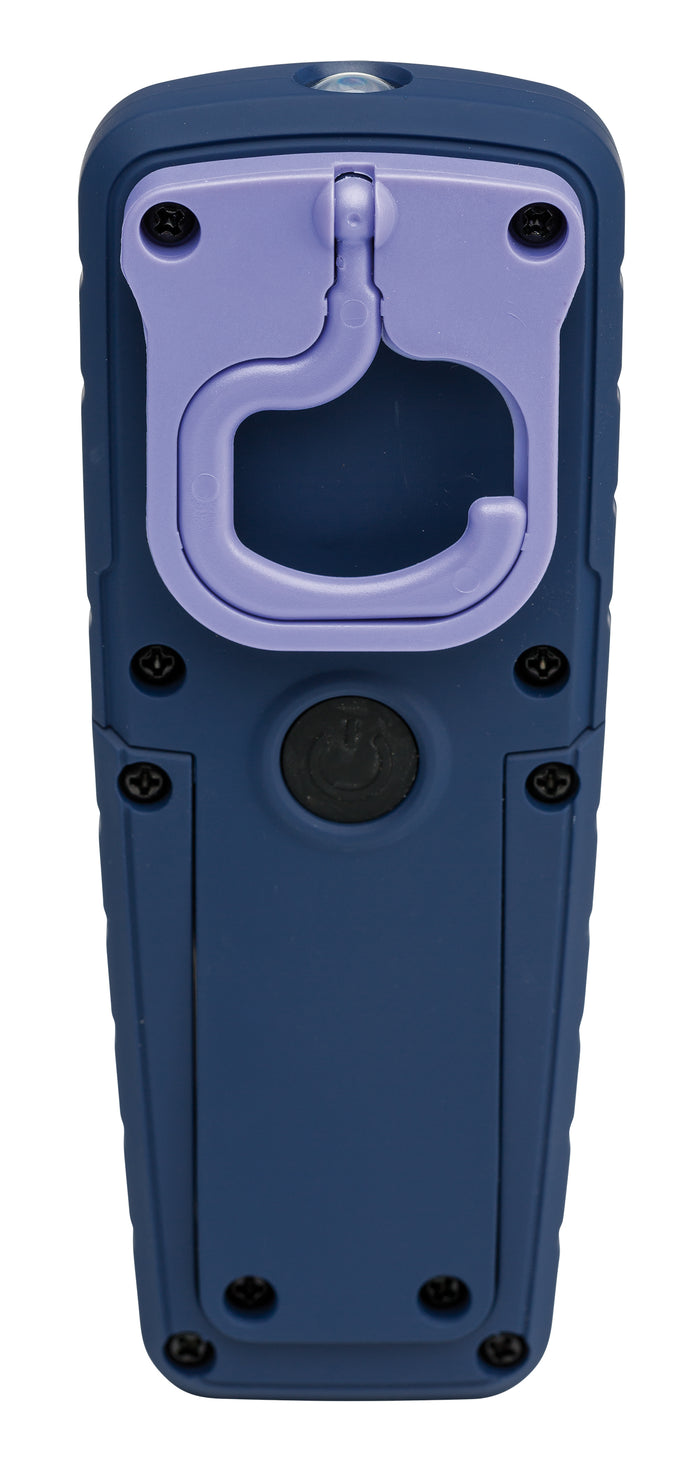

Place the lamp anywhere you want with the built-in magnet or carry the hand lamp in your work belt with the sturdy and turnable hook
-

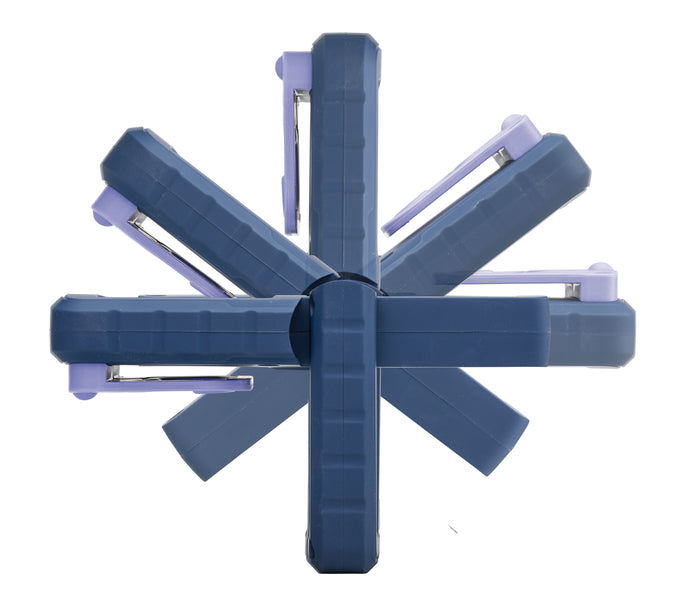

A 180° tiltable lamp head for maximum flexibility
Discover the Scangrip UV-FORM Rechargeable LED Work Light with UV-Light on Top at Mektronics Australia – your trusted source for quality tools and equipment!
-
Lamp
-
Charger cable
-
Manual
Main Light
-
Luminous Flux, Max (Lumen): 250
-
Luminous Flux, Min (Lumen): 215
-
Illuminance, Max (Lux@0,5m): 400
-
Illuminance, Min (Lux@0,5m): 200
-
Illuminance Distance (Meter): 0.50
-
Light Source: COB LED
-
LED performance (lm/w): 128
-
CCT (Kelvin): 6000
-
CRI: Ra > 80
-
Adjustable Light Output: 2 steps
Secondary Light
-
Illuminance, Max (Lux): 0
-
CRI: Ra >80
-
CCT: 0
-
Light Source Secondary: High Power UV LED
-
Illuminance Distance (Meter): 0.50
Electrical
-
Power source: Rechargeable Battery
-
Battery type: Li-ion
-
Battery capacity (mAh): 1600
-
Battery voltage (V): 3.70
-
Cable: 1 m USB to mini DC
-
Charging voltage DC (V): 5.00
-
Charging current (A): 1.00
-
Charging input voltage (V): 100-240V AC 50/60Hz
-
Max Power Consumption (W): 3.00
-
Charger included: No
Operation
-
Operating time with min. lumen (hours): 5.00
-
Charging time (hours): 3.00
-
Ingress protection: IP20
-
Operating temperature: -10 °C to +40 °C
-
Impact resistance (meter): 0.00
-
Operating time with max. lumen (hours): 2.50
