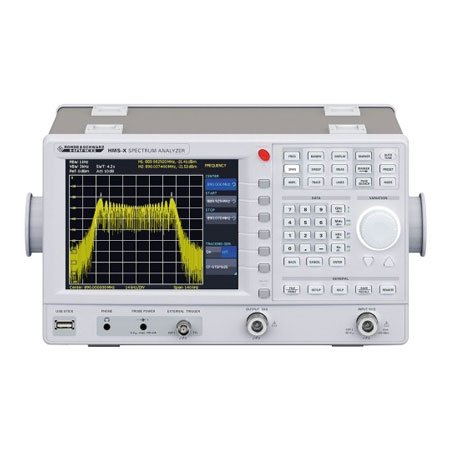

Rohde & Schwarz HMS-X Spectrum Analyzer
SKU: RSHMS-X
HMS-X
About
Specifications
Shipping & Delivery
Rohde & Schwarz HMS-X Spectrum Analyzer
Rohde & Schwarz HMS-X Spectrum Analyzer Key Facts- Frequency range: 100 kHz to 1.6 GHz/3 GHz 1)
- Spectral purity > –100 dBc(1Hz) (at 100 kHz)
- Sweep: from 20 ms to 1000 s
- Detectors: auto/min./max. peak, sample, RMS, average, quasi-peak 2)
- Various markers/delta markers and peak functions
- Tracking generator 3)
- Frequency range: 5 MHz to 1.6 GHz / 3 GHz 1)
- Output level: –20 dBm to 0 dBm
- Direct export of data to USB flash drive, RS-232/USB dual interface for remote control
- Fanless design and fast boot time
1) With HMS-3G (HV212) option.
2) With HMS-EMC (HV213) option.
3) With HMS-TG (HV211) option.
|
Discover the Rohde & Schwarz HMS-X Spectrum Analyzer at Mektronics Australia – your trusted source for quality tools and equipment! |
||
| Model overview | Base unit | with EMC option |
| Amplitude measurement range | –104 dBm to +20 dBm | –114 dBm to +20 dBm |
| DANL | –104 dBm (typ.) | –135 dBm (typ.) |
| Resolution bandwidth | 10 kHz to 1 MHz, 200 kHz (–3 dB) | 100 Hz to 1 MHz, 200 kHz (–3 dB) |
| 200 Hz, 9 kHz, 120 kHz, 1 MHz (–6 dB) |
||
| Video bandwidth | 1 kHz to 1 MHz | 10 Hz to 1 MHz |
