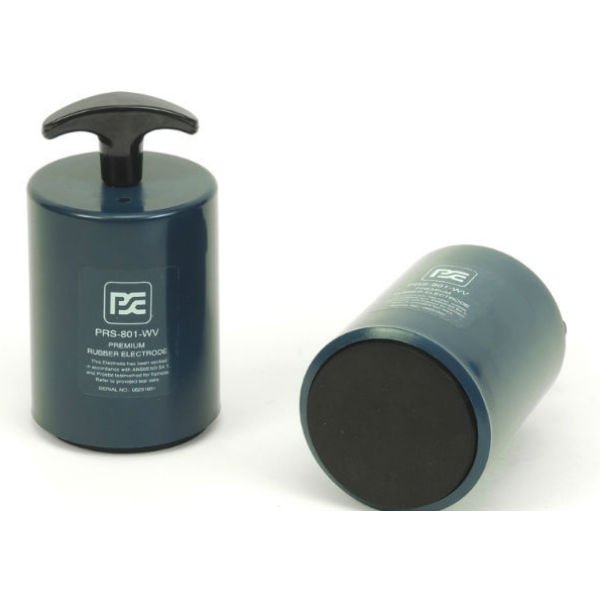

Image for Illustrative Purposes Only
Prostat PRS-801-WV Premium Conductive Rubber Electrode
SKU: PROPRS-801WV
PRS-801WV
DESCRIPTION
Features
Specifications
Shipping & Delivery
Prostat PRS-801-WV Premium Conductive Rubber Electrode
- The PRS-801-WV Premium Conductive Rubber Electrodes are ideal for qualifying or certifying newly installed ESD Floors, Worksurfaces and other ESD control products. While virtually all 5 pound, 2.5 inch electrodes in today’s industry are perfect when delivered to their end users, over time they may change considerably.
- The Prostat Premium Electrodes are measured as described in ANSI/ESD S4.1 for electrode diameter, durometer and resistance of the pad. In addition, these electrodes are electrically tested for flatness using the Prostat PRV-813 Conductive Rubber Electrode Verifier.
- A certificate of calibration including all data, treaceable to NIST is provided at no additional cost.
Discover the Prostat PRS-801-WV Premium Conductive Rubber Electrode at Mektronics Australia – your trusted source for quality tools and equipment!
-
Ideal when Qualifying or Cerftifying Material & Installation
-
Each electrode has a resistance of less than 10 ohms
-
Flatness is measured and within Prostat's Specs
-
Capped to protect the pad against deformation
-
Ceritificate of Calibration provided for each Premium Electrode
WEIGHT: 5 lbs (2.27 kg) each ±2oz
DIAMETER OF PAD CONTACT SURFACE: 2.5 ± 0.1 inches (63.5 ± 0.25mm)
HEIGHT: With Handle: 5.0 inches (127mm); Without Handle: 3.75 inches (95.25mm)
PAD MATERIAL: Durometer hardness of 50-70
RESISTANCE: Resistance between 2 each electrodes on a clean metal plate should measure < 1,000 ohms at 10 volts. 1 each electrode should measure < 500 ohms at 10 volts on a clean metal plate.
The PRS-801-WV premium electrodes measure < 10 ohms at 10 volts on a clean nickel plated, polished brass metal plate and complies with the following ANSI/ESD Standards:
-
ANSI/ESD STM2.1 - Garments
-
ANSI/ESD S4.1 - Worksurfaces
-
ANSI/ESD STM7.1 - Flooring
-
ANSI/ESD STM12.1 - Seating & Mobile Equipment
-
As outlined in TR53 Compliance Verification of ESD Protective Equipment and Materials
CONNECTION: One female banana receptacle
COLOR: Blue
HANDLE COLOR: Black
CAP COLOR: Red
