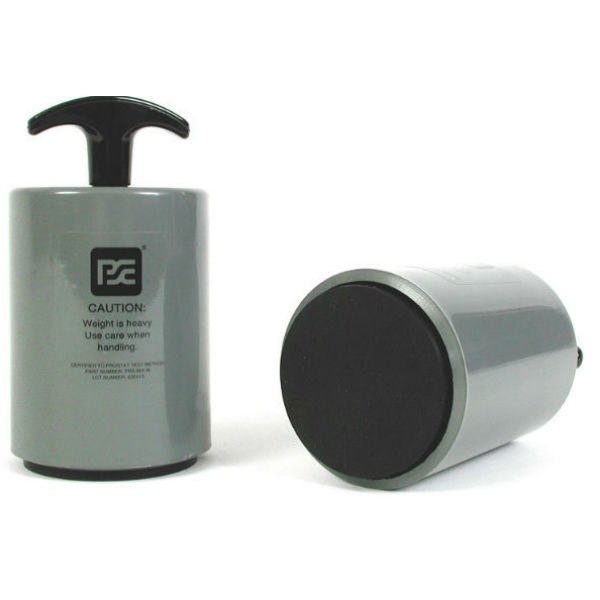

Prostat PRS-801-W 5lb Conductive Rubber Electrode

• Used in point to point and point to ground resistance testing.

• Provides repeatable measurements in accordance with ESD Association standards.

• Weighs 5 lbs. (2.27Kg) each ± 2 oz.

• Durometer hardness of 50-70.

• Less than 1,000 ohms resistance at 10V on metal test plate

WEIGHT: 5 lbs (2.27 kg) each ±2oz

DIAMETER OF PAD CONTACT SURFACE: 2.5 ± 0.1 inches (63.5 ± 0.25mm)

HEIGHT: With Handle: 5.0 inches (127mm); Without Handle: 3.75 inches (95.25mm)

PAD MATERIAL: Durometer hardness of 50-70

RESISTANCE: Resistance between 2 each electrodes on a clean metal plate should measure < 1,000 ohms at 10 volts. 1 each electrode should measure < 500 ohms at 10 volts on a clean metal plate.

The PRS-801-W electrodes comply with the following ANSI/ESD Standards:

• ANSI/ESD STM2.1 - Garments

• ANSI/ESD S4.1 - Worksurfaces

• ANSI/ESD STM7.1 - Flooring

• ANSI/ESD STM12.1 - Seating & Mobile Equipment

• As outlined in TR53 Compliance Verification of ESD Protective Equipment and Materials

CONNECTION: One female banana receptacle

COLOR: Grey

HANDLE COLOR: Black

CAP COLOR: Red
