Prostat PRF-922B Miniature Two-Point Probe Set

• The PRF-922B Miniature Two Point probe accurately measures point-to-point resistance of small areas.

• Like the PRF-912B Miniature Concentric Ring, the PRF-922B is capable of measurements up to 1.0x1012 ohms.

• Built-in distance stops provide consistent electrode to sample pressure for developing repeatable measurements.

• Use the PRF-922B to measure small material samples, hard to assess molded areas, edges of parts, tray or tape cells and other very small objects and surfaces.

• The assembly is supplied with replaceable conductive electrode covers to enhance contact resistance on irregular surfaces and composition materials.

• Thus, measurements may be made with either the gold plated electrode contacts, or via conductive rubber covers.

• The PRF-922B is designed to be used with a precision, wide range resistance instrument, such as the PRS-801 Resistance System, or PRS-812 Resistance Meter or PAS-853B Wide Range Ohmmeter, and an insulated test bed.

• When used with the supplied conductive rubber boots, it provides point-to-point resistance measurements in accordance with ANSI/ESD STM11.13.

RANGE: 0.9Ω to ≥1.0x1012Ω (1.0E+12)

DIMENSIONS

Length: 7.0 inches (178 mm) without probe cover.
7.70 inches (195mm) with probe cover.
Probe diameter 0.5 inches (12.7mm).
Probe cover outer diameter 0.63 inches (16mm).

PROBE WEIGHT: 2.0 ounces (58 grams)

FINISH: Black anodized

DIELECTRIC MATERIAL: Black Delran

CONTACT SIZE:

Electronic quality gold plated contact probes: 0.1-inch (2.54mm) diameter.

Conductive synthetic rubber contact boots: 0.125-inch (3.18mm) diameter.

Probes center-to-center spacing: 0.250 inch (6.35mm)

MIN. SAMPLE: 0.32 inches (8.2mm) diameter

PROBE SPRING: Force/Test 3.5 pounds (1.6 kg)

PROBE TRAVEL: 0.25 inches (6.4mm) Self-limited.

CONNECTION: BNC with outer source and inner sense connections

CABLE: RG-174 coaxial cable equipped with insulated BNC couplers, and BNC/Banana adapter for connection to Prostat PRS-801 Resistance System.

POWER: Not applicable. Fixture powered by resistance instrument.

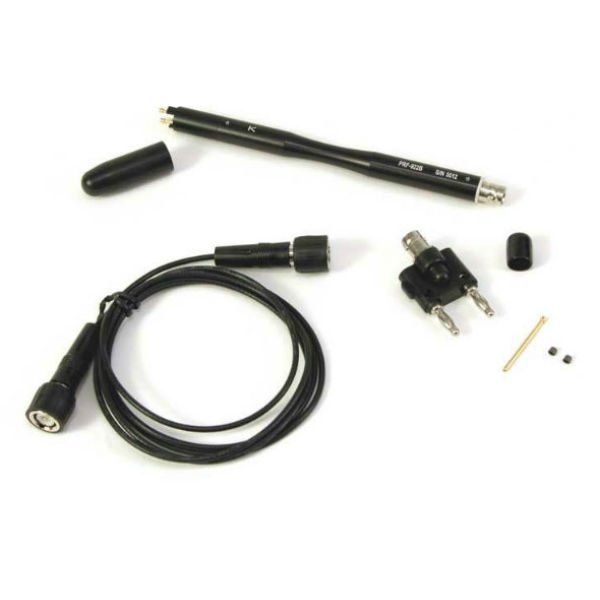

• PRF-922B Miniature Two-Point Probe

• PRF-912C Connection Cable

• PRF-912J BNC Test Adapter

• Probe cover

• 2 each Conductive Rubber Boots

• 1 each Spare Outer Contact Pin
