Prostat PRF-912B Miniature Concentric Ring Set

• The PRF-912B Miniature E12 Micro Probe Set accurately measures surface resistance of small areas up to 1.0x1012 ohms.

• It consists of a PRF-912B Concentric Resistance Fixture, shielded cable equipped with BNC connectors, and a BNC to male banana instrument adapter.

• The optional PRV-913B Dual Verification Fixture is designed to confirm the proper operation of all of the Prostat Micro Probes Sets.

• The PRF-912B is designed to work with a precision wide range resistance instrument, such as the PRS-801 Resistance System, or PRS-812 Resistance Meter or PAS-853B Wide Range Ohmmeter.

• It provides surface resistance measurements in ohms per ESD S11.11 Surface Resistance test standard.

Range: 0.9 – 1.0x1012 Ohms (1.0E+12)

ASTM D-257: Correction from ohms to ohms/square Multiply by 10

Dimensions:

• Length: 5.9 inches (150mm) without probe cover.

• 6.5 inches (165mm) with probe cover.

• Probe diameter 0.5 inches (12.7mm).

• Probe cover outer diameter 0.63 inches (16mm).

Probe Weight: 1.5 ounces (43 grams)

Finish: Black anodized

Dielectric Material: Teflon

Contact Size: Inner (Center) Contact Probe: 0.1 inches (2.54mm); Outer Contact Probes: Ten each 0.06 inches (1.59mm) diameter at 0.258 inches (6.56mm) bolt circle.

Min. Sample: 0.32 inches (8.2mm) diameter

Probe Spring: Force/Test 3.5 pounds (1.6 kg)

Probe Travel: 0.3 inches (7.8mm)

Connection: BNC with outer source and inner sense connections

Cable: RG-174 coaxial cable equipped with insulated BNC couplers, and BNC/Banana adapter for connection to Prostat PRS-801 Resistance System.

Power: N/A Fixture powered by resistance instrument.

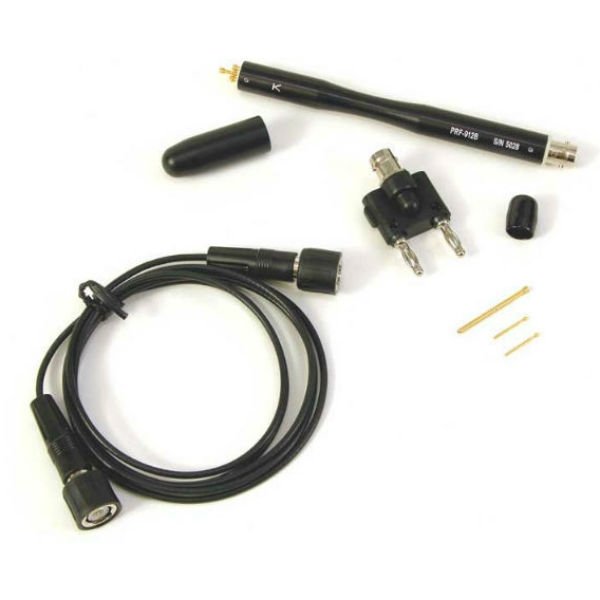

• PRF-912B Miniature Concentric Ring

• PRF-912C Connection Cable

• PRF-912J BNC Test Adapter

• Probe cover

• 1 each Conductive Rubber Boot

• 1 each Conductive Rubber Ring

• 2 each Spare Outer Contact Pins

• 1 each Spare Center Electrode Contact Pin
