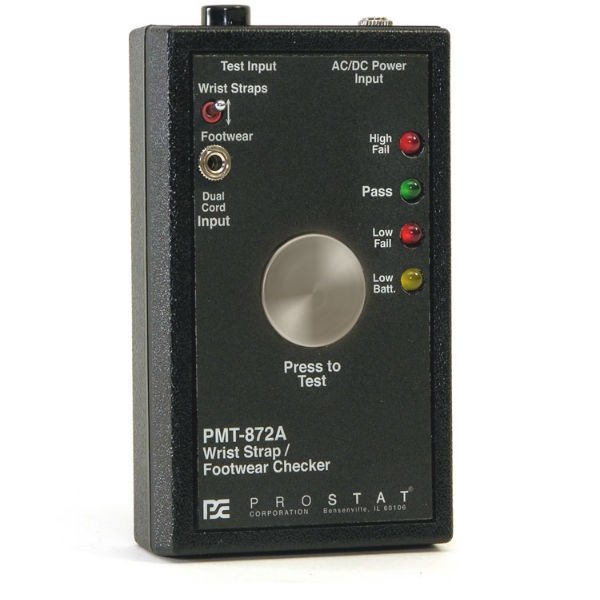

Prostat PMT-872A ESD Wrist Strap/Footwear Checker

• The PMT-872 is a unique, highly portable, battery operated multi-function PASS/FAIL performance verifier.

• It confirms the operational resistance range of wrist straps, heel straps and ESD controlled footwear.

• The PMT-872 features a large test button, audible PASS BEEP with Green PASS light, Red LOW and HIGH Fail lights, and yellow battery low indicator.

• Additional connections are provided for an optional AC-DC Power adapter and for testing dual conductor wrist straps.

• A front panel toggle switch allows testing of wrist straps and footwear at one station.

• A footwear test plate, snap connector, and lead can be purchased separately.

• PMT-872 Wrist Strap/Footwear Checker

• Velcro® Mounting Strip

• 9 Volt Battery

• User Manual

TEST VOLTAGE & CURRENT: Nominal 9 volts and 0.006 µA to 1.0 mA

POWER: One (1) standard 9-volt battery, PROCELL, Eveready #216 (NEDA 1604, JIS 006P, IEC 6F22); or, Optional AC/DC converter.

FACTORY ADJUSTED MEASUREMENT RANGES & ACCURACY

Wrist Straps: 8.0x105 Ohms to 1.0x107 Ohms < ±5% (Factory Default)
Footwear: 8.0x105 Ohms to 1.0x108 Ohms < ±5% (Factory Default)
Wrist Straps: 8.0x105 Ohms to 3.5x107 Ohms < ±5%
Footwear: 8.0x105 Ohms to 3.5x107 Ohms < ±5%

TOGGLE RANGE SELECTION: UP for Wrist Straps and DOWN for Footwear

PUSH BUTTON: 27 mm Diameter, Metal spring loaded

LIGHT INDICATORS (VERTICALLY ORIENTED. FROM TOP TO BOTTOM)

FAIL High: Red LED
PASS: Green LED with Audible Buzzer
FAIL Low: Red LED
BATTERY LOW: Yellow LED (At <8.2V Battery Voltage)

AUDIBLE SIGNAL: Fast, Individual "Beeping" Sound with Green PASS LED on.

OPERATING RANGE: 5ºC to 49ºC (40ºF to 120ºF)

STORAGE TEMPERATURE: -15ºC to 60ºC (5ºF to 140ºF)

RELATIVE HUMIDITY: 0% to 90%

BATTERY LIFE: 40 hours typical

DIMENSIONS: 115 mm x 69 mm x 26 mm

WEIGHT: 6 oz
