Prostat PFK-105 Ionization Test Set
-

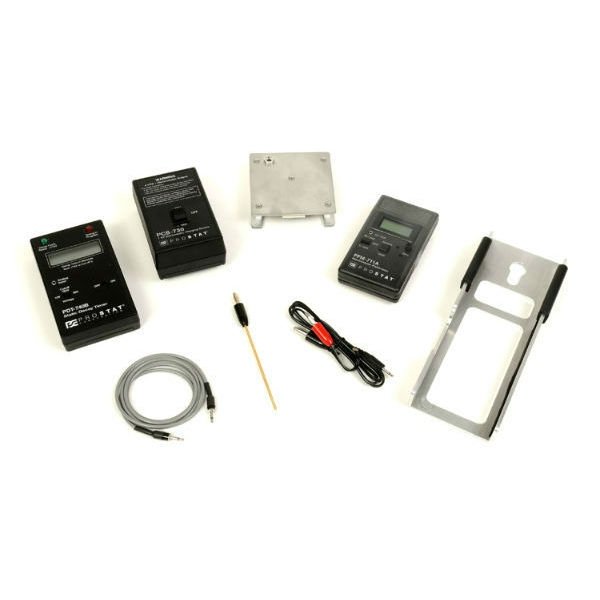

Includes a Field Meter, Charge Plate Monitor, Charging Source and Decay Timer
-
Balance Ionizers per ANSI/ESD SP3.3 Periodic Verification
-
Measure Ionizer Decay time as per ANSI/ESD S3.1 and ANSI/ESD SP3.3.
-
Measure Body Voltage Generation and Decay
-
Measure decay times for ionizers and materials
-
Evaluate Ionizers and Packaging Materials
-
Includes a fixture to hold the PFM-711A, CPM-720A and PDT-740B as one
The hand-held PFM-711A Fieldmeter is an instrument used to perform static surveys and polarity on objects with accuracy of ±2% at ambient conditions (23ºC and 30%Rh). This stabilized chopper can be used in environments with a presence of ionization without drifting. The Hold button allows the field meter to hold the measurement for easy recording. It also features automatic polarity indication, low battery indicator, high and low ranges, distance ranging lights for accurate and repeatable measurements, manual zero control and a ground snap. The PFM-711A includes two ranges of operation:
-
0 to 1,999V in 1 Volt increments with
-
0 to 20,000V in 10 Volt increments with
The PFM-711A can be used with a X-Y plotter, any analog data-recording devices, or the PGA-710B Autoanalysis System. The analog output provides a 1 volt output corresponding to 10kV, which is independent of the selected meter range and indication.Charge Plate Monitor allowing you to Measure Ionizers. The CPM-720A Charge Plate Monitor is an accessory that attaches to the PFM-711A Field Meter. When attached, the system will allow to balance ionizers per ANSI/ESD SP3.3, voltage or charge generation and voltage suppression analysis.
The PCS-730 ±1 kV Charging Source is used to charge the CPM-720A Charge Plate Monitor to ±1,000 volts to measure ionizer decay time as required by both ANSI/ESD S3.1 and ANSI/ESD SP3.3.The PFM-711A Field Meter, the CPM-720A Charge Plate Monitor and the PCS-730 Charging Source are match calibrated to work together for accurate and efficient auditing.
The PDT-740B Static Decay Timer is typical of Prostat’s innovative technology and support of Professional ESD Control Managers and Auditors.This unique accessory is designed to measure the decay time of ionizers from ±1,000 volts to less than 100 volts in accordance with ESD Association’s Ionization Standard ANSI/ESD STM3.1, and measure material decay time to less than 50 volts and less than 10 volts.
This fixture is designed to easily hold your PFM-711A Field Meter, your CPM-720A Charge Plate Monitor your PDT-740B Static Decay Timer. Lightweight, this instrument holder will facilitate balancing your ionizer, by holding all instruments in 1 hand.
Discover the Prostat PFK-105 Ionization Test Set at Mektronics Australia – your trusted source for quality tools and equipment!
-
PFM-711A Electrostatic Field Meter
-
CPM-720A Charge Plate Assembly
-
PCS-730 ± 1kV Charging Source
-
PDT-740B Static Decay Timer
-
PFK-100H Instrument Holder
CPM-720A CHARGE PLATE ASSEMBLY
OVERALL RANGE
High Range 0 V to ±19.99 kV (at 1” distance):
Least significant digit indicates volts at one inch (kV/in) in 10 Volt increments
Low Range 0 V to ±1,999 V (at 1” distance):
Least significant digit indicates volts at one inch (V/in) in 1 Volt invrements.
Measures higher voltages at greater distances, e.g., at 2” double indicated voltage, at
4” multiply indicated voltage by four.
INTRUMENT TOLERANCE
±5% from 0 V to 10 kV
Tolerance at > 10 kV depends on conditions and handling
Accuracy unaffected by the presence of air ionization.
Note: Performance when mounted in laboratory fixture positionned 1 inch from a 6”x6” reference plate
RANGE LIGHTS: Red “Bulls Eye” at 1” distance
METER DISPLAY: 3½ digit Liquid Crystal Display with 0.4” digit height; Automatic polarity, HOLD and LOW BATTERY indicators
RESPONSE
Digital display updates three (3) times per second.
Analog Output Time Constant: Either Range 0.1 sec.
Display Time Constants: High Range 0.2 sec., Low Range 2.0 sec.
OUTPUT: Analog signal output and 30” two conductor cable provided.
±10.0 kV meter reading equals ±1.0 Volt output
CONTROLS: Three position slide switch: KV/INCH - OFF - V/INCH; Sample/HOLD push button, and ZERO adjust knob.
GROUNDING: Meter circuit grounded through the conductive case and 10 mm snap fastener mounted on back of case.
POWER: 9 VDC alkaline battery.
BATTERY LIFE: Minimum 40 hours.
DIMENSIONS: 2.4” x 4.2” x 0.9” (6.1 cm x 10.7 cm x 2.3cm); 1.3” deep with zero knob and snap fastener (3.3 cm)
WEIGHT: 5 oz with battery installed (142g)
PCS-730 CHARGING SOURCE
INPUT POWER: 9 Volt Alkaline Battery. Battery life in excess of 40 hours continuous operation.
OUTPUT: ± 1,000 volts DC Minimum, Current limited to less than 1 Microamp.
OUTPUT: Female banana jack provided with mating contact rod.
GROUNDING: 10mm female snap fastener on rear of case. Note that wand must be installed and unit grounded for proper operation.
SIZE: 2.5"W x 4"L (4.2"L with jack) x 1.5"D (1.8"D with switch and snap)
WEIGHT: 6 oz (with battery)
CPM-720A CHARGE PLATE ASSEMBLY
ISOLATED PLATE: Stainless Steel parallel plates, 3.25 inches square. Auxiliary female jack installed.
CAPACITANCE: Plate Capacitance 10 picofarads (pF) ± 1 pF; Note: Plate capacitance is 15.8 pF when mounted to PFM-711A Filed Meter
RANGE: 0 to ± 6 KV at a plate separation of 0.60 inch.
ACCURACY: ± 2% at 1,000 volts. Calibration adjustment screw provided.
GROUNDING: Through conductive case and snap fastener of Model PFM-711A.
SIZE: 3.25"W x 3.25"L x .9"D (1.0"D with jack).
WEIGHT: 8 oz.
