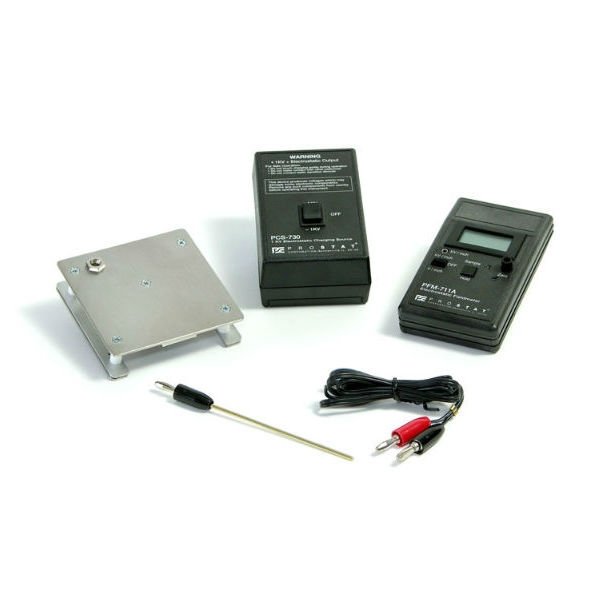

Prostat PFK-100 Electrostatic Field Meter Set
SKU: PROPFK-100
PFK-100
DESCRIPTION
Features
Includes
Specifications
Shipping & Delivery
Prostat PFK-100 Electrostatic Field Meter Set
-
Measure range & polarity of electrostatic fields in 1 volt or 10 volts increments
-
Charges from zero to over 1000 volts in less than 10 seconds
-
Balance Ionizers per ANSI/ESD SP3.3 Periodic Verification
-
Measure Ionizer Decay time as per ANSI/ESD S3.1 and ANSI/ESD SP3.3.
-
Measure Body Voltage Generation and Decay
-
Use with a datalogger to record measurements & create reports
-
Compatible with the Autoanalysis System
-
Accuracy of ± 2%
-
Battery Operated
Discover the Prostat PFK-100 Electrostatic Field Meter Set at Mektronics Australia – your trusted source for quality tools and equipment!
Prostat’s innovative PFK-100 set was the first instrument combination of its kind. It includes Prostat's unique PFM-711A dual range field meter, the original CPM-720A portable charged plate monitor assembly and PCS-730 ±1 kV charging source.With this instrument set you can measure electrostatic fields, analyze ionizer performance and assess the voltage generation of materials, equipment and personnel.
The battery operated PFM-711A Field Meter is a compact stabilized "electronic chopper" design with accuracy of ±2% at ambient conditions (23ºC and 30%Rh). This advanced design allows it to be used in ionized environments without drifting. It features automatic polarity indication, a measurement "hold" button, low battery indicator, high and low ranges, distance ranging lights for accurate and repeatable measurements, manual zero control and a ground snap. The PFM-711A offers the user two ranges of operation:
-
0 – 1,999V in 1 Volt increments with
-
0 – 20,000V in 10 Volt increments with
With the supplied analog output cable, it can be used in conjunction with an X-Y plotter or any analog data-recording device. The front panel analog output jack provides a 1 volt output corresponding to 10kV, which is independent of the selected meter range and indication.
The CPM-720A Charge Plate Assembly is 3.25 inches square. It attaches to the PFM-711A field meter for ionizer balancing per ANSI/ESD SP3.3 Periodic Verification, voltage or charge generation and voltage suppression analysis.Performace studies indicate the CPM-720A 3.25 inch plate has a strong correlation to the CPM-760A 6 inch Charge Plate Monitor.
The PCS-730 ±1 kV Charging Source is used to charge the CPM-720A to ±1,000 volts to measure ionizer decay time as required by both ANSI/ESD S3.1 and ANSI/ESD SP3.3.These three instruments are match calibrated to work together for accurate and efficient auditing.
The PFK-100 Field Meter Set can be used for voltage generation and decay analysis in conjunction with a variety of data recording instruments. Prostat’s PGA-710B Autoanalysis System® is a most unique electrostatic data analysis device. It records, plots, analyzes and automatically constructs reports of body voltage generation, electrostatic decay, voltage retention, ionizer performance and other static measuring functions. The combination of Prostat’s PFK-100 Set and PGA-710B Autoanalysis System® is the most up to date instrument collection for meeting today’s ANSI/ESD S20.20 and IEC 61340-5-1 ESD Program standard requirements.
-
PFM-711A Electrostatic Field Meter
-
CPM-720A Charge Plate Assembly
-
PCS-730 ± 1kV Charging Source
PFM-711A FIELD METER
OVERALL RANGE
High Range 0 V to ±19.99 kV (at 1” distance):
Least significant digit indicates volts at one inch (kV/in) in 10 Volt incrementsLow Range 0 V to ±1,999 V (at 1” distance):
Least significant digit indicates volts at one inch (V/in) in 1 Volt invrements.Measures higher voltages at greater distances, e.g., at 2” double indicated voltage, at
4” multiply indicated voltage by four.
INTRUMENT TOLERANCE
±5% from 0 V to 10 kV
Tolerance at > 10 kV depends on conditions and handling
Accuracy unaffected by the presence of air ionization.
Note: Performance when mounted in laboratory fixture positionned 1 inch from a 6”x6” reference plate
RANGE LIGHTS: Red “Bulls Eye” at 1” distance
METER DISPLAY: 3½ digit Liquid Crystal Display with 0.4” digit height.
Automatic polarity, HOLD and LOW BATTERY indicators
RESPONSE
Digital display updates three (3) times per second.
Analog Output Time Constant: Either Range 0.1 sec.
Display Time Constants: High Range 0.2 sec., Low Range 2.0 sec.
OUTPUT: Analog signal output and 30” two conductor cable provided; ±10.0 kV meter reading equals ±1.0 Volt output
CONTROLS: Three position slide switch: KV/INCH - OFF - V/INCH; Sample/HOLD push button, and ZERO adjust knob.
GROUNDING: Meter circuit grounded through the conductive case and 10 mm snap fastener mounted on back of case.
POWER: 9 VDC alkaline battery.
BATTERY LIFE: Minimum 40 hours.
DIMENSIONS: 2.4” x 4.2” x 0.9” (6.1 cm x 10.7 cm x 2.3cm); 1.3” deep with zero knob and snap fastener (3.3 cm)
WEIGHT: 5 oz with battery installed (142g)
CPM-720A CHARGE PLATE ASSEMBLY
TOLERANCE: Matches the PFM-711A Field Meter within 2% when calibrated together
CAPACITANCE: Plate Capacitance 10 picofarads (pF) ± 1 pF; Note: Plate capacitance is 15.8 pF when mounted to PFM-711A Filed Meter
RANGE: 0 to ±5.5 kV ±2% at 23 ºC, 30% Rh.
GROUNDING: Through conductive case and snap fastener of PFM-711A Field Meter
DIMENSION: 3.25” x 3.25” x 0.9” (8.25 cm x 8.25 cm x 2.3cm)
WEIGHT: 8 oz (227g)
PCS-730 CHARGING SOURCE
INPUT POWER: 9 Volt Alkaline Battery; Battery life in excess of 40 hours continuous operation.
OUTPUT: ±1,400 ±5% volts DC; Current limited to less than 1 Microamp.
OUTPUT CONNECTOR: Female banana jack provided with mating contact wand.
GROUNDING: 10mm female snap fastener on rear of case; Note that wand must be installed and unit grounded for proper operation.
DIMENSION: 2.5” x 4.0” x 1.5” (6.3 cm x 10 cm x 3.8cm); 2.5” x 4.2” x 1.8” with input jack, switch and snap (6.3 cm x 10.7 cm x 46 cm)
WEIGHT: 6 oz with battery installed (170g)
