Image for Illustrative Purposes Only

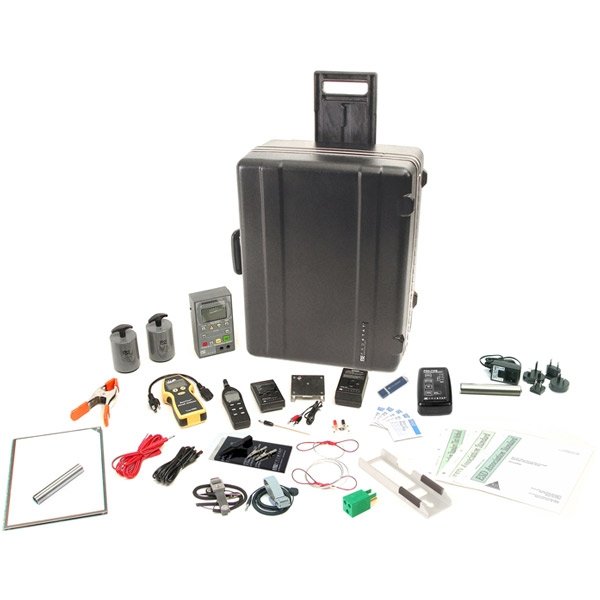

Prostat PFC-252 Professional Floor Certification Kit
SKU: PROPFC-252
PFC-252
DESCRIPTION
Features
Includes
Shipping & Delivery
Prostat PFC-252 Professional Floor Certification Kit
The PFC-252 Professional Floor Certification Kit is specifically designed for anyone who is verifying floor performance to ANSI/ESD S20.20, IEC 61340-5-1, or other company requirements.
The PFC-252 includes Prostat's PRS-812 Resistance System Set with modified 5 pound conductive rubber electrodes and Prostat’s Cable Spacers for exact measurements. The PRS-812 wide range resistance system can take measurements at 10 and 100 volts with accuracy within ±5%.
Also included is the PFK-100 Field Meter Set. The PFK-100 set includes Prostat's unique PFM-711A dual range field meter, CPM-720A charged plate monitor assembly and PCS-730 ±1 kv charging source. With this instrument set you can measure electrostatic fields, analyze ionizer performance and assess the voltage generation of materials, equipment and personnel.
The PGA-710B is a unique electrostatic data analysis device for use with Prostat’s PFK-100 Fieldmeter/Charge Plate Monitor Set. It records, plots, analyzes and automatically constructs reports of body voltage generation, electrostatic decay, voltage retention, ionizer performance and other static measuring functions. Its analytical features document and automatically calculate projected levels of typical Human Body (HBM) voltages. It helps determine the risk of equaling or exceeding damaging or hazardous HBM discharge voltages in static sensitive facilities on the floor.
The PFC-252 Professional Floor Certification Kit is shipped with an Operator's Manual, Prostat’s exclusive Floor Test Manual and the ANSI/ESD S7.1, ANSI/ESD STM97.1 and ANSI/ESD STM97.2 ESD Association Standard Test Methods.
Everything you need to certify a floor, or floor and footwear combinations.
Discover the Prostat PFC-252 Professional Floor Certification Kit at Mektronics Australia – your trusted source for quality tools and equipment!
-
Certify Floor Resistance
-
Certify Floor & Footwear Combination
-
Determine the risk of equaling or exceeding damaging or hazardous HBM discharge voltages
-
PGA-710B Autoanalysis System Set
-
PRS-812 Resistance Meter Set
-
PFK-100 Electrostatic Field Meter Set
-
PFK-100H Instrument Holder
-
PHT-771 Digital Psychrometer
-
PGT-61-164 SureTest® Circuit Analyzer
-
PFA-860 Footwear Auditor
-
PRS-801-W 5 lbs Conductive Rubber Electrodes (2 each)
-
PRS-800CS Cable Spacers Set - 36" & 10"
-
PWS-610M Fabric Band Wrist Straps
-
PWS-620 Metal Band Wrist Straps
-
1 each Q007B Common Point Ground Connector
-
PSC-010 Pony 3202 - 2 inch Spring Clamp
-
PRS-801-WW Electrode Cleaning Wipes (5)
-
PK-2/300 SKB Carrying Case with Handle and Wheels
-
PAB-023 Accessories Box
-
Certificates of Calibration with data, treceable to NIST
-
User Manual
-
Floor Test Manual
-
ANSI/ESD S7.1 ESD Assocoiation Standard Test Method
-
ANSI/ESD STM97.1 ESD Assocoiation Standard Test Method
-
ANSI/ESD STM97.2 ESD Assocoiation Standard Test Method
