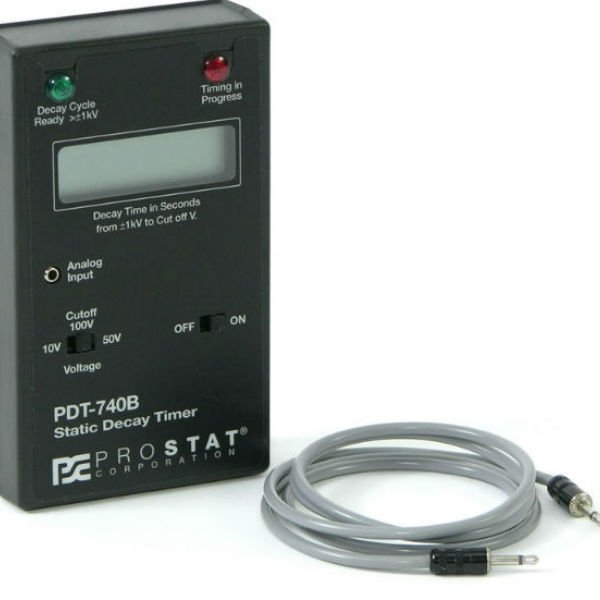

Prostat PDT-740B Static Decay Timer

The PDT-740B Static Decay Timer is typical of Prostat’s innovative technology and support of Professional ESD Control Managers and Auditors.This unique accessory is designed to measure the decay time of ionizers from ±1,000 volts to less than 100 volts in accordance with ESD Association’s Ionization Standard ANSI/ESD STM3.1,

Properly used, the PDT-740B provides decay time measurements for evaluating ionizers, packaging materials, footwear, personnel grounding, production aids, some equipment and many other ESD control products.

The PDT-740B Static Decay Timer is used with Prostat’s precision portable Charge Plate Monitor kit components, including the PFM-711A Field Meter, CPM-720A Charge Plate Assembly and PCS-730 ±1kV Charging Source.

For evaluating materials and other products, additional decay measurement accessories e.g., PGB-745 Decay Electrodes, or PRF-911 Concentric Ring fixtures are recommended.

• PDT-740B Static Decay Timer

• PDT-740C Analog Cable

CONTROLS: OFF-ON Cut Off Voltage, 10, 50 and 100 Volts (Selects Voltage to stop timing)

INDICATORS

Green LED:
Decay Cycle Ready > ± 1kV, CPM voltage > ± 1,000 voltsRed LED:
Timing in Progress, CPM voltage decay timing activated LOBAT displayed when battery voltage <6.0 volts

DISPLAY: Liquid Crystal Display (LCD) displays elapsed decay time from ± 1,000 volts to selected Cut Off voltage in seconds and tenths of a second (00.0)

POLARITY: Automatically senses Positive & Negative voltage references

ZERO & RESET: Automatically Resets Timer and Display to 00.0 when CPM voltage > ± 1kV. Reset indicated when Green LED Decay Cycle Ready LED is ON.

RESPONSE: Approximately 200 milliseconds in combination with the CPM-720 and PFM-711A

TIMING RANGE:

From 0.2 to 159.9 seconds

TIMING SET POINTS

Reset when voltage input 100mv ± 2mv (1,000 Field Meter Volts ± 20V)
Cut Off Voltage @ 100 V: 10mv ± 0.2mv (100 Field Meter Volts ± 2V)
Cut Off Voltage @ 50 V: 5mv ± 0.2mv (50 Field Meter Volts ± 2V)
Cut Off Voltage @ 10 V: 1mv ± 0.2mv (10 Field Meter Volts ± 2V)

ACCURACY: Typically < ± 5%

POWER: One (1) standard 9-volt battery, PROCELL, Eveready #216 (NEDA 1604, JIS 006P, IEC 6F22)Eveready #216

BATTERY LIFE: >40 hours typical

DIMENSIONS: 4.50 inches x 2.75 inches x 1.0 inches

WEIGHT: 6.5 oz. (184 gm)
