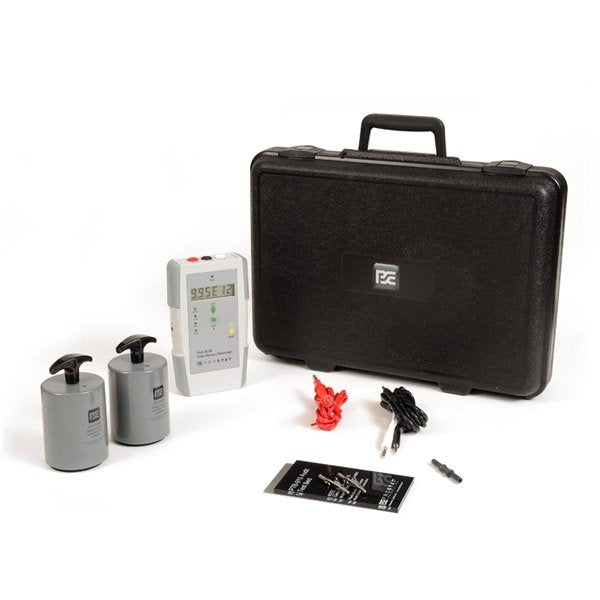

Prostat PAS-853BRM Digital Surface Resistance Test Kit

• Surface Resistance Kit from 0.01 ohm to 9.99x10¹² ohms

• Nominal Full Range Tolerance Averages

• Fully Automatic Resistance Range, Test Voltage and Electrification Period control

• Determines if a surface is Dissipative, Conductive, or Insulative

• Measures resistance point-to-point(Rtt) and point-to-ground (Rtg)

• Measures resistance of Static Control Floors, ESD Work Surfaces and Packaging Material

• Conforms to all ESD Association Standards for Resistive Characterization

• Includes 2 each Conductive Rubber Electrodes

• Packaged in a hard shell Carrying Case

• Certificate of Calibration Traceable to NIST included

CONTROLS

CONNECTIONS

INDICATION

Colored LED’s indicate instrument operational MODE and Test Voltage (YELLOW) used for the current measurement, as well as measurement completion (GREEN LED).

• AUTO: ON during automatic operations; OFF in Manual mode
• <10V
• 10V
• 100V
• GREEN LED: Measurement hold

TYPICAL TOLERANCES

1Nominal performance by range:

0.01E- 1 – 1.0E 0 O 1.0E 0 – 9.99E10 O 1.0E11 – 9.99E12 O

TEST VOLTAGES

Automatically selected and controlled in AUTO mode. May be manually selected by pressing MODE pad in the following order:

<10V Variable based on resistance load:

• Provides 0.001 to =10V
• Functional in AUTO within range 0.01 O - <1.0E+4 O
• Manual Operation Resistance Range: 0.01E-1 to 9.99E+9 O

10V Constant Voltage (Under Load):

• Test Voltage Varies ± <5% in AUTO or Manual Operations
• Functional in AUTO within range 1.0E+4O - <1.0E+6 O
• Manual Operation Resistance Range: 0.9E+4 to 9.99E+10 O

100V Constant Voltage (Under Load):

• Test Voltage Varies ± <2% in AUTO or Manual Operations
• Functional in AUTO within range 1.0E+6 O - <1.0E+13 O
• Manual Operation Resistance Range: 0.90E6 to 9.99E12 O
  Returns to Auto Mode

MODES OF OPERATIONS

GO A: Performs all automatic and manual voltage select functions, stops and displays measurements after Electrification Period (EP) is complete, then displays data with Green LED ON for 10 seconds.

GO C: Performs all automatic and manual voltage select functions, continuously displays measurements until the operator presses MODE or TEST pads. GO Cdisables electrification period controls.

POWER: One 9V alkaline transistor battery; battery life > 50 hours

DIMENSIONS: 7.25 in. (184 mm) x 4.3 in, (109 mm) x 1.4 in.

WEIGHT: 13.2 oz. (375 gram) with battery installed

NOTES: 1Tolerance and accuracy measurements were conducted under controlled conditions with close tolerance reference resistors.

Do not attempt to open instrument case:

• No internal operational parts or adjustments
• Provides access to 100DCV power supply
• Damage to instrument and environmental seals may occur
• Will void warranty
• Store instrument in case and dry environment
