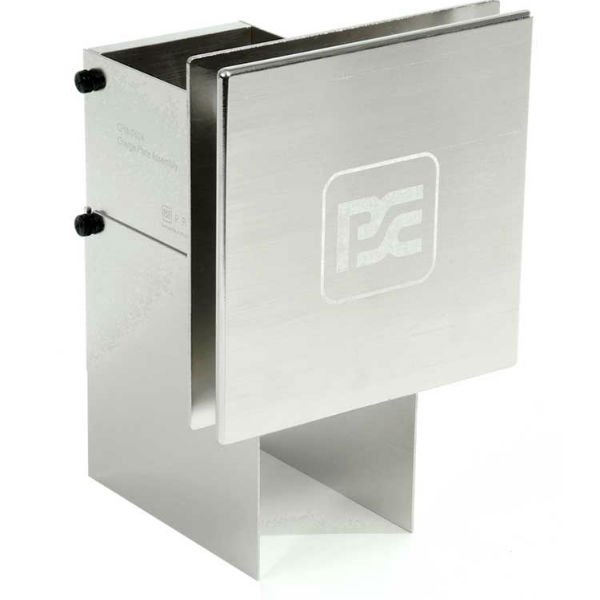

Prostat CPM-760A Collapsible 6 Inch Charge Plate Monitor Assembly

• The CPM-760A is a 20pF, 6-inch Charge Plate Monitor assembly intended for use with the Prostat PFM-711A Field Meter, PCS-730 Charging Source and PDT-740B Static Decay Timer.

• This handy accessory is designed to perform very accurate performance audits on overhead ionizers and room ionization systems.

• Used with extension wings, the CPM-760A is also used to evaluate and balance bench top ionizers.

• The CPM-760A is completely collapsible for compact storage in the Prostat Professional ESD Auditing Kit Series.

• It may be used for evaluating voltage generation and static decay performance of personnel, footwear, flooring, chairs, carts and other equipment and materials.

ISOLATED PLATE: Electro-plated Aluminum plate, 6.0 inches square.

GROUND PLATE: Plated aluminum sheet, 6.0 inches square.

PLATE SPACING: Approximately 0.63 inches between Isolated and Ground plates. Plate spacers made from machined virgin, white Teflon® Rod

SUPPORT: Stored disassembled, plated aluminum sheet and steel lower stabilizing block.

ASSEMBLY: Assembled with machine cap screws.

CAPACITANCE: Parallel Plate Capacitance 20 picofarads (pF) ± 2 pF

RANGE: 0 to ± >5 kV at a plate separation of 0.63 inch.

>ACCURACY: ± 2% 0 to 1,000 volts.

5 MINUTE DECAY @ 50% RH: When charged to 1kV, floating plate voltage decays less than 5% (<50 volts) over a 5 minute period.

CALIBRATION: Accomplished via adjustable instrument saddle and grounding device.

GROUNDING: Via snap fastener of Model PFM-711A and meter saddle assembly.

ASSEMBLY: 6.0” High in Vertical Test Configuration

HEIGHT: 9.0” High in Horizontal Test Configuration; Center of Plate 6.0” from Worksurface

WEIGHT: 2.5 pounds
