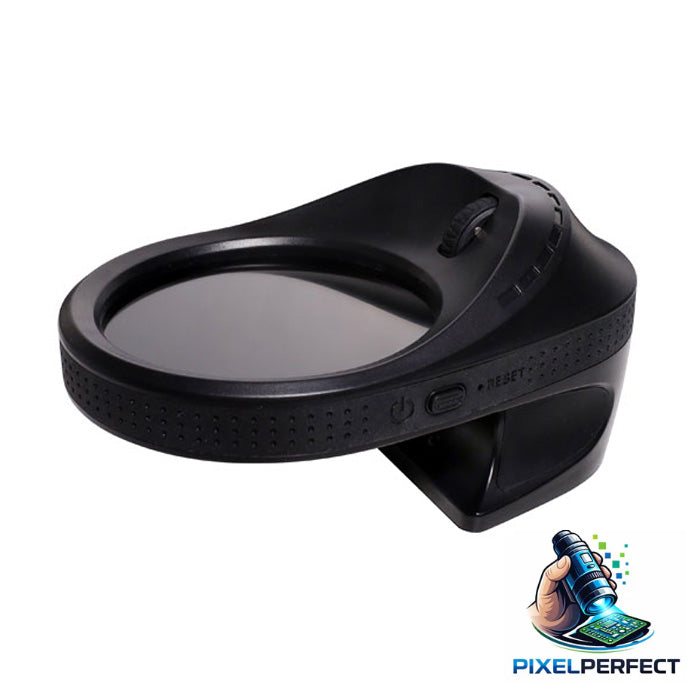

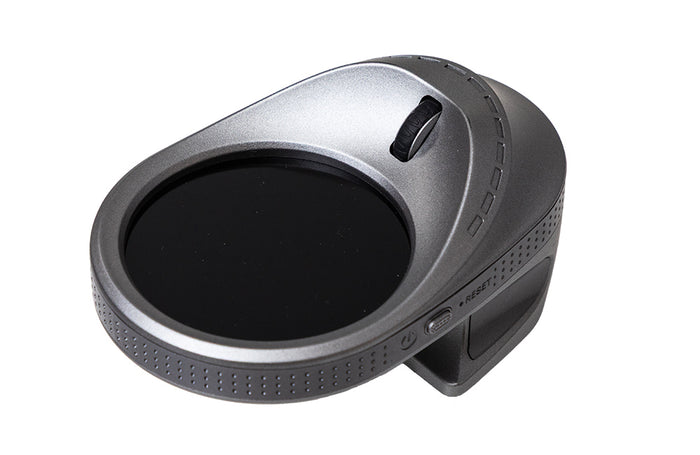

Pixel Perfect Digital Round Screen Magnifier/ Handheld LED Microscope

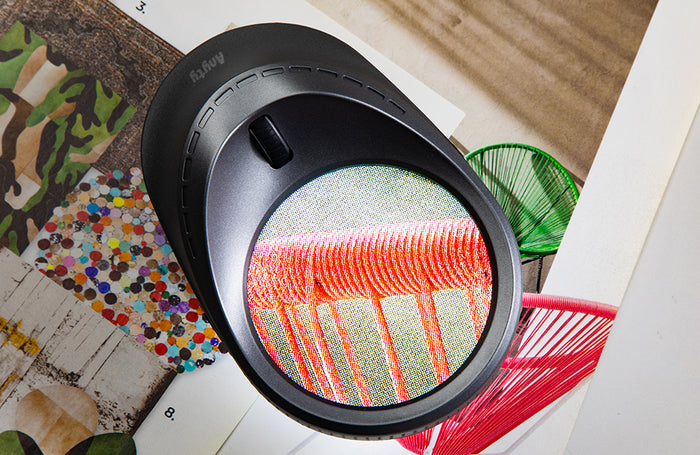

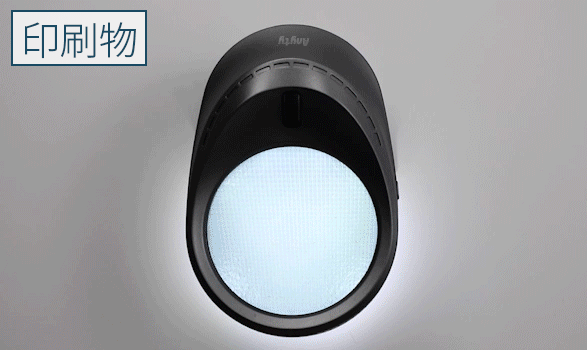

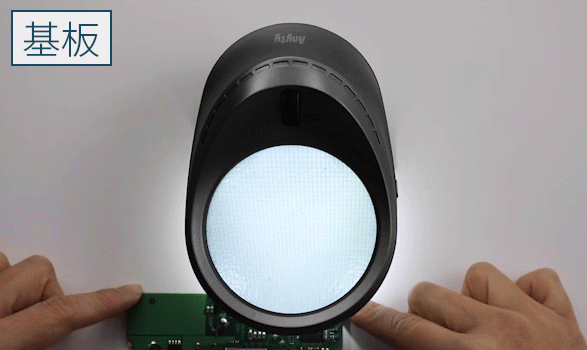

Fixed Focus Design: Fixed focus design that does not require focusing operation. It can be immediately observed simply by placing it on the object, and is suitable for inspection on a workbench or for line work that requires one confirmation after another. You can efficiently check objects that are in focus on a flat surface, such as printed materials and thin substrates, without hesitation.

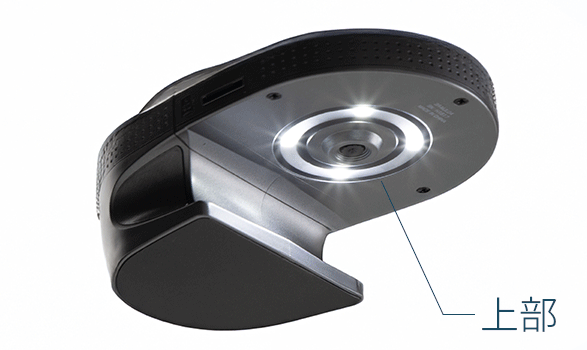

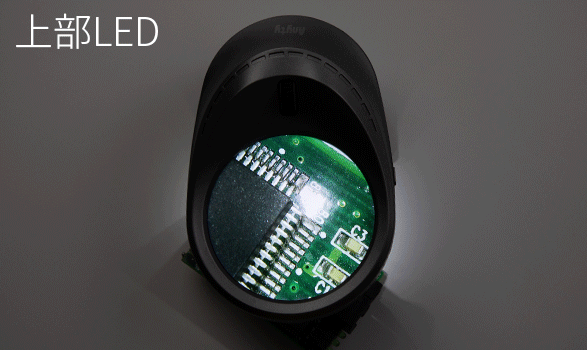

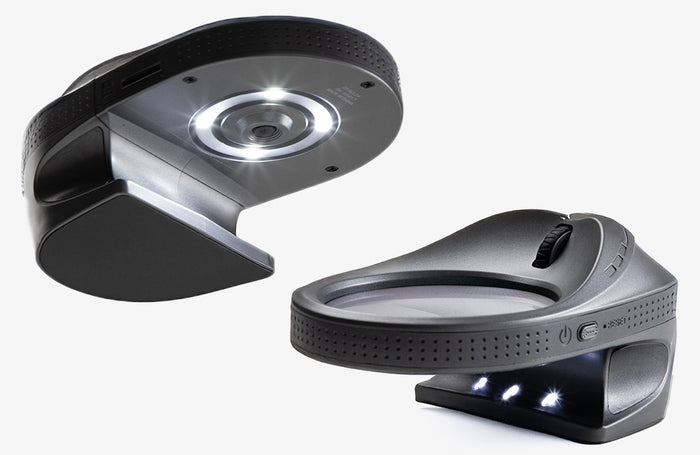

Switchable Light with Low Reflection and Easy to See: Equipped with two types of LED lights, top and side. If you are concerned about reflections, switch to the side light to reduce white fly and make it easier to see the surface condition and contours. It can be adjusted to the optimal viewing according to the object and material.

Easy-to-see display performance that is easy to check even the smallest details:  The 1 million pixel camera sensor and large, easy-to-read 2.8-inch monitor provide easy-to-see displays down to the smallest detail. It can also be magnified up to 10 times and firmly supports the inspection of fine parts.

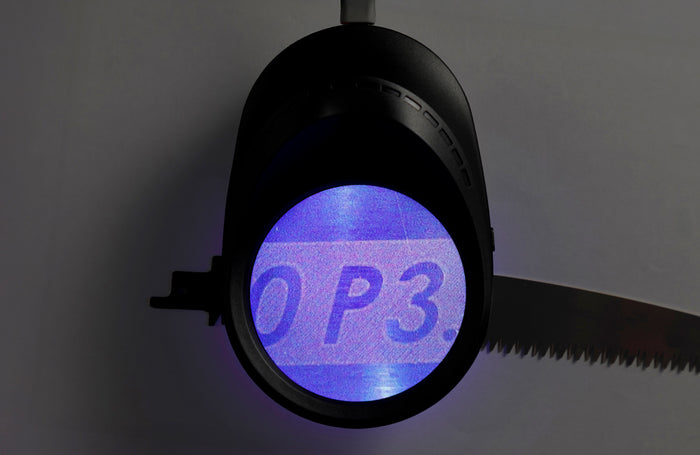

UV Light: It is also equipped with a UV light that irradiates from the top. It is useful for checking surface scratches, cracks, and foreign objects, and is also useful for dirt checking such as fine dust and thread debris, and for checking materials that react to ultraviolet rays, such as paints.

2.8 Inch LCD Monitor: It is equipped with a large, easy-to-read 2.8-inch LCD monitor. Since you can see it on the screen, you don't have to look into it, and you can work with less strain on your eyes and neck. In addition, multiple people can check while looking at the screen at the same time, which helps to improve the efficiency of recognition and confirmation work in the field.

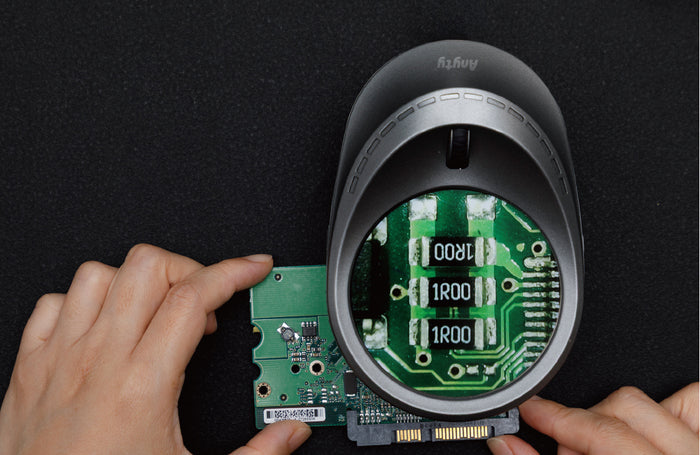

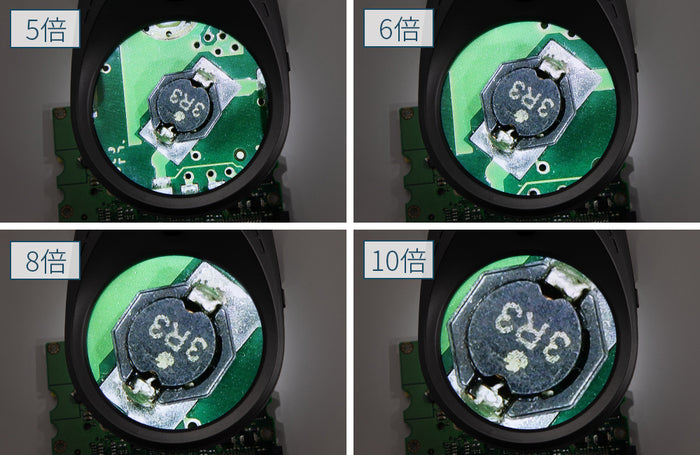

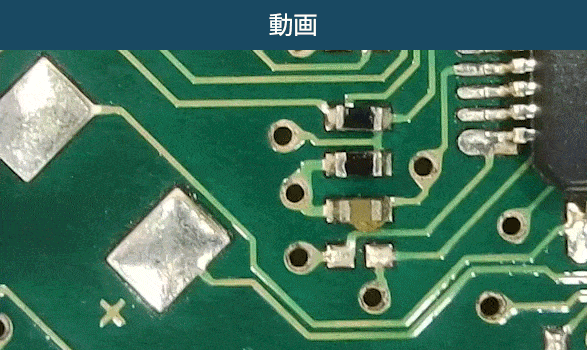

Maximum Magnification of 10x: In addition to the 5x optics, the digital zoom can be used together to magnify up to 10x. Small parts that are difficult to see with the naked eye, such as dots on printed materials and wiring and text on electronic boards, can be smoothly enlarged with the touch of a button.

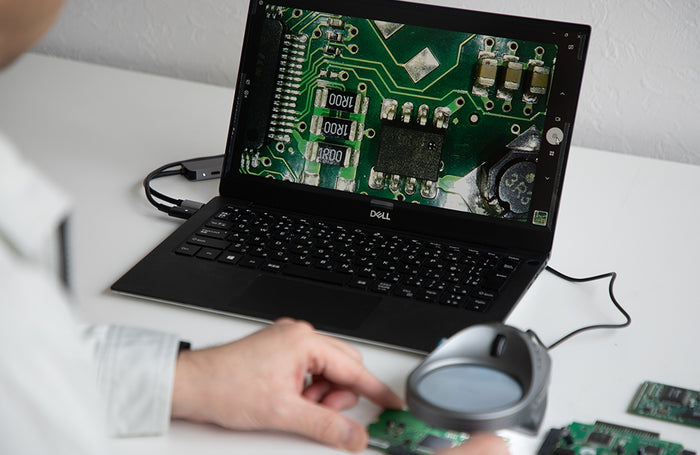

Connect to a computer / Observe on large screen:

Connect the included USB cable to a computer or monitor for observation on a large screen. It helps in efficient communication, such as sharing with multiple people or checking with clients.

*When connecting to a computer for observation, use the camera app that comes standard on the computer.

*Please use a camera app that recognizes external cameras.

*If you use the camera app on your computer, the data will be stored on your computer.

• Model number: 3R-MJL04

• Size (approx.): 130×87×64mm

• Weight (approx.): 165g

• Operating time (approx.): 1 hour 30 minutes *Varies depending on the mode of use

• Charging time (approx.): 1.5 hours

• Input Voltage/Current: 5V/1A

• Battery capacity: 1100mAh

• Camera Pixel Count: 1 million pixels *Depends on monitor resolution

• Pixel sensor: 1/4 CMOS

• Monitor Size: 2.8 inches

• Monitor Resolution: 480×480

• Optical zoom: 5x

• Digital Zoom: 1.2x, 1.6x, 2x

• Optical × Digital Zoom: 6x, 8x, 10x

• Still image size/format: 720×720, JPG

• Video Size/Format: 720x720, AVI

• Light Source: 4 white LEDs×, 4 UV LEDs×, × 3 side LEDs (white)
