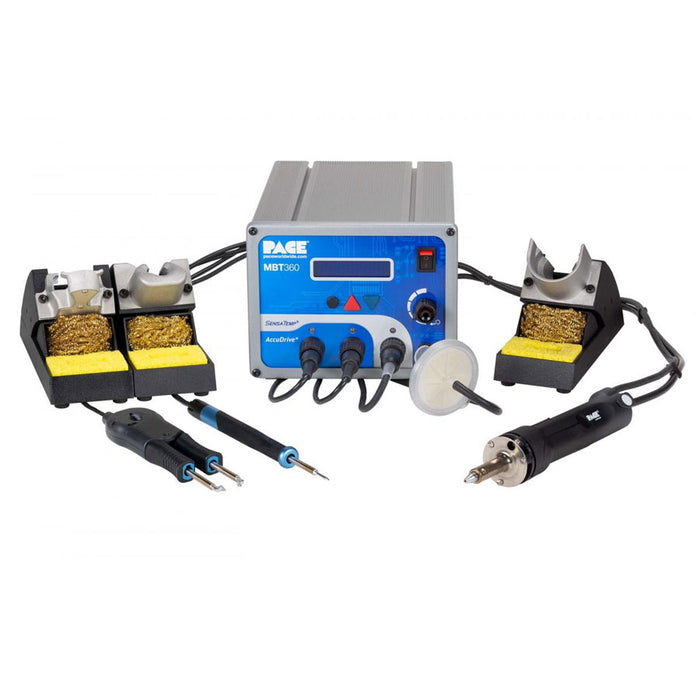

Pace MBT360 Multi-Channel Soldering & Rework Station
SKU: PAC80070598
8007-0598
DESCRIPTION
Features
Contents
Specifications
More Information
Compatible Tips
Resources
Shipping & Delivery
Pace MBT360 Multi-Channel Soldering & Rework Station
The MBT360 is truly the best of both worlds, combining PACE's renowned SensaTemp® heating technology, which boasts superior performance and versatility, with our new advanced AccuDrive® tip-heater cartridge capability for today’s most challenging production soldering and rework applications. The MBT360 allows the user to customize their workbench with any AccuDrive or Sensatemp handpiece for maximum capability, versatility and economy.
Only PACE offers complete interoperability and interchangeability
across its entire new system and handpiece line. Buy what you need now. Add capability later. With PACE’s new system and handpiece line, you can mix and match handpieces and systems, reduce inventory requirements and maximize cost savings!
Discover the Pace MBT360 Multi-Channel Soldering & Rework Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
Two AccuDrive® ports, one SensaTemp® port and the self-contained auto Snap-Vac pump.
-
ISB and Auto-Off capability increases tip-life up to 6 times and greatly reduces tip costs.
-
AccuDrive® Tip-Heater Cartridges meet and exceed ANSI/J-STD-001 Absolute Temperature Accuracy Requirement without the need for calibration.
-
Backlit, digital LCD screen displays set and actual temperatures of all three channels
-
Password protected settings allow the operator to work within an approved temperature range or at a single temperature.
-
TD-200 AccuDrive Tip-Heater Cartridge Iron with Instant SetBack Tool Stand (6993-0317-P1)
-
MT-200 MiniTweez Kit with Instant SetBack Cubby (AccuDrive) (6993-0321-P1)
-
SX-100 Sodr-X-Tractor with Tip & Tool Stand (SensaTemp) (6993-0213-P1)
|
Power Requirements
|
115 VAC, 60 Hz (240 watts maximum) || 230 VAC, 50 Hz (240 watts maximum)
|
|
Power Ports
|
2 AccuDrive®, 1 SensaTemp®
|
|
Self-Contained Internal Pump
|
Snap-Vac® Vacuum/Adjustable Pressure Capability
|
|
Dimensions
|
135mm (5.3”) H X 165mm (6.5”) W X 260mm (9.25”) D
|
|
Weight
|
5 Kgs (11 lbs.)
|
|
Tip-to-Ground Resistance
|
< 2 Ohms
|
|
Temperature Stabililty
|
1.1°C (2°F)
|
|
Temperature Accuracy
|
Meets or exceeds ANSI J Std 001
|
|
Set Temperature Range
|
AccuDrive® 177-454°C (350-850°F) || SensaTemp® 37-482°C (100-900°F)
|
With nearly 80% greater maximum power than our previous design* the standard system includes the TD-200 AccuDrive Soldering Iron which provides unsurpassed thermal performance on the heaviest boards at the most accurate temperatures for ultimate process control and maximum throughput…even in demanding production environments!
The standard system also features the new MT-200 AccuDrive MiniTweez precision thermal tweezer which safely reworks a wide variety of surface mount components, even as small as 0201’s and 01005’s on the most tightly-packed assemblies. Both the TD-200 and MT-200 handpieces come standard with Instant Set Back (ISB) cubbies which can increase tip life up to 6 times and save energy thus greatly reducing costs!
The system also comes standard with the SX-100 Sodr-X-Tractor , our flagship desoldering handpiece for surface mount land prep, rapid thru-hole desoldering and surface mount component removal.
-
TD-200 Standard Blue Series Tips
-
TD-200 Ultra-Performance Blue Series TIps
-
MT-200 AccuDrive MiniTweez Tips
-
SX-100 Flo-D-Sodr Desoldering Tips
-
SX-100 Precision Desoldering Tips
-
SX-100 Thermo-Drive Desoldering Tips
