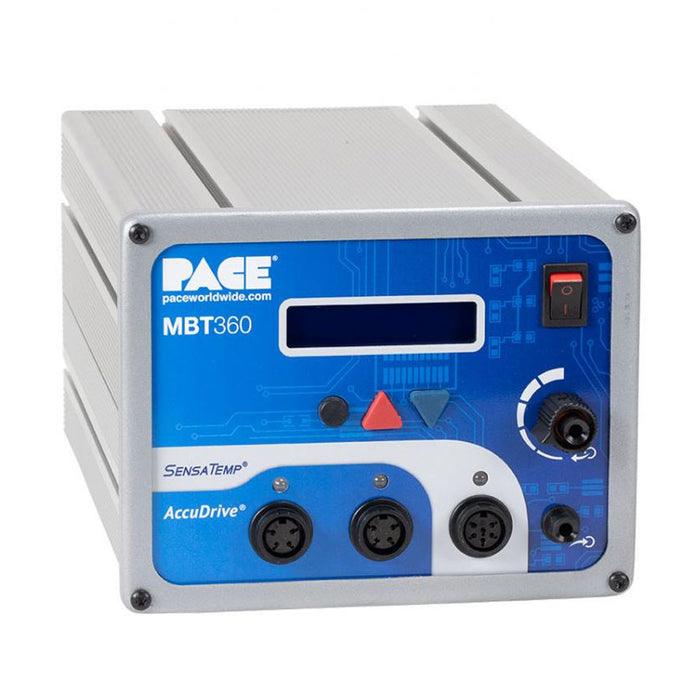

Image for Illustrative Purposes Only
Pace MBT360 Multi-Channel Soldering & Rework Station (Power Source Only)
SKU: PAC80070606
8007-0606
DESCRIPTION
Features
Specifications
Resources
Shipping & Delivery
Pace MBT360 Multi-Channel Soldering & Rework Station (Power Source Only)
The MBT360 is truly the best of both worlds, combining PACE's renowned SensaTemp® heating technology, which boasts superior performance and versatility, with our new advanced AccuDrive® tip-heater cartridge capability for today’s most challenging production soldering and rework applications. The MBT360 allows the user to customize their workbench with any AccuDrive or Sensatemp handpiece for maximum capability, versatility and economy.
Only PACE offers complete interoperability and interchangeability across its entire new system and handpiece line. Buy what you need now. Add capability later. With PACE’s new system and handpiece line, you can mix and match handpieces and systems, reduce inventory requirements and maximize cost savings!
Discover the Pace MBT360 Multi-Channel Soldering & Rework Station (Power Source Only) at Mektronics Australia – your trusted source for quality tools and equipment!
-
Two AccuDrive® ports, one SensaTemp® port and the self-contained auto Snap-Vac® pump.
-
ISB and Auto-Off capability increases tip-life up to 6 times and greatly reduces tip costs.
-
AccuDrive® Tip-Heater Cartridges meet and exceed ANSI/J-STD-001 Absolute Temperature Accuracy Requirement without the need for calibration.
-
Backlit, digital LCD screen displays set and actual temperatures of all three channels
-
Password protected settings allow the operator to work within an approved temperature range or at a single temperature.
|
Power Requirements
|
115 VAC, 60 Hz (240 watts maximum) || 230 VAC, 50 Hz (240 watts maximum)
|
|
Power Ports
|
2 AccuDrive®, 1 SensaTemp®
|
|
Self-Contained Internal Pump
|
Snap-Vac® Vacuum/Adjustable Pressure Capability
|
|
Dimensions
|
135mm (5.3”) H X 165mm (6.5”) W X 260mm (9.25”) D
|
|
Weight
|
5 Kgs (11 lbs.)
|
|
Tip-to-Ground Resistance
|
< 2 Ohms
|
|
Temperature Stabililty
|
1.1°C (2°F)
|
|
Temperature Accuracy
|
Meets or exceeds ANSI J Std 001
|
|
Set Temperature Range
|
AccuDrive® 177-454°C (350-850°F) || SensaTemp® 37-482°C (100-900°F)
|
