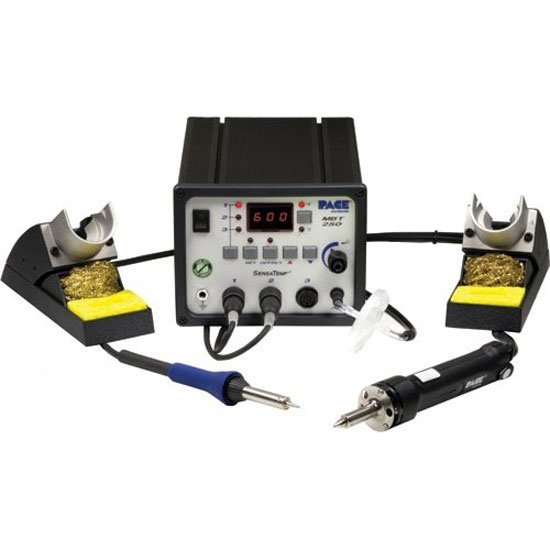

Pace MBT-250-SD Digital Rework System 3 Channel

• Comes with PPS-85 Power Supply, PS-90 Soldering Iron, SX-100 Sodr-X-Tractor and Tip & Tool Stands
• NATO/National Stock Number (NSN) for both 120 VAC and 230 VAC systems, NSN's available for all handpieces, accessories, tips & spare parts
• Proven system reliability, longevity, durability and sustainability
• Digital Readout displays the selected channel's set and actual temperature
• Powers 3 separate handpieces simultaneously, at different temperatures
• SensaTemp Temperature Management System continuously monitors/responds to thermal load
• Auto-Off and Temperature Setback preserves tip life
• Tip Temperature Offset for high mass tips
• Password Protection prevents unauthorized changes
• User definable Temperature Operating Range
• Power Supply is Self-Contained, no shop air required ... just plug it in!
• Includes 2 Tip and Tool Stands with Low Abrasive Dry Wipe Capability
• Dual Purpose Vacuum/Pressure Pump includes patented Snap-Vac technology
• Completely ESD/EOS Safe, lead-free compatible

• Power Requirements115VAC, 60Hz, 230VAC, 50/60Hz, 184 Watts maximum 207 Watts maximum
• Handpiece SpecsSensaTemp Only
• Tip to ground resistence2 ohms or less
• Temperature stability° 1.1°C (° 2°F) at idle from set tip temp.
• Tip Temperature Range38° to 482°C (100° to 900°F) nominal
• Vaccuum Rise TimeEvacuates 33cc (2 cubic inch) volume to 25cm Hg. (10in Hg.) in 150ms.
• Pressure.48 Bar (7 p.s.i.) nominal at maximum setting
• Airflow9 SLPM (0.32 SCFM) maximum
