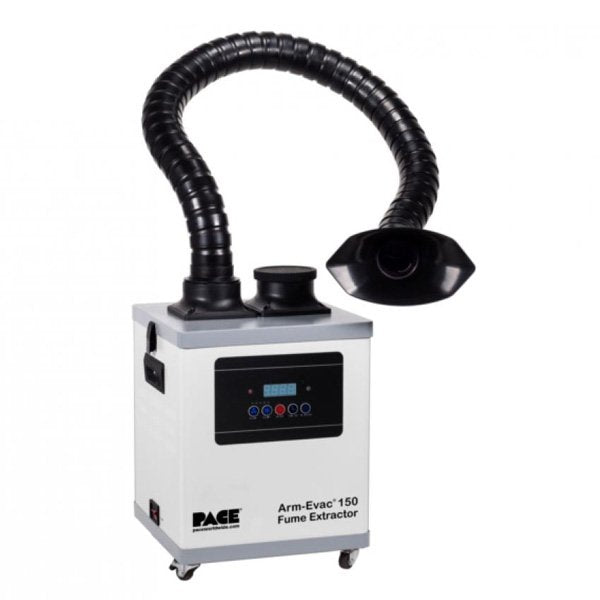

Pace Arm-Evac 150 Digital Fume Extractor with SteadyFlex™ Arm
SKU: PAC88890155
8889-0155-P1
DESCRIPTION
Features
Includes
Specifications
Resources
Shipping & Delivery
Pace Arm-Evac 150 Digital Fume Extractor with SteadyFlex™ Arm
It's a fact ... unsafe particles and gases in the workplace result in increased absenteeism, employee turnover, worker's compensation claims and lost productivity. Why depend on costly centralized air handling systems to purify the air when you can do so at the source? PACE's Arm-Evac ® 150 captures hazardous fumes locally and is suitable for benchtop soldering and electronic rework applications including handheld machining operations and light, limited use of solvents, adhesives and other light and medium duty industrial applications. The low-cost Arm-Evac 150 System comes complete with self-supporting SteadyFlex ESD-Safe Arm/Nozzle assembly, Wireless Remote Control and 3-stage filtration system "¦ everything you need to set up one operator!
Discover the Pace Arm-Evac 150 Digital Fume Extractor with SteadyFlex™ Arm at Mektronics Australia – your trusted source for quality tools and equipment!
-
SteadyFlex™ ESD-Safe Arm/Nozzle Assembly included
-
Low profile, compact unit fits under most benches
-
Fume Extraction for up to 2 operators (additional SteadyFlex™ Arm required)
-
Reliable, brushless motor pump does not require costly routine maintenance
-
Superior performance and quiet operation
-
Low cost, easily changed, disposable filter cartridges
-
Wireless Remote Controller included
-
Filter Condition Monitor & Alarm alerts user of blockage or need to change filter
-
10 air flow speed settings
-
LED Motor Speed Indicator
-
Time Set feature automatically shut unit off
-
Control Panel Lock prevents unauthorized alteration of settings
-
Total Run Time Counter displays hours machine has been in use
-
Wide variety of filter options to meet virtually any application
-
Arm-Evac 150 Digital Fume Extractor with SteadyFlex™ Arm
-
Arm-Evac 150 Replacement Inlet Cap
-
Arm-Evac Wireless Remote Control
-
Arm-Evac 150 Casters, Set of 4
|
Flow Rate (Gen. Purp. Combo Filter) |
Single Inlet: 155 CFM || Dual Inlet: 90 CFM each arm |
|
Flow Rate (Cleanroom Filter) |
Single Inlet: 145 CFM || Dual Inlet: 85 CFM each |
|
Sound Level DbA |
< 53 dbA 50% motor speed ||< 63 dbA 100% motor speed |
|
Weight (With Filter) |
9.07 Kg/20lbs |
|
Size |
305mm W x 305mm D x 423mmH (12" W x 12" D x 17" H) |
|
Housing |
20-gauge steel (ESD safe) |
|
Flex Arm Diameter/ Length |
60mm (2.4") Diameter / 132cm (52") Length |
|
Maximum Number of Flex Arms |
2 |
