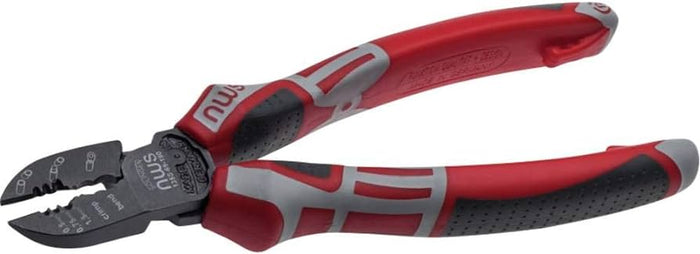

NWS 135S-69-190-SB Universal Side Cutter
SKU: NWS135S-69-190-SB
135S-69-190-SB
DESCRIPTION
Specifications
Shipping & Delivery
NWS 135S-69-190-SB Universal Side Cutter
-

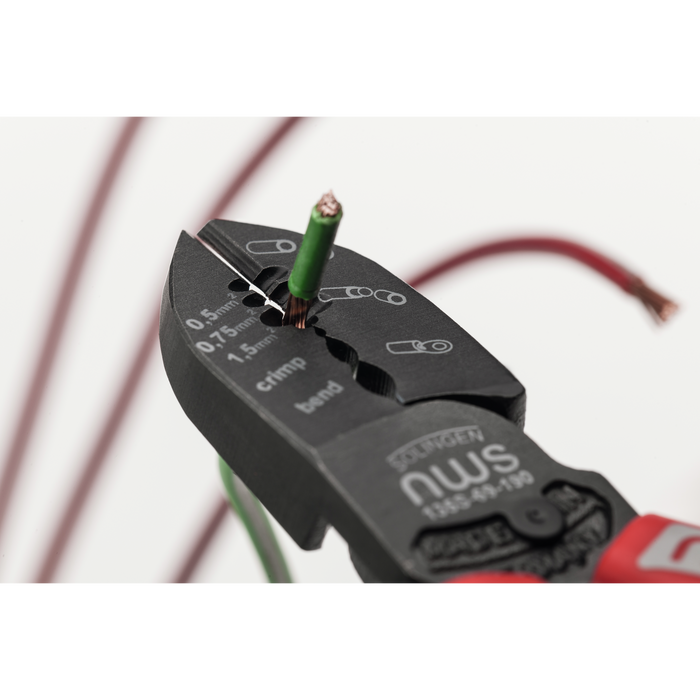

With stripping function for single and multi-stranded conductors with 0.5 mm² and 1.5 mm² conductor cross-section
0.5 mm² for CAN bus cable as Data cable for control units
0,75 mm² for power cables as Radio, horn, lights, etc.
1.5 mm² for power cables with higher current consumption, for example, vehicle sockets, cigarette lighter, and various cable trailers
-

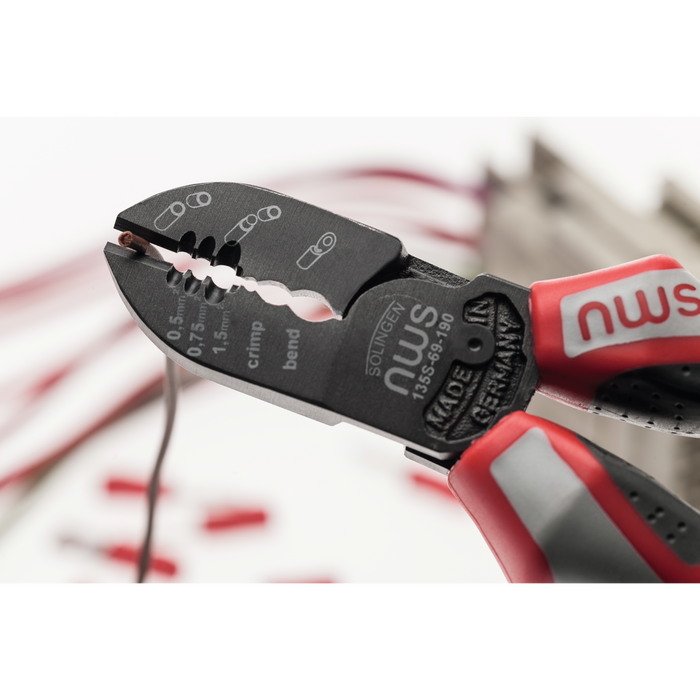

4 Functions: cutting - stripping - crimping - bending
-
For processing non-insulated crimp sleeves and plug connectors
-
For processing insulated crimp sleeves and plug connectors
-
Precision cutting edge for the finest wires
-
Cutting edges inductively hardened
-
Power transmission with optimum leverage for easy and effortless work
-
Handles with ergonomically shaped SoftGripp multi-component sleeves
-

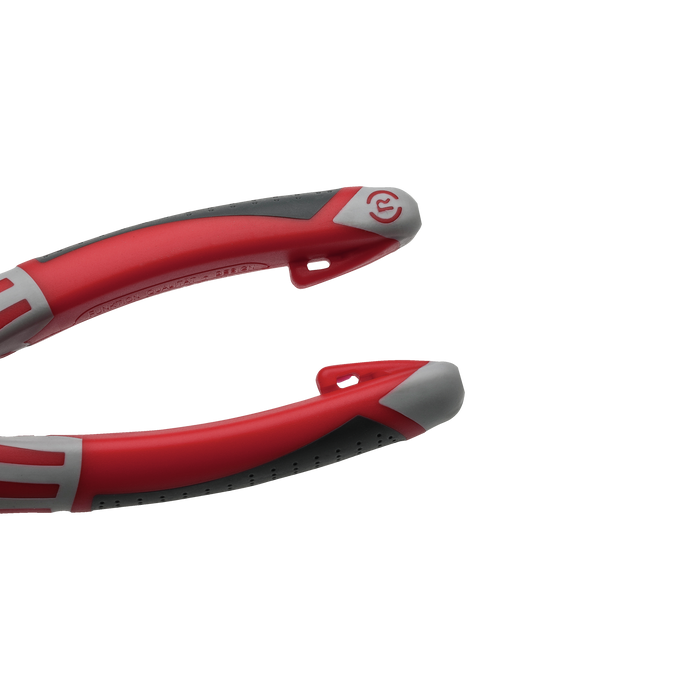

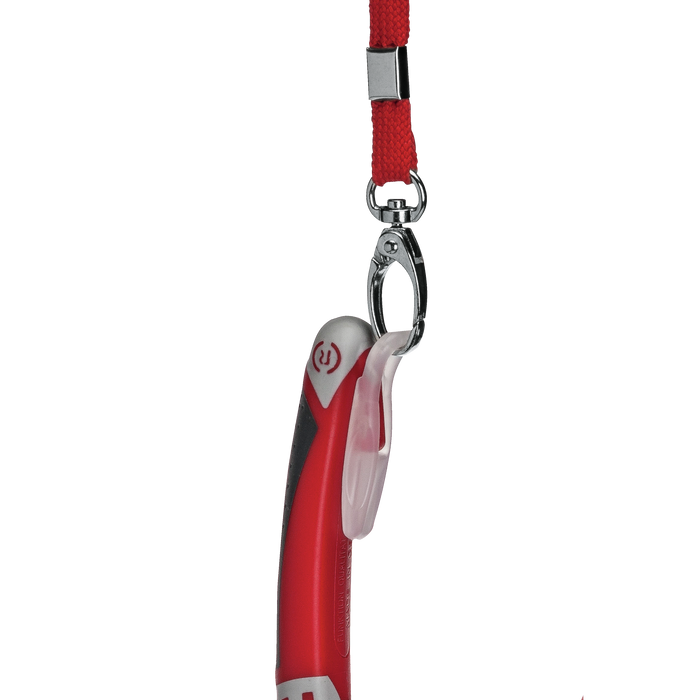

SoftGripp handles with SystemSocket for holding optionally available accessories, e.g. the easily attached SystemClip for fall protection
-
Made of special tool steel, forged, oil-hardened
Discover the NWS 135S-69-190-SB Universal Side Cutter at Mektronics Australia – your trusted source for quality tools and equipment!
| 135S-69-190-SB | ||
|---|---|---|
| Length - mm | 190 | |
| Length - in | 7 1/2 | |
| Cutting edge shape |  |
|
| Soft wire (220 N/mm²) copper, aluminium, plastic - cutting capacity - Ø mm | 2 | |
| Medium hard wire (750 N / mm²) nail, wire nail - cutting capacity - Ø mm | 1 | |
| Cable - Al + Cu multi-wired conductor single and stranded conductor - cutting capacity - Ø mm | 4 | |
| Stripping capacities - mm² | 0,5 + 0,75 + 1,5 | |
| Stripping capacities - AWG | 20 + 18 + 15 | |
| Weight - g | 260 | |
| Length including self-service packaging - mm | 255 | |
| Width including self-service packaging - mm | 65 | |
| Height including self-service packaging - mm | 25 | |
| Weight self-service packaging - g | 15 | |
| Barcode | 40 03758 63562 9 |
