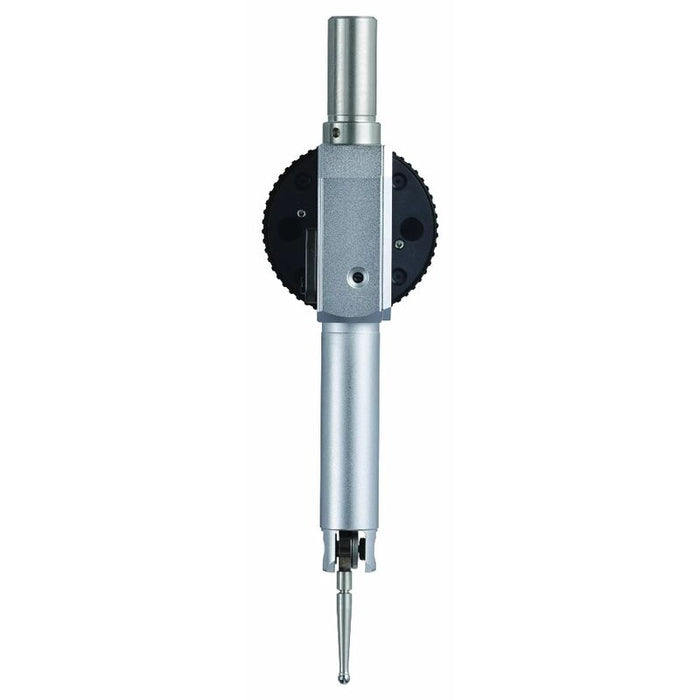

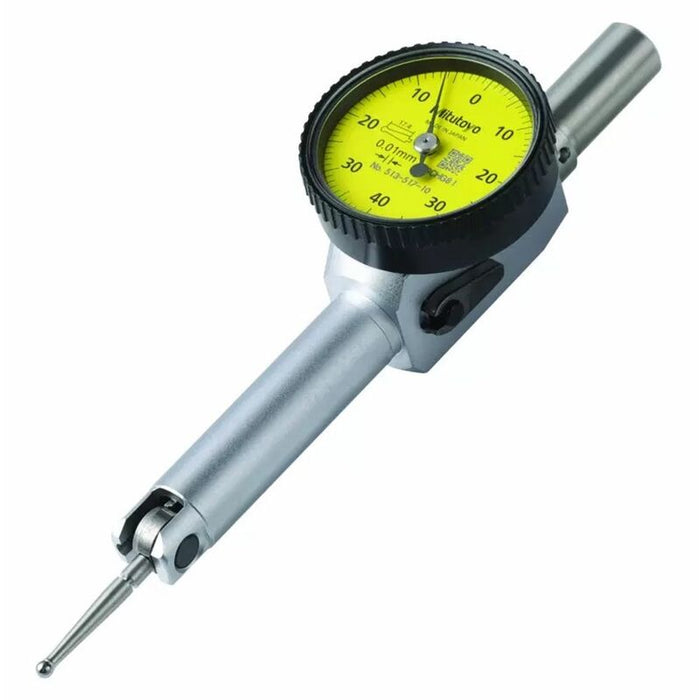

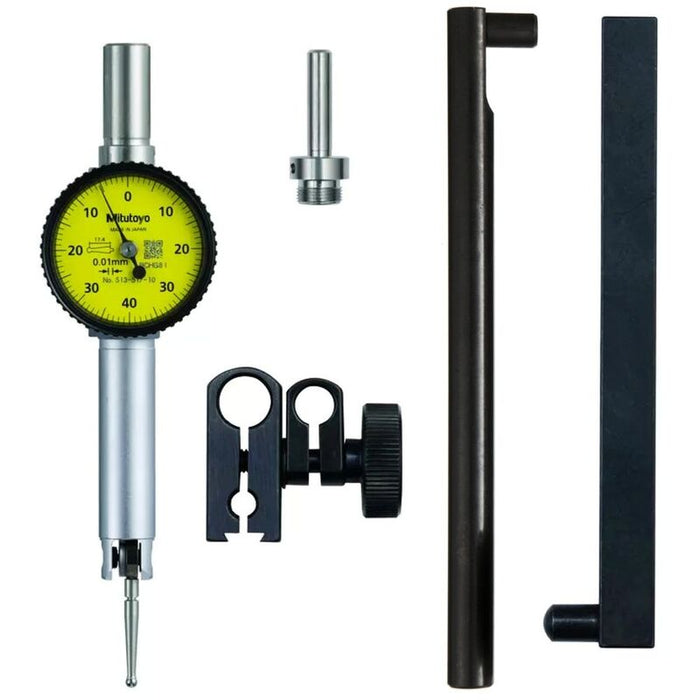

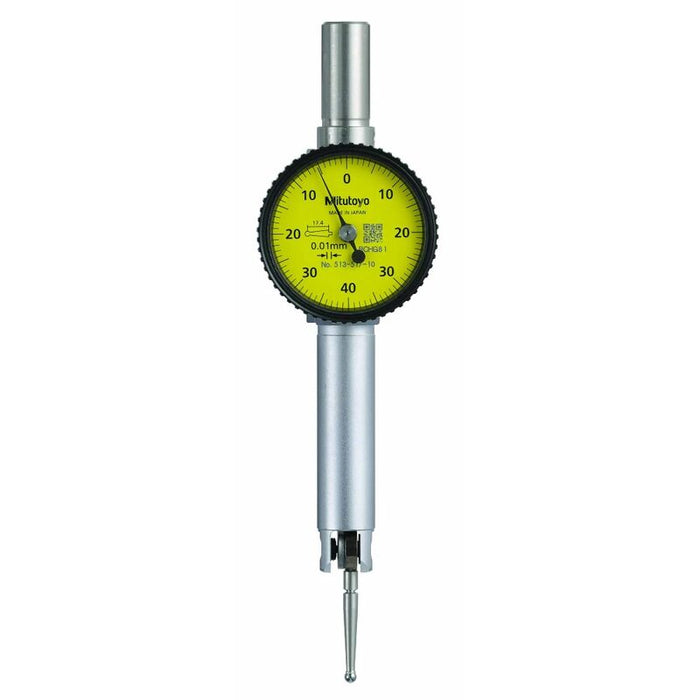

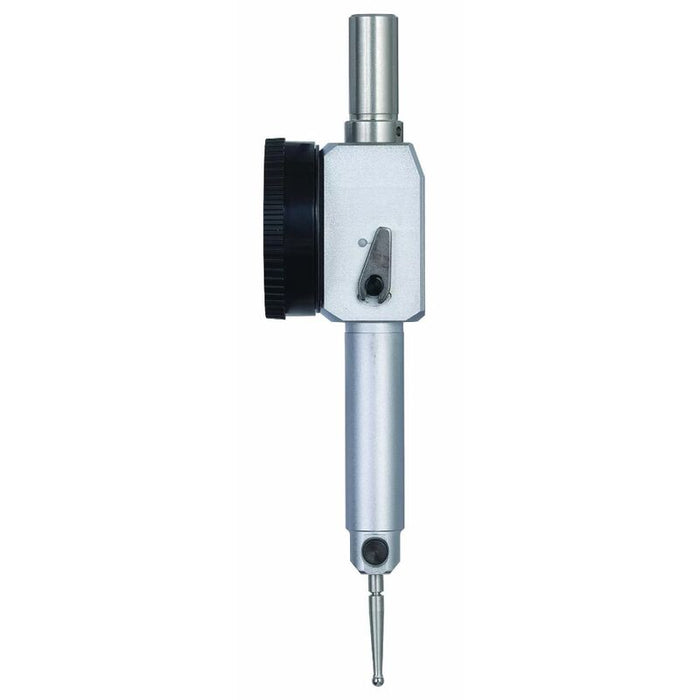

Mitutoyo Series 513 Pocket Type Dial Test Indicator 0.8mm Range 0.01mm Graduation 513-517-10T

• Indicator can be mounted by clamping the stem or the body.

• Outside bezel diameter of 29.2mm.

• Watertight bezel and crystal as well as the use of an o-ring prevents water or oil penetration.

• Stem and spindle are made of high strength quench hardened stainless steel.

• Carbide contact point.

• Jeweled crown gear bearing.

• Application of hard coating to surface of crystal makes the indicator highly scratch and chemical resistant.

• Reversible measuring direction (Clutch Type)

• Adjustable stylus angle (220°)

• Measuring Range: 0.8mm (0.8mm per revolution)

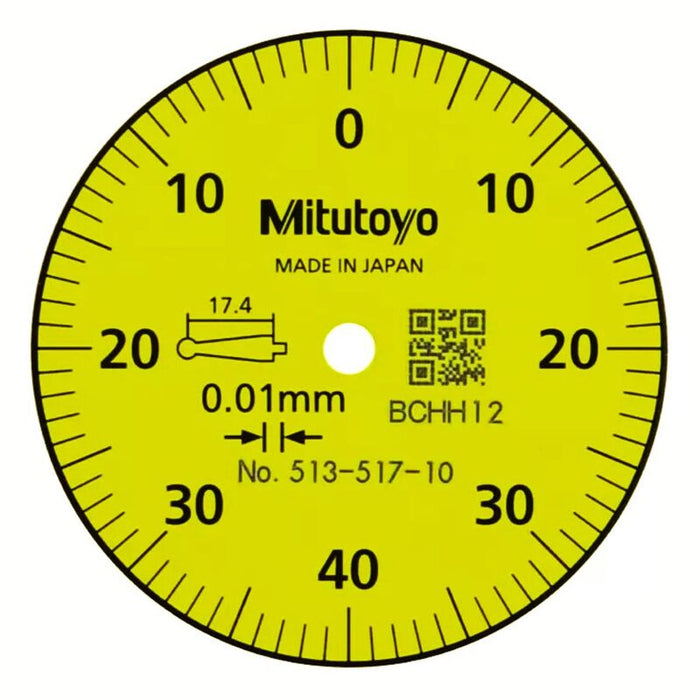

• Graduation: 0.01mm

• Accuracy: ±8µm

• Measuring Force: 0.3N or less

• Stylus Length: 17.4mm (20.9mm Tip to Pivot Point)

• Stylus Contact Point: Carbide 2mmØ
