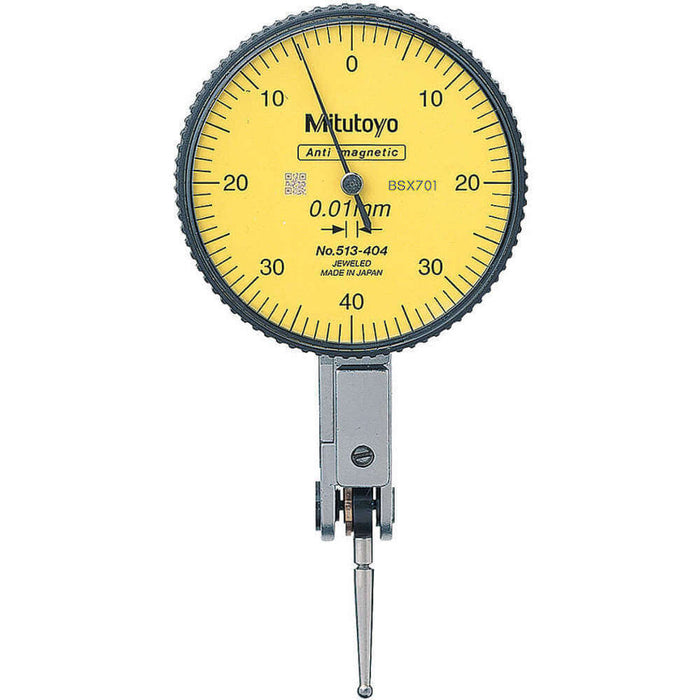

Mitutoyo Series 513 Dial Test Indicator Standard 0.8mm Range 0.01mm Graduation 513-404-10E
SKU: MIT513-404-10E
513-404-10E
DESCRIPTION
Features
Specifications
Shipping & Delivery
Mitutoyo Series 513 Dial Test Indicator Standard 0.8mm Range 0.01mm Graduation 513-404-10E
The Mitutoyo dial test indicator has a measurement range of 0.8mm. It is a horizontal lever type indicator that has various advanced features like attachable limit hands, longer stylus and ruby tip, setting it apart from the other test indicators. It is specially designed longer styli as compared to the earlier indicators to facilitate highly accurate measurement. It has a ruby tip that has a wear resistance several times greater than a carbide tip. As it is non-conductive, it can be used safely on an electrical discharge machine.
Discover the Mitutoyo Series 513 Dial Test Indicator Standard 0.8mm Range 0.01mm Graduation 513-404-10E at Mektronics Australia – your trusted source for quality tools and equipment!
-
Accuracy is 0.008mm
-
Resolution is 0.01mm
-
Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators
-
No-clutch structure for automatic reversal of measuring direction
-
Resistant to water and dust because of the one-piece bezel and O-ring seal for the crystal
-
Glare-free flat crystal face has a scratch-resistant coating
- High sensitivity and quick response due to low friction jewelled bearings
| Item | Dial Test Indicator |
|---|---|
| Accuracy | -0.008 mm to +0.008 mm |
| Bearing Type | Jeweled |
| Contact Point Dia. | 2 mm |
| Contact Point Material | Carbide |
| Contact Point Shape | Ball |
| Contact Point Style | Carbide |
| Dial Color | Yellow |
| Dial Reading | 0-40-0 |
| Dial Size | 40 mm |
| Dimension Type | Metric |
| Graduations | 0.01 mm |
| Included Certification | Inspection Certificate |
| Includes | 2 mm Carbide Point, 8 mm Stem, Clamp Ring, Test Indicator |
| Includes Case | Yes |
| Includes Dovetail Mount Attachments | No |
| Indicator Style | Horizontal |
|---|---|
| Long Form Calibration Certificate | No |
| Max. Measuring Force | 0.3N |
| Maximum Measurement - Mm | 0.8 mm |
| Minimum Measurement - Mm | 0 mm |
| Mounting Style | Dovetail |
| Non-conductive Tip | No |
| Non-magnetic Tip | Yes |
| Number Of Indicators | 1 |
| Operation Type | Lever Style |
| Range | 0 mm to 0.8 mm |
| Reading | Balanced |
| Standards | AGD |
| Stem Thread Size | M8 x 1 |
| Stylus Length | 20.9 mm |
| Test Indicator Style | Horizontal |
