Mitutoyo Series 137 Tubular Inside Micrometer 50-1500mm 0.01 Graduation 137-205

SKU: MIT137-205

137-205

$810.37

EX. GST
$891.41
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Specifications
Shipping & Delivery

Mitutoyo Series 137 Tubular Inside Micrometer 50-1500mm 0.01 Graduation 137-205

The Mitutoyo mechanical extension rod type tubular inside micrometer offers the ability to measure a wide range of inside dimensions with exact precision.

The Mitutoyo mechanical tubular inside micrometer includes a set of solid extension rods to measure a diversified range of inner dimensions of cylinders, rings and parallel surfaces with high accuracy. Slow head travel provides fine measurement position, while a locking clamp holds measurements in place for easier reading. The extension rods have knurled collars for easy, secure installation and removal.

Discover the Mitutoyo Series 137 Tubular Inside Micrometer 50-1500mm 0.01 Graduation 137-205 at Mektronics Australia – your trusted source for quality tools and equipment!

  • Available in Metric and Inch sets

  • Optional setting rings are available

  • Solid extension rod allows for measuring various dimensions with reliability and durability

  • Some models are available with carbide-tipped faces for better accuracy and wear resistance

  • Vernier scale on the sleeve offers exact measurements

  • Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading

  • Supplied in fitted plastic case; the 1500mm / 60″ model comes in a wooden case

Technology: Mechanical
Type: Extension rod
Units: Metric
Range: 50 - 1500mm
Graduation: 0.01mm
Spindle Feed Error: 3µm
Measuring Faces: Hardened Steel
Travel of Micrometer Head: 13mm

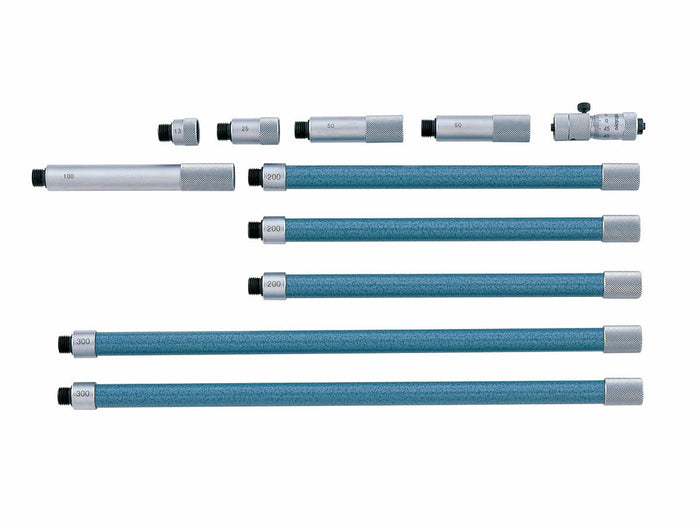

Extension Rods: 100, 13, 25, 50 (2pcs), 200 (3pcs), 300 (2pcs)
