Image for Illustrative Purposes Only
MG Chemicals Logo

Mg Chemicals Super Shield™ Silver Coated Copper Conductive Coating, 340G

SKU: MG843AR-340G

843AR-340G

$120.91

EX. GST
$133.00
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Usages
Specifications
Shipping & Delivery

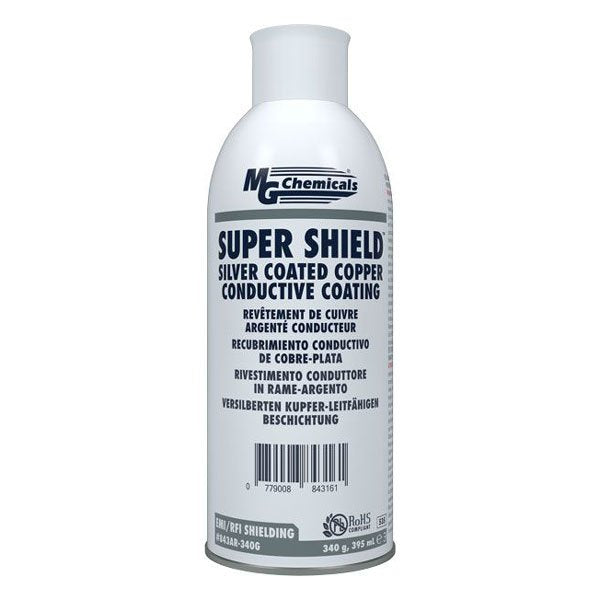

Mg Chemicals Super Shield™ Silver Coated Copper Conductive Coating, 340G

The 843AR Super Shield™ Silver Coated Copper Conductive Coating is a one-part durable acrylic lacquer pigmented with a highly conductive silver coated copper flake. It utilizes a ready to spray, solvent based system, with no heat cure necessary. The cured coating is smooth, hard, and abrasion resistant. It provides good adhesion to plastics, excellent conductivity, and high frequency shielding.

Discover the Mg Chemicals Super Shield™ Silver Coated Copper Conductive Coating, 340G at Mektronics Australia – your trusted source for quality tools and equipment!

  • UL Recognized (File # E202609)

  • Provides strong EMI/RFI shielding over a broad frequency range

  • Volume resistivity of 0.00047 Ω ·cm (Aerosol)

  • Volume resistivity of 0.00030 Ω ·cm (Liquid)

  • Smooth, durable, and abrasion resistant

  • Ready to spray system, no let down necessary

  • Available in aerosol format

  • Quick dry time, no heat cure required

  • Mild solvent system

  • Strong adhesion to acrylic, ABS, polycarbonate, and other injection molded plastics

  • Excellent adhesion to wood and ceramics

  • Low VOC; HAP Free; Does not contain toluene, xylene, or MEK

The 843AR is designed to provide a conductive coating to the interior of plastic electronic enclosures to suppress EMI/RFI emissions. It excels when superior levels of shielding are required.

The 843AR is commonly used by manufacturers of these devices:

  • Sensors

  • Controllers

  • Receivers

  • Test equipment

  • Scientific equipment

  • Medical equipment

  • Communication devices

  • Satellite dishes and radar systems

  • Antennas

  • Aerospace applications

  • Electric vehicles

  • Networking gear, firewalls

  • Military equipment

  • Cellphones, laptops, PDA's

  • GPS's, navigation systems

  • TV's, monitor's, and displays

  • Consumer electronics

  • Electronic sporting equipment

  • Audio equipment

  • Electric guitars and other amplified instruments

  • Drones and other RC vehicles

Other applications for 843AR include:

  • Repairing damage to existing shielding

  • Conductive undercoat for electroplating

  • Providing electric continuity for circuits

Catalog Number: 834AR-340G

Net Volume: 400ml (13.5 fl oz)

Net Weight: 340g (12 oz)

Packaging: Aerosol
