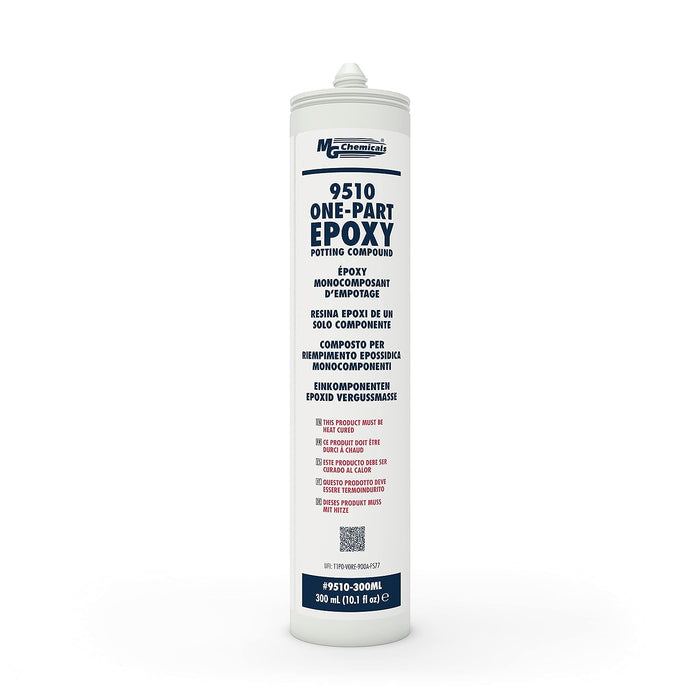

MG Chemicals One-Part Epoxy Potting Compound 300ml
SKU: MG9510-300ML
9510-300ML
DESCRIPTION
Features & Benefits
Specifications
Resources
Shipping & Delivery
MG Chemicals One-Part Epoxy Potting Compound 300ml
One-Part Epoxy Potting Compound 9510 is a black, rigid, one-part epoxy potting compound. It is a heat cure epoxy that provides unlimited working time at room temperature and does not require frozen storage.
Our 1-part epoxy resin provides an exceptional chemical resistance against a wide variety of mild to harsh chemicals, including toluene, acetone and ethyl acetate. It also provides excellent electrical insulation and protects against static discharge, vibration, thermal shock, environmental humidity, salt water, fungus, and many harsh chemicals.
This 1-part epoxy has a low viscosity and can easily penetrate small gaps and cavities. 9510 can be readily used in manual, pneumatic and robotic dispensing processes.
For general purpose black 2-part epoxies, consider MG’s 832B and 832HD. We also offer flexible, thermal and high temperature epoxy potting compounds.
Our 2-part flame-retardant epoxy potting compounds are 834B, 834HTC and 834FX.
We also offer polyurethane and silicone potting compounds. 12 month shelf life at room temperature
Discover the MG Chemicals One-Part Epoxy Potting Compound 300ml at Mektronics Australia – your trusted source for quality tools and equipment!
-
Minimum cure temperature of 80 °C [176 °F]
-
Ready to dispense—no mixing is required
-
Low viscosity of 4 800 cP
-
Excellent chemical resistance
-
Broad service temperature of-65 to 150 °C [-85 to 302 °F]
-
Excellent adhesion to a wide variety of substrates, including metals, composites, glass, ceramics, and many plastics
-
Extremely high tensile and compressive strength
-
Excellent electrical insulating characteristics
-
Extreme resistance to water and humidity (allows for submersion where needed)
-
Solvent-free
-
Resistivity 2.6 x 1013 Ω·cm
-
Breakdown Voltage 36 700 V
-
Dielectric Strength 540 V/mil
-
Hardness 84 D
-
Tensile Strength 20 N/mm2
-
Compressive Strength 90 N/mm2
-
Lap Shear (stainless steel) 9.2 N/mm2
-
(aluminum) 5.8 N/mm2
-
Glass Transition Temperature (Tg) 70 ˚C
-
CTE Prior Tg 74 ppm/˚C
-
CTE After Tg 217 ppm/˚C
-
Thermal Conductivity @ 25 ˚C 0.3 W/(m·K)
-
Service Temperature Range -65–150 ˚C
-
Intermittent Temperature 295 ˚C
-
Net Volume: 300ml
-
Net Weight: 336g
-
Packaging: Cartridge
