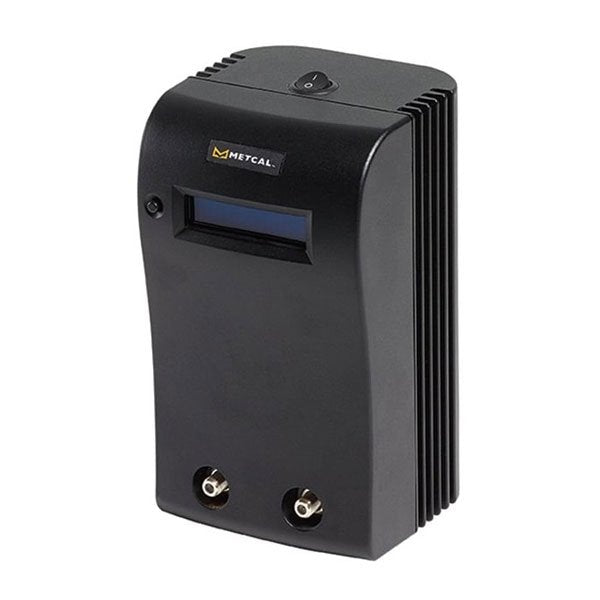

Metcal Two Port Switchable Power Supply 100-240 VAC VAC MX-500P
SKU: METMX-500P
MX-500P
DESCRIPTION
Contents
Specifications
Shipping & Delivery
Metcal Two Port Switchable Power Supply 100-240 VAC VAC MX-500P
-
A built in Net Power Meter displays a graphical and numerical representation of the power applied to the cartridge.
-
User Programmable Power Save Mode: the time to enter Power Save Mode is adjustable from 10 to 120 minutes.
-
Ground Fault Interrupt: AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system.
-
Universal Power Supply: automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance.
-
Full compatibility with existing and previous MX upgrade kits, tip-cartridges, hand-pieces and accessories.
Discover the Metcal Two Port Switchable Power Supply 100-240 VAC VAC MX-500P at Mektronics Australia – your trusted source for quality tools and equipment!
- MX-PS500 Power Supply
| Input Line Voltage: | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption: | 70 W max. |
| Output Power: | Variable, 40 W max.* |
| Output Frequency: | 13.56 MHz |
| Heating Method: | Induction, SmartHeat® |
| Connections: | Dual Port, switchable |
| Power Supply Dim. W x D x H: | 121 x 121 x 220 mm (4.8" x 4.8" x 8.7") |
| Power Supply Weight: | 2.65 kg (5.8 lb) |
| Certification / Marking: | cTUVus, CE |
| Tip-to- Ground Potential: | < 2 mV |
| Tip-to-Ground Resistance: | < 2 Ohm |
| Ground Detection: | Permanent |
| Surface Resistivity: | 105 - 109 Ohm |
| Idle Temperature Stability: | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy: | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 4 years |
| Ambient Operating Temp: | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp: | 55 °C (131 °F) |
